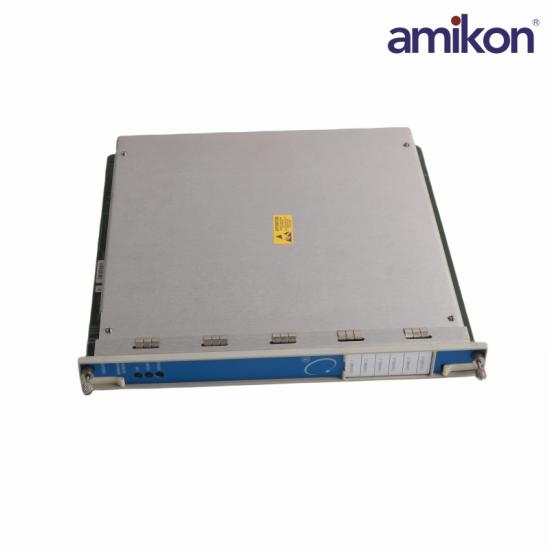

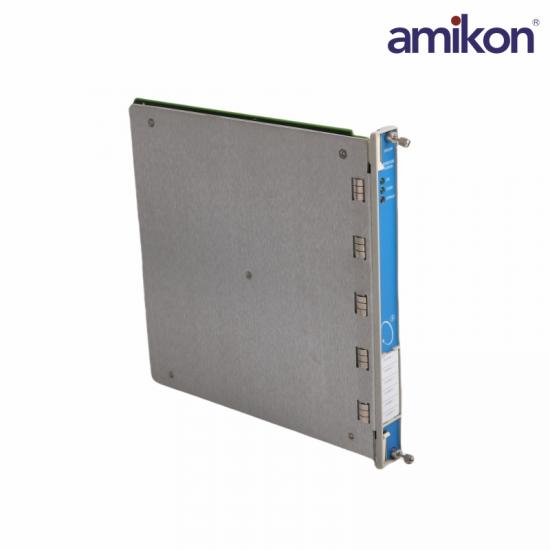

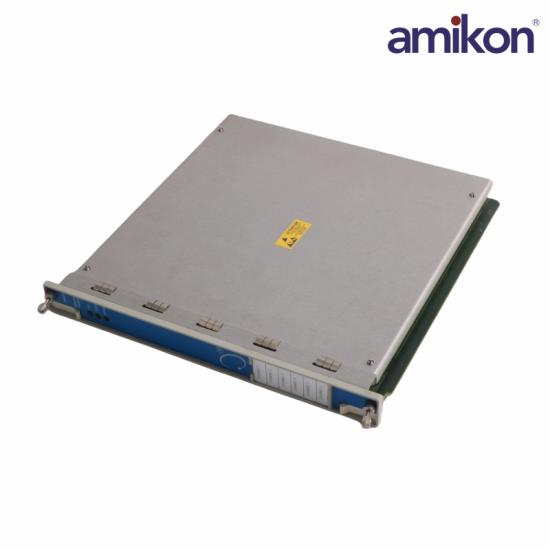

The 3500/60 & 61 modules provide six channels oftemperature monitoring and accept both ResistanceTemperature Detector (RTD) and Thermocouple (TC)temperature inputs. The modules condition these inputs andcompare them against user-programmable alarm setpoints.The 3500/60 and 3500/61 provide identical functionalityexcept that the 3500/61 provides recorder outputs for each ofits six channels while the 3500/60 does not.

The user programs the modules to perform either RTD or TCtemperature measurements using the 3500 RackConfiguration Software. Different I/O modules are available inRTD/TC non-isolated or TC isolated versions. The user canconfigure the RTD/TC non-isolated version to accept either TCor RTD, or a mixture of TC and RTD inputs. The TC isolatedversion provides 250 Vdc of channel-to-channel isolation toprotect against external interference.

Frequently Asked Questions

1: What is the Bently Nevada 3500/60 163179-01 used for?

A: This module is a temperature monitoring unit in the 3500 Series Machinery Protection System, used to measure and monitor bearing temperature, process temperature, and equipment health.

Q2: What is the 3500/60 163179-01 power supply requirement?

A: It operates on 24 VDC, which is standard for industrial control and monitoring systems.

Q3: What is the 3500/60 163179-01 input voltage range?

A: The 3500/60 163179-01 module supports an input voltage range of -10V to +10V, allowing compatibility with various temperature signal transmitters and sensors.

Q4: What is the 3500/60 163179-01 operating temperature range?

A: The unit operates within -40°C to +85°C, making it ideal for harsh industrial environments.

Product Applications

Electric power industry: Used for temperature monitoring of bearings and windings in steam turbines, gas turbines, generators, and coal mills.

Petroleum and chemical industry: Monitors the operating status of centrifugal compressors, reciprocating compressors, and large pump sets to prevent fires or explosions caused by abnormal temperatures.

Metallurgy and steel industry: Applied to vibration and temperature comprehensive monitoring of blowers, large fans, and gearboxes.

Nuclear power plant: As part of the digital upgrade, used for front-end control and high-reliability protection.
