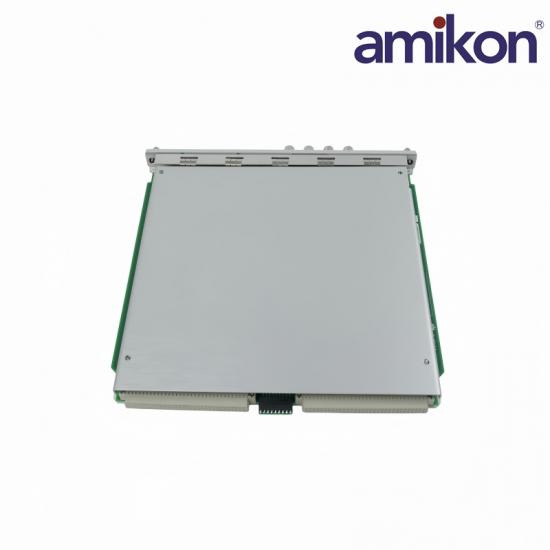

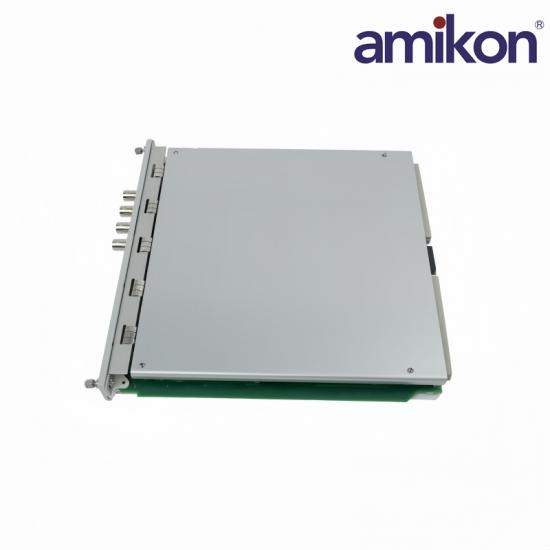

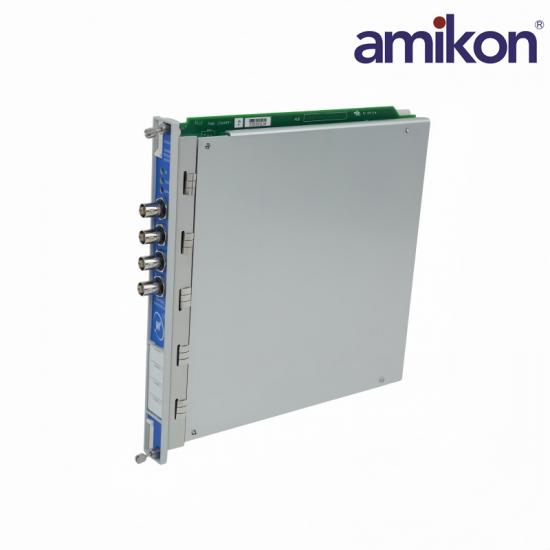

Bently Nevada 3500/64M 176449-05 Dynamic Pressure Monitor

3500/64M 176449-05
3500/64M 176449-05
3500/64M 176449-05

Bently Nevada 3500/64M 176449-05 Dynamic Pressure Monitor

✉  INQUIRE NOW

BENTLY NEVADA · INDUSTRIAL AUTOMATION

3500/64M 176449-05

Four-channel dynamic pressure monitor

MANUFACTURERBently Nevada
MODEL3500/64M 176449-05
PART NUMBER3500/64M 176449-05
PRODUCT TYPEFour-channel dynamic pressure monitor
SYSTEM FAMILY3500 Machinery Protection System
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    3500/64M 176449-05
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    Bently Nevada
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    12 Months

BENTLY NEVADA PRESSURE MONITORING

3500/64M 176449-05

Price and Availability Inquiry

The 3500/64M 176449-05 is a single-slot, four-channel dynamic pressure monitor for high-temperature pressure transducers, bandpass pressure measurement and configurable alarm protection.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 3500/64M 176449-05 and required quantity in your inquiry.

3500/64M 176449-05 PRODUCT DATA

Technical Specifications

Official input, filtering, output and physical data for 3500/64M 176449-05.

01Product IdentityOfficial product data
MANUFACTURERBently Nevada
ORDER NUMBER3500/64M 176449-05
SPARE PART NUMBER176449-05
PRODUCT TYPEFour-channel dynamic pressure monitor
02Input & MeasurementOfficial product data
INPUT CHANNELS1 to 4 pressure-transducer signals
SENSITIVITY100 mV/psi (1.45 mV/mbar)
INPUT IMPEDANCE3-wire: 10 kΩ
MEASURED VARIABLEBandpass dynamic pressure
03Signal ProcessingOfficial product data
LOW FILTER MODE5 Hz to 4 kHz
HIGH FILTER MODE10 Hz to 14.75 kHz
LINE-REJECTION FILTER50 or 60 Hz
ALARM LEVELSConfigurable Alert and Danger
04Outputs & PhysicalOfficial product data
RECORDER OUTPUTS4–20 mA, one per channel
BUFFERED OUTPUTSFront coaxial; short-circuit protected
MODULE DIMENSIONS241.3 × 24.4 × 241.8 mm
MODULE WEIGHT0.82 kg (1.8 lb)

Bently Nevada 3500/64M 176449-05 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 3500/64M 176449-05.

01

How many pressure signals can the 3500/64M accept?

The monitor accepts from one to four pressure-transducer signals in a single rack slot.

02

Which measured variable is generated for each channel?

Each configured channel produces bandpass dynamic pressure for alarm and monitoring functions.

03

How are filter ranges selected?

Low mode covers 5 Hz to 4 kHz and high mode covers 10 Hz to 14.75 kHz; channel pairs share the selected filtering mode.

04

Can line-frequency interference be rejected?

Yes. The configurable line-rejection filter can be set for 50 Hz or 60 Hz operation.

05

Which outputs are available for external systems?

The monitor provides individual 4–20 mA recorder outputs and a short-circuit-protected buffered coaxial output for each channel.

06

How should part number 176449-05 be ordered?

Specify the complete identity 3500/64M 176449-05 because 176449-05 is the published spare monitor part number.

07

Which installation checks should precede commissioning?

Verify rack slot, matching I/O module, transducer wiring, filter mode, full-scale range and Alert/Danger settings.
