Brand: Bently Nevada

Model:9200-03-01-10-00

Type: Two-wire Transducer

Transducer Mounting Angle/Minimum Operating Frequency Option : 0 3 - 90 ±2.5, 4.5 Hz (270 cpm)

Connector Option : 0 1 - Top Mount

Mounting Base Option : 1 0 - Circular; M10X1 stud

Agency Approval Option : 0 0 - Not required

Sensitivity: 20mV/mm/s(500 mV/in/s),±5%

Calibration load: 10 k2

Sensitivity temperature coefficient: 0.2%/°C

Frequency response:4.5 Hzto1kHz(+0,-3dB typical)

Dynamic operating range: 2.54 mm peak-to-peak maximum displacement

Coil resistance: 1.25 k2±5%

Locked coil inductance:125 mH typical

Amplitude linearity:±5% from 0.01to 5.0in/s at 100Hz

Operating temperature:-29°C to +121°C(-20°F to +250°F)

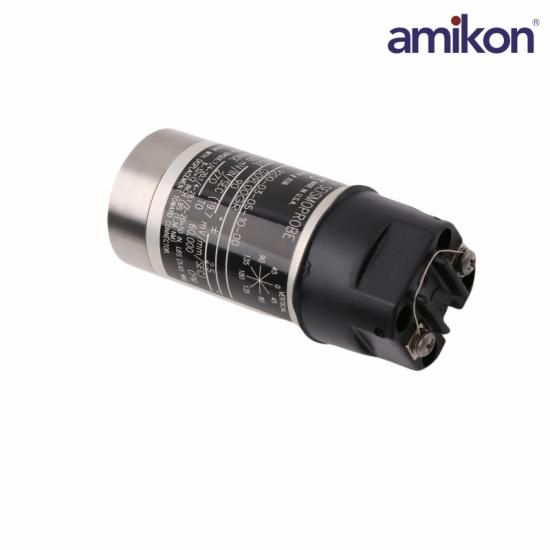

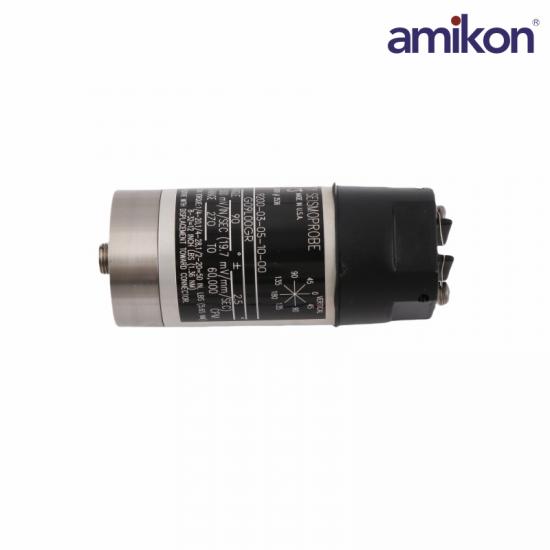

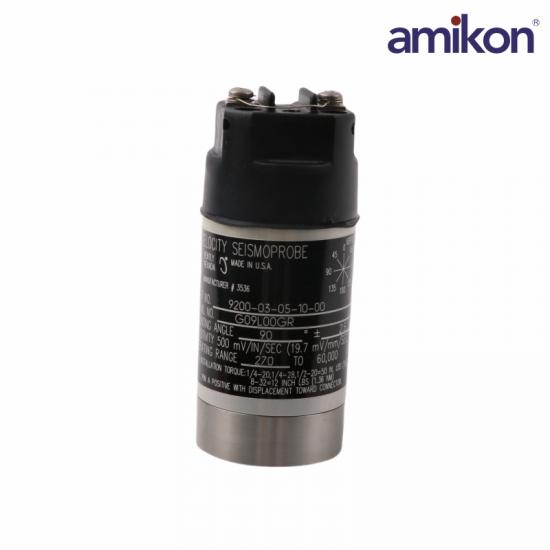

The 9200-03-01-10-00 is a two-wire moving-coil velocity seismoprobe transducer manufactured by Bently Nevada. It is widely used in industrial machinery to continuously measure absolute casing vibration.

Bently Nevada Seismoprobe Velocity Transducer Systems aredesigned to measure absolute (relative to free space)bearing housing, casing, or structural vibration. The two-wiresystems consist of a transducer and appropriate cable.

The Seismoprobe family of velocity transducers is a two-wiredesign that uses moving-coil technology. It provides avoltage output directly proportional to the transducer's vibration velocity.

Moving-coil transducers are less sensitive to impact orimpulsive excitation than solid-state velocity transducers,which are inherently accelerometers with embeddedintegration electronics.

Frequently Asked Questions

Q1: What is the Bently Nevada 9200-03-01-10-00 used for?

A1: It is used for vibration measurement and condition monitoring of rotating machinery.

Q2: What is the 9200-03-01-10-00 sensitivity of the transducer?

A2: The 9200-03-01-10-00 sensitivity is 20 mV/mm/s (500 mV/in/s) ±5%.

Q3: What is the 9200-03-01-10-00 calibration load requirement?

A3: The 9200-03-01-10-00 calibration load is 10 kΩ.

Q4: What is the 9200-03-01-10-00 sensitivity temperature coefficient?

A4: The 9200-03-01-10-00 sensitivity temperature coefficient is 0.2%/°C.

Q5: What is the frequency response range of the 9200-03-01-10-00 transducer?

A5: The 9200-03-01-10-00 frequency response is 4.5 Hz to 1 kHz (+0, -3 dB typical).

Product Applications

Petrochemical & Oil/Gas: Used for monitoring various high-value compressors, turboexpanders, and pumps.

Power Generation: Provides critical vibration protection in steam turbines, water turbines, and generator sets.

Heavy Industry Manufacturing (Steel, Metallurgy): Widely covers steel smelting facilities, large blowers, and motors.

Chemicals: Used for long-term condition monitoring of air separation units, various large fans, and gearboxes.
