model: 990-04-XX-02-05 MOD:167577-05

Frequency Response: 5 Hz to 6,000 Hz (+0, −3 dB)

Minimum Target Size: 9.5 mm (0.375 in) diameter

Proximity Output Incremental Scale Factor: 7.87 mV/µm (200 mV/mil) ±6.5%

Proximity Output Linear Range: 1.4 mm (55 mils)

Maximum Loop Resistance: 1,000 Ω including cable at 35 VDC

Current Limiting: 23 mA typical

Power Requirements: +12 VDC to +35 VDC

Operating Temperature: −35 °C to +85 °C (−31 °F to +185 °F)

Storage Temperature: −52 °C to +100 °C (−62 °F to +212 °F)

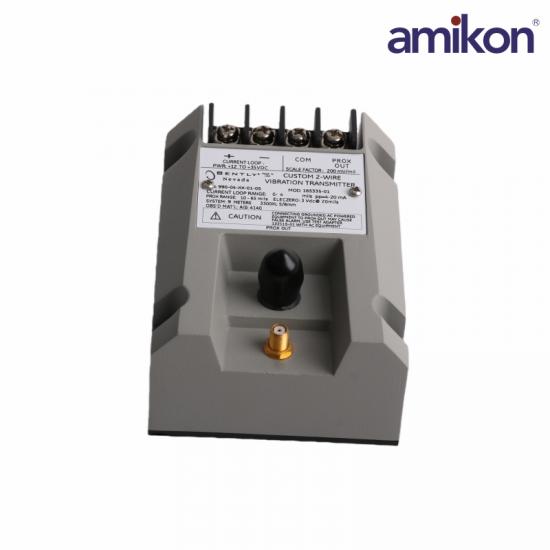

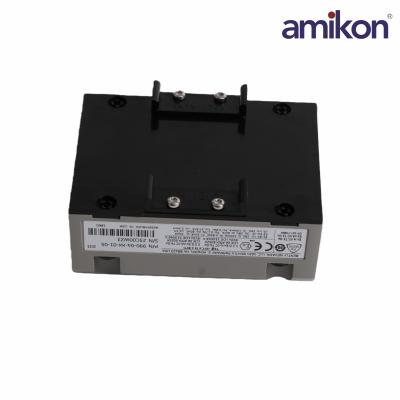

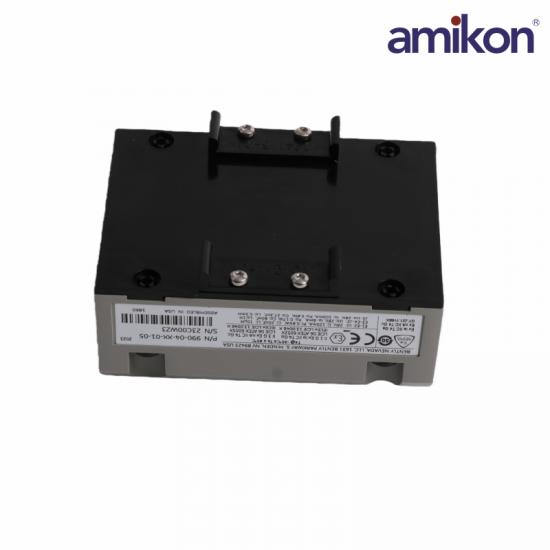

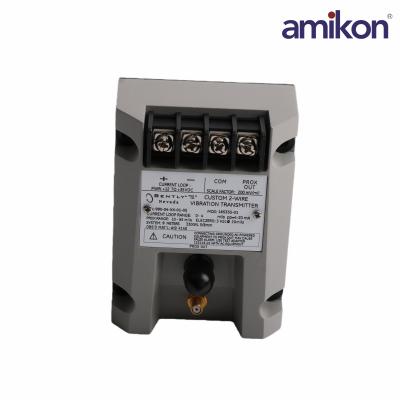

The 990 Vibration Transmitter is intended primarily for theoriginal equipment manufacturers (OEMs)of centrifugal aircompressors or small pumps, motors, or fans who prefer toprovide a simple 4 to 20 mA proportional vibration signal asthe input to their machinery control system.

The transmitter is a two-wire, loop-powered device thataccepts input from our 3300 NSv proximity probe and itsmatching extension cable (available in 5 m and 7m system length options).

Frequently asked questions：

Q:Is this product brand new?

A:Yes, 990-04-XX-02-05 MOD:167577-05 is brand new, original, unused, and factory sealed

Q: What sensors can it work with?

A: It is 990-04-XX-02-05 MOD:167577-05 compatible with eddy‑current proximity probes (e.g., 3300 series probes).

Q: What power supply does it need?

A: The transmitter requires a +12 VDC to +35 VDC loop‑powered supply.

Q: What is 990-04-XX-02-05 MOD:167577-05 its frequency response?

A: It covers 5 Hz to 6,000 Hz (+0, −3 dB), suitable for most industrial vibration monitoring applications.

Q: What output range does it provide?

A: It delivers a 4–20 mA output proportional to vibration amplitude.
