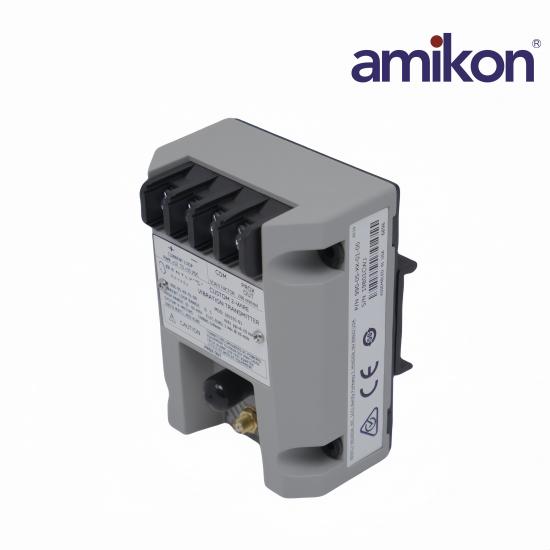

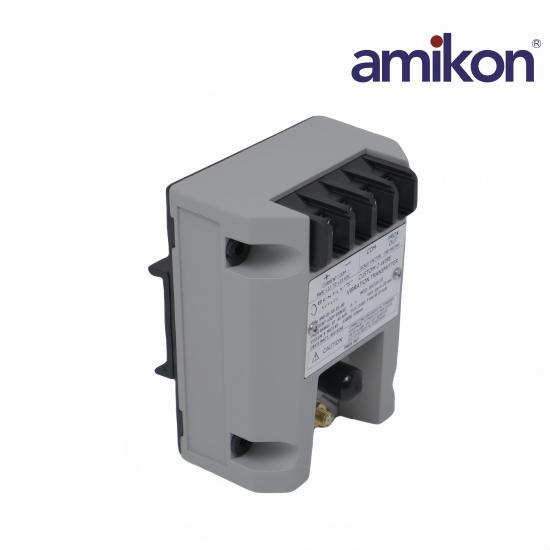

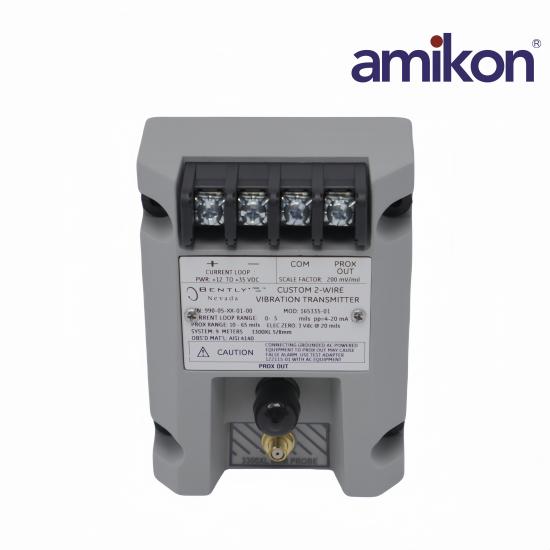

Manufacturer: Bently Nevada

Product Number: 990-05-XX-01-00 MOD:147202-01

Product Type: Vibration Transmitter

Mounting Option : 35 mm DIN rail clips

Full-scale Option：0-5 mils pp (0-125 μm pp)

Agency Approval Option : Not required

Operating Temperature Range:- 40°F to +185°F (-40°C to +85°C)

Accuracy: +/- 0.5% of full scale

Frequency Response: 1 Hz to 10 kHz

Power Consumption: 2 W max

Operating Pressure Range: Up to 500 psi (34 bar)

Protection Rating: IP67

The Bently-Nevada 990-05-XX-01-00 MOD 147202-01 Vibration Transmitter is engineered for precision and reliability, ensuring continuous and accurate monitoring of machinery vibrations.  Crafted with advanced materials for high-temperature resistance, this transmitter can withstand harsh industrial environments without compromising performance. Featuring a non-contact installation method, it provides a safe and efficient solution for monitoring equipment health without the need for physical contact, reducing the risk of damage or downtime. With a sensing range of 2mm and sensitivity of 1um, it detects even the slightest changes in vibration patterns, enabling timely maintenance interventions to prevent catastrophic failures. Equipped with an injection-molded package/casing and a gold connector termination type, this transmitter ensures durability and compatibility with various industrial interfaces. Designed for steam turbine applications, it plays a critical role in maintaining operational efficiency and safety by providing real-time data on vibration levels, thus supporting proactive maintenance strategies. The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options). The transmitter conditions the signal into appropriate peakto-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery protection alarming and logic occur-st.
