Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooManufacturer: Bently Nevada
Mfr. Part Number:990-08-XX-02-05

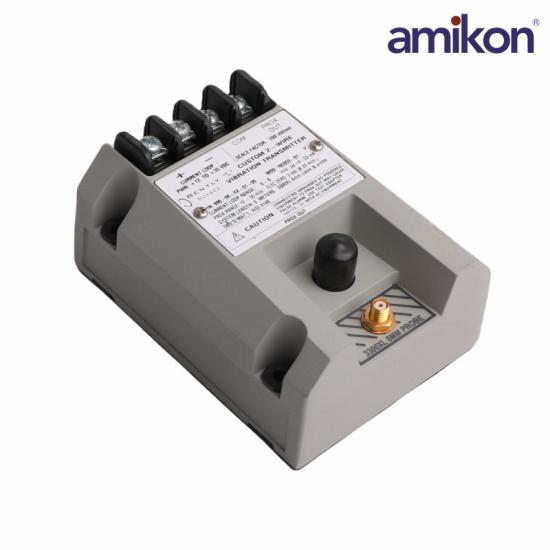

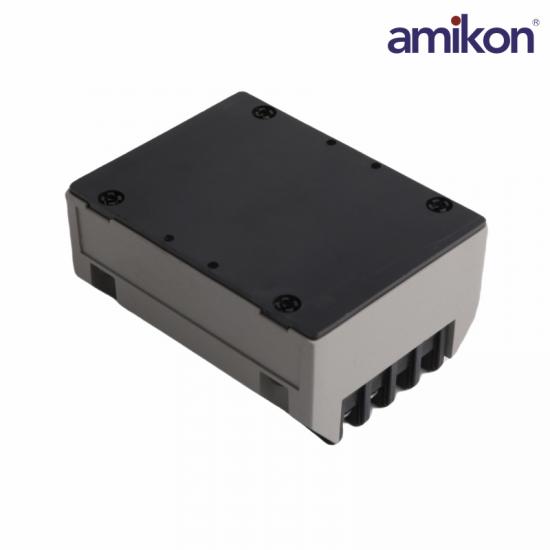

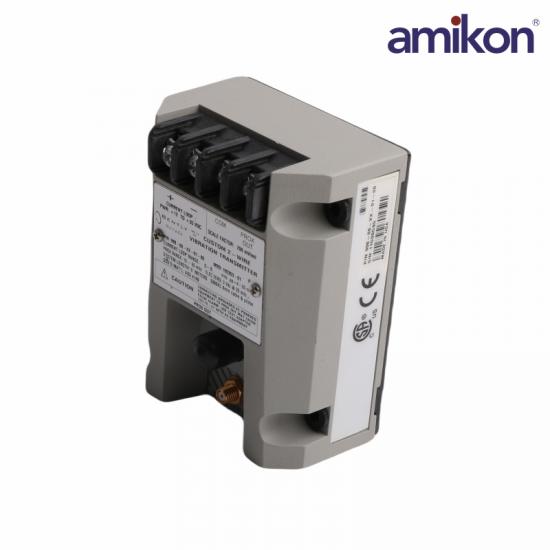

Product Type: Vibration Transmitter
Transducer Tip Material: Polyphenylene sulfide (PPS)
Transducer Case Material: AISI 303 or 304 Stainless Steel (SST)
Probe Cable: 75Ω coaxial, fluoroethylene propylene (FEP) insulated
Cable Armor (Optional): Flexible AISI 302 SST with optional FEP outer jacket
Tensile Strength: 222 N (50 lbf) probe case to probe lead, maximum
Transmitter Weight: 0.43 kg (0.9 lbm)
Total System Weight: 0.82 kg (1.8 lbm) typical
Operating Temperature: -35°C to +85°C (-31°F to +185°F)
Storage Temperature: -52°C to +100°C (-62°F to +212°F)
The 990 Vibration Transmitter is designed for original equipment manufacturers (OEMs) of centrifugal air compressors, small pumps, motors, or fans. It provides a simple 4 to 20 mA proportional vibration signal as input to machinery control systems for monitoring and alarming.
Key Features:
Two-wire, loop-powered device: Accepts input from the 3300 NSv proximity probe and its matching extension cable (5 m and 7 m options).
Signal conditioning: Converts vibration amplitude into peak-to-peak engineering units and outputs as a 4 to 20 mA signal.
Integrated Proximitor Sensor: No need for an external sensor unit.
Diagnostic capabilities: Provides dynamic vibration and gap voltage signal output through non-isolated terminals and coaxial connectors.
Adjustable settings: Zero and span potentiometers for loop adjustments.
Quick verification: Test input pin for loop signal output verification using a function generator.
Signal protection: Not OK/Signal Defeat circuit prevents false alarms or high outputs from faulty probes or connections.
Mounting flexibility: Includes DIN-rail clips or bulkhead mounting screws.
