Product No. |
991-06-70-03-01 |
|
Full-scale Option ( 06) |
0.6-0-0.6 mm |
|
System Length Option ( 70) |
7.0 meters (23.0 feet) |
|
Mounting Option ( 03) |
DIN clips and screws |
|
Agency Approval ( 01) |
CSA Division 2 |
|
Power Supply |
+12–35 Vdc (2-wire) |
|
Accuracy |
±1.5% of full scale |
|
Operating Temperature |
-35°C to +85°C (-31°F to +185°F) |
|
Shock Survival |
50 g, 11 ms (IEC 60068-2-27) |
|
Signal Recovery |
0.1 sec after fault clear |
|
Maximum Cable Loop Resistance |
1,000 Ω @ 35 Vdc |
|
Measurement Range (Prox Out) |
0.25–1.65 mm |
|
Frequency Response |
10 Hz to 1 kHz (±3 dB) |

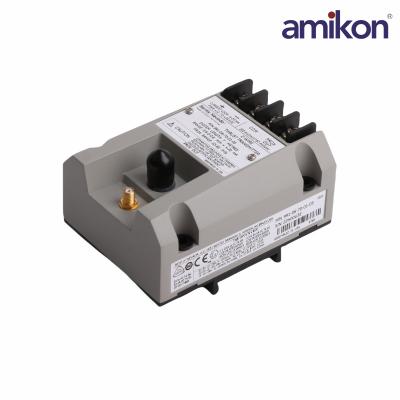

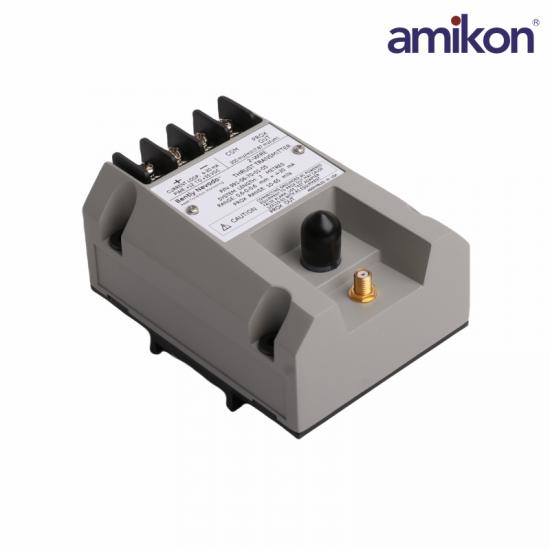

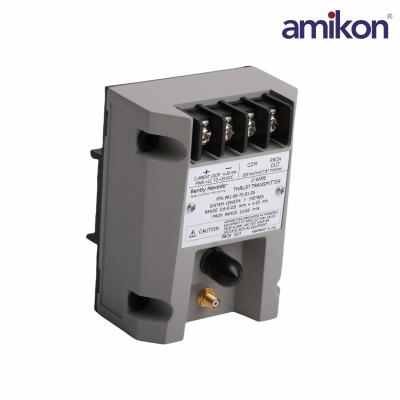

The 99l Thrust Transmitter is intended primarily for theoriginal equipment manufacturers (OEMs) of centrifugal aircompressors or small pumps, motors, or fans who prefer toprovide a simple 4 to 20 mA proportional axial displace ment(thrust) signal as the input to their machinery control system.The transmitter is a 2-wire, loop-powered device thataccepts input from our 3300 NSv proximity probe and itsmatching extension cable (available in 5 m and 7 m systemlength options). The transmitter conditions the signal intoappropriate engineering units proportional to the shaft's axialpositionl, and provides it as a 4 to 20 mA industry-standardsignal for input to the control system where machineryprotection alarming and logic occurs2.
Frequently Asked Questions
What is the primary function of the 991-06-70-03-01?
It measures the axial displacement (thrust position) of a rotating machine shaft to prevent catastrophic thrust bearing failure.
What does the "-06" signify in this part number?
It indicates a full-scale measurement range of ±0.6 mm
What does the "-70" option mean?
The transmitter is factory-calibrated for a total system cable length of 7.0 meters
What is the standard loop power voltage required?
The transmitter operates on a 2-wire loop requiring a supply voltage between +12 VDC and +35 VDC.
Product Applications
Oil & Gas: Long-distance pipeline pressurization stations, refineries, liquefied natural gas (LNG) and processing plants.
Chemical & Petrochemical: Large-scale gas circulation and compression stages in large-scale chemical plants such as ethylene, synthetic ammonia, and methanol plants.
Power Generation: Thermal power plants, thermal blast furnace waste heat power generation (TRT), industrial self-supplied power plants, and water supply systems.
Air Separation & Metallurgy: Blast furnace blast furnace blowers in large steel plants, and air separation units in chemical plants.
Machinery Manufacturing: Original equipment manufacturer (OEM) products for rotating machinery.
