Manufacturer : Bently Nevada

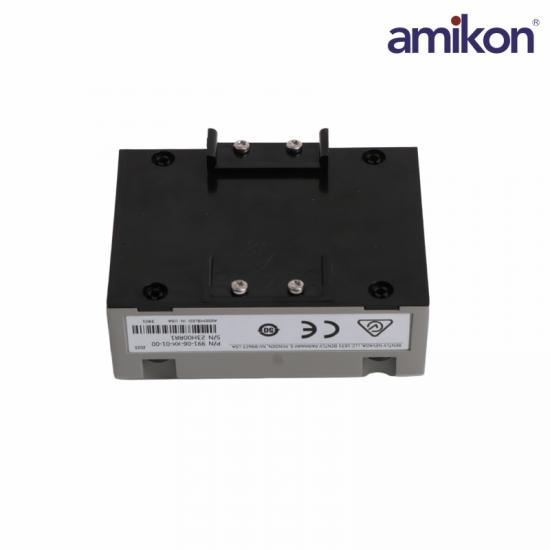

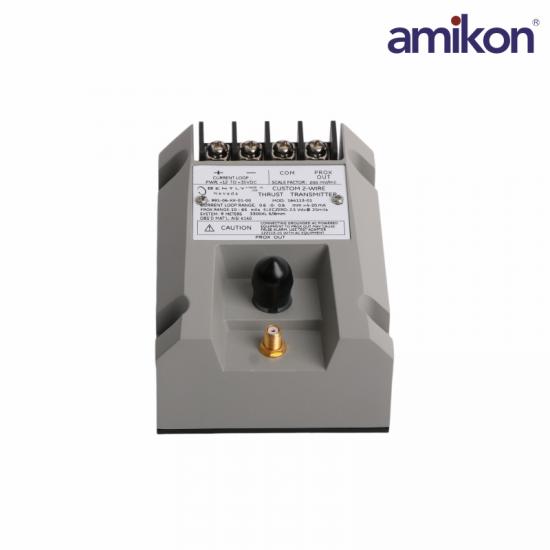

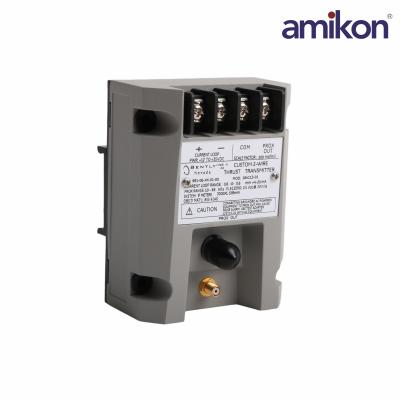

Product No. : 991-06-XX-01-05 MOD:164113-01

Input Signal: Compatible with 3300 NSv proximity probe & extension cable

Output Signal: 4-20 mA proportional to thrust position

Dynamic Output: Non-isolated buffered signal via BNC & terminals

Power Supply: 18-30 VDC (loop-powered)

Accuracy: ±0.15% of full scale

Adjustments: External zero & span potentiometers

OperatingTemperature:-40°C to +85°C(-40°F to +185°F)

Housing: IP65-rated, rugged industrial design

Mounting: DIN rail or panel mount options

Weight: 0.43 kg

The 991 Thrust Transmitter is intended primarily for the original equipment manufacturers (OEMs) ofcentrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mAproportional axial displacement (thrust) signal as the input to their machinery control system. Thetransmitter is a 2-wire, loop-powered device that accepts input from our 3300 NSvt proximity probe and itsmatching extension cable (available in 5 m and 7 m system length options). The transmitter conditions thesignal into appropriate engineering units proportional to the shaft's axial position1, and provides it as a 4 to20 mA industry-standard signal for input to the control system where machinery protection alarming andlogic occurs2

Frequently asked questions：

Q1: What input does the 991-06-XX-01-05 accept?

A: It accepts input from a Bently Nevada 3300 NSv proximity probe and extension cable

Q2: What power supply does the 991-06-XX-01-05 require?

A: The transmitter is loop-powered at 18–30 V DC.

Q3: How accurate is the 991-06-XX-01-05 thrust transmitter?

A: It has high accuracy, typically around ±0.15 % of full scale.
