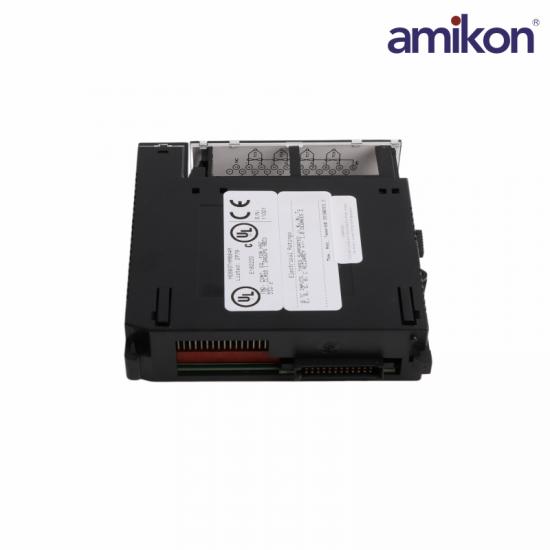

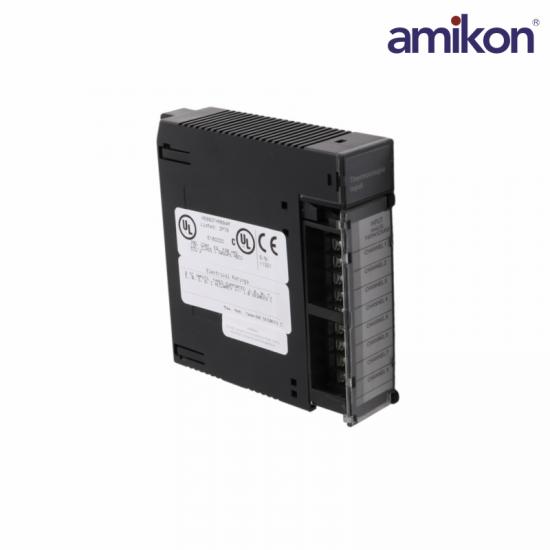

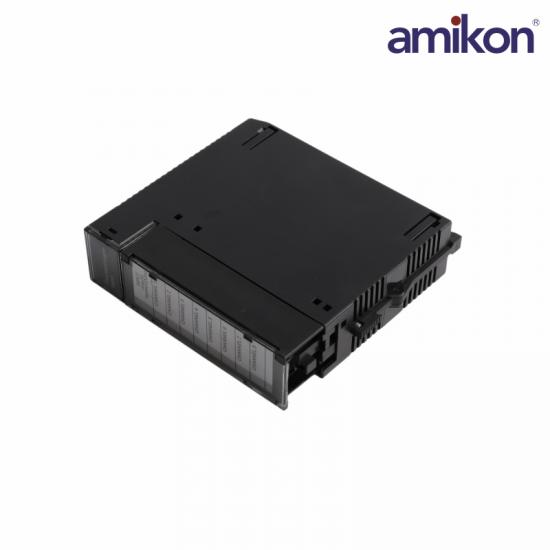

Manufacturer : GE Fanuc

Product No. : HE693THM884M

Product Type : Thermocouple Input Module

Power Consumption : 100mA @ 5VDC

Number of Channels : 8

Types Supported : J, K

I/O Points Required : 8AI, 8AQ, 16I

Input Impedance : 20Mohms

Shipping weight : 3Kg

The HE693THM884M allows thermocouple temperature sensors to be connected to the PLC directly without the use of external signal processing such as transducers, transmitters, etc. All analog and digital processing of the thermocouple signal is performed on the module. This high-resolution module (0.1°C), can report values to the PLC I/O table in 0.5°C, 0.5°F, 0.1°C, or 0.1°F increments. The module has eight thermocouple channels assigned to 8 %AI input registers. There are 16 %I Alarm Bits, one open circuit alarm and one setpoint alarm for each channel. Alarm setpoints are set for each channel through 8 %AQ registers. Open circuit alarm bits for each channel correspond to the first eight successive%I bits, and the alarm setpoints for each channel correspond to the second eight successive %I bits.

Frequently asked questions：

1. What is the GE HE693THM884M used for?

The GE HE693THM884M is used to measure temperature from thermocouple sensors and convert the signal into digital data for PLC processing.

2. How many thermocouples can the GE HE693THM884M support?

The GE HE693THM884M supports 8 independent thermocouple input channels, allowing multi-point temperature monitoring.

3. What thermocouple types are compatible with the GE HE693THM884M?

The module supports Type J and Type K thermocouples, which are among the most commonly used industrial temperature sensors.
