Brand Name: GE

Model Number: IC693CPU363-DL

Power Supply: Requires 890 mA from +5 VDC

Processor: 25 MHz80386EX

Operating Temperature: 0 to 60°C(32 to 140°F)

Scan Rate: 0.22 ms per 1K  (Boolean contacts)

User Memory: Total 240K bytes(245,760 bytes), actual size depends on configuration of %R,%Al, and %AQ

Discrete Global Memory(%G):1,280 bits

Internal Coils(%M): 4,096 bits

Temporary Output Coils(%T): 256 bits

System Status References(%S):128 bits(32 bits each for %S,%SA,%SB,%SC)

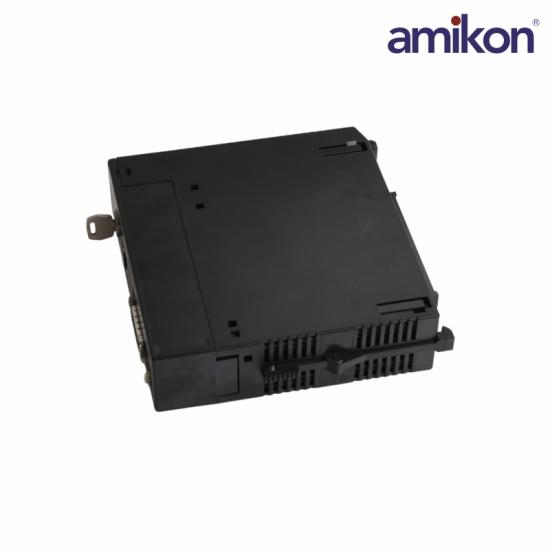

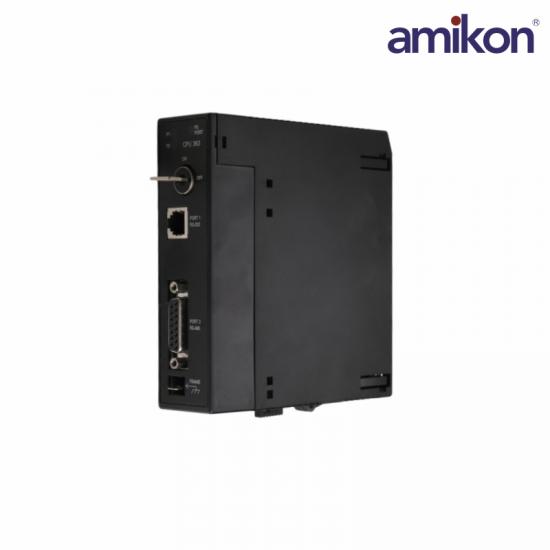

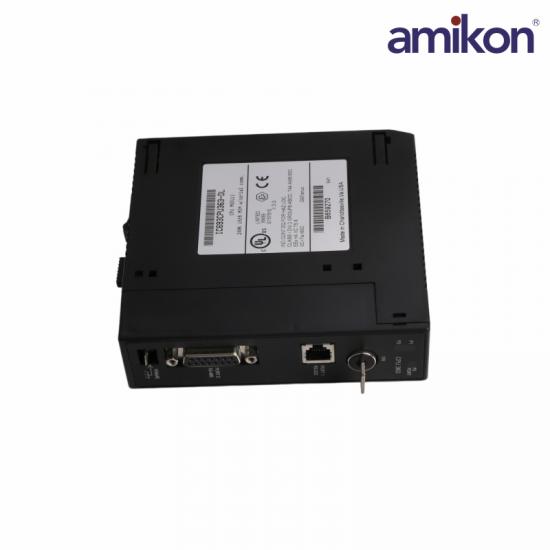

The GE Fanuc IC693CPU363-DL is a Module of GE Fanuc series 90-30 PLC systems. It connects to one of the CPU slots on a baseplate. This CPU is of type 80386X and has a speed of 25Mz. It gives the baseplate the ability to connect to up to seven remote or expansion baseplates. The power required for it to work is +5VDC and 890mA current. It has a battery to back up a clock and can be overridden. When it operates, its temperature can vary from 0 to 60 degrees in ambient mode.

Frequently asked questions：

1. What is the GE IC693CPU363-DL?

The GE IC693CPU363-DL is a single-slot CPU module designed for the GE Fanuc 90-30 PLC platform. It functions as the main processor of the PLC system.

2. What is the user memory capacity of the GE IC693CPU363-DL?

The GE IC693CPU363-DL provides 240 KBytes of user memory for storing control programs, and data.

3. What is the processor speed of the GE IC693CPU363-DL?

The GE IC693CPU363-DL operates at a 25 MHz clock speed, offering reliable performance for medium-sized industrial applications.
