Manufacturer: GE Fanuc

Product Line: Versamax

Part Number: IC200CHS022L

Product Type: Compact box-style I/O carrier

Weight: 0.75 lbs (0.34 kg)

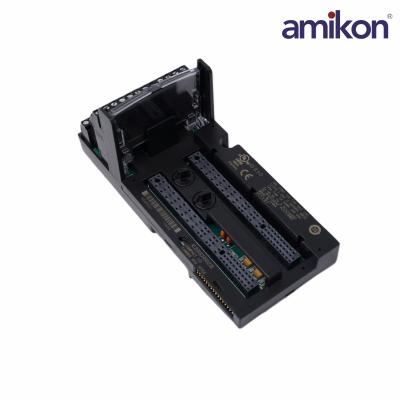

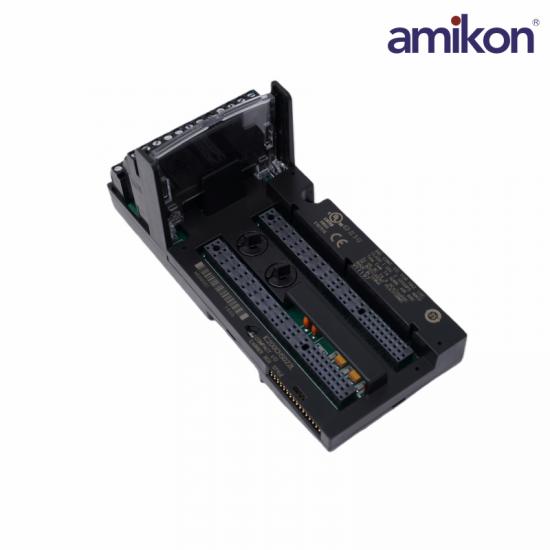

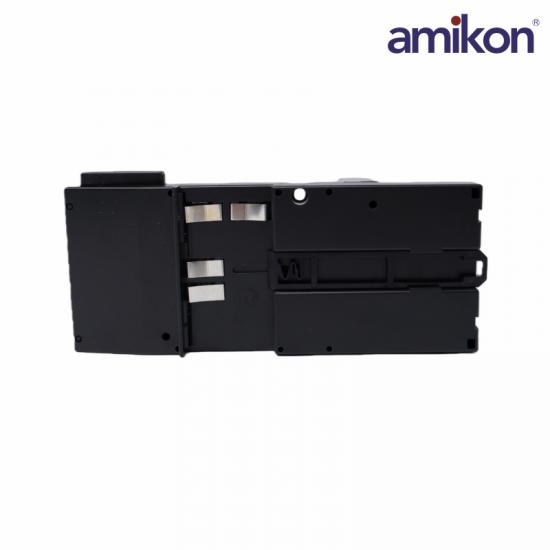

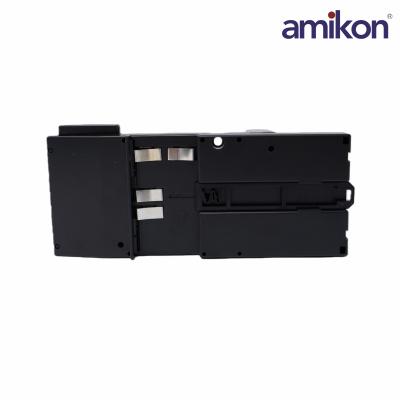

Product Description: I/O carrier module

Carrier Module Style: Compact I/O, Box style

Number of Terminal Strips: 3

Number of Terminals: 36

Box-style Terminals: 36

Two-Wire Cross Section: Up to 0.86 mm²

Current Rating per Point: 2 A

Voltage Rating per Point: 0–264 VAC

Current Rating per Each Power Terminal: 8 A

Ground Current: 8 A

Voltage Supply, Max: 264 VAC

Current Rating per Ground and Power Segment: 8 A

Maximum Voltage per Point: 264 VAC

Transient Voltage, Max: 300 VAC

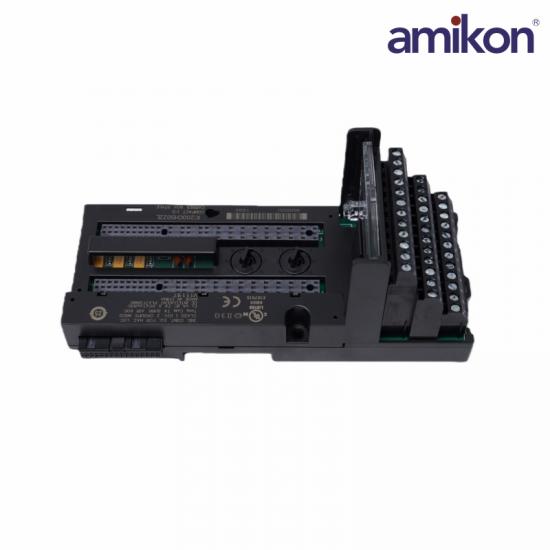

The IC200CHS022L is a carrier module from the VersaMax product family that is manufactured by Emerson  This module is combined with VersaMax I/O modules, providing wiring terminals for termination of input and output devices, depending on the module type installed. The IC200CHS022L may also be referred to as a terminal base. It features 36 screw type terminals that are designed to accommodate Solid or stranded copper ranging AWG # 14 to AWG #22 for single wire connection and AWG #18 for Two (2) wire connection in a single terminal for implementing terminal shorting. The carrier’s terminal are labeled A1 - A18 and B1-B18 for proper grouping. Each terminal is rated 0-264 VAC, 2 Amperes per terminal and 8 Amperes per ground and power segment. Each terminals are also designed to withstand up to 300 VAC transient voltage. The IC200CHS022L provides flexibility and modularity as it allows hosted VersaMax I/O modules to be replaced or serviced without the need of removing the existing wiring connections to the carrier modules. With this, troubleshooting time is significantly reduced especially control system or module downtime. This carrier module also provides the mounting assembly such as the DIN slot or panel mounting tabs to fix the carrier module into place along the partner I/O module. The IC200CHS022L is provided with a card holder that hinges down over the terminal wiring. It also has a card holder which locks the I/O module into place. During operation, this card holder must be in the retracted orientation.
