Manufacturer: GE Fanuc

Product Line: PACSystem RX7i

Part Number: IC698PSA350

Product Type: Power supply module

Nominal Rated Voltage: 120/240 VAC, 125 VDC

Input Voltage Range: 85–264 VAC; 100–150 VDC

Input Frequency: 47–63 Hz

Input Power: 437 W typical; 500 W max

Output Power: 350 W total across three outputs

Output Voltages: 5.1 VDC; +12 VDC; –12 VDC

Isolation: 1500 VDC

Overvoltage Limit: +5 VDC output limited to 5.7–6.7 V

Ground Wire: 12 AWG

Operating Temperature: 0°C to 60°C

Weight: 4.50 lbs (2.04 kg)

Series: PACSystem RX7i

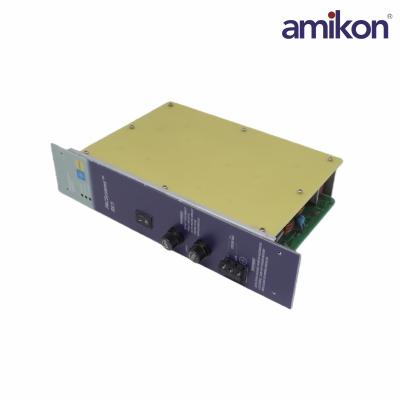

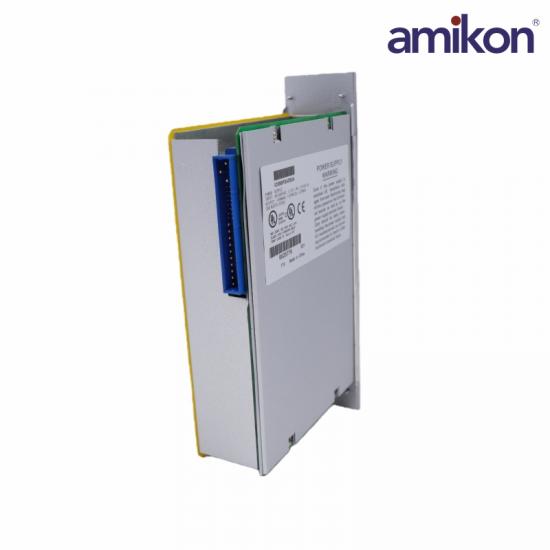

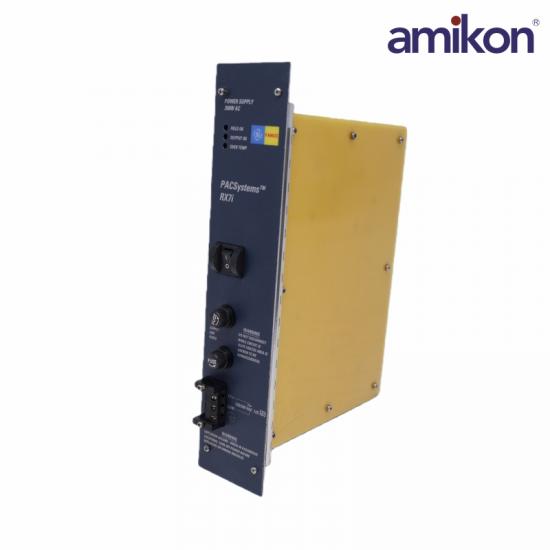

The IC698PSA350A is a high capacity Power supply module from the PACSystem RX7i controller series.  This module is used to deliver backplane power which is used by the modules to activate internal circuitry and become operable.  This power supply module occupies a single slot of the chassis and designed to be installed only in the slot 0 of the RX7i rack.  The IC698PSA350A operates at an input supply voltage of 85 to 264 VAC, 100-150VDC at an AC input frequency of 47-63 Hz.  The nominal voltage rating of this module is 120 / 240 VAC and 125 VDC with input power requirement of 440 watts, typical and 500 watts, maximum.  This power supply module has a power factor of 0.99 when used for AC input supply.  The IC698PSA350 is a single slot power supply module that is installed to the leftmost slot of the RX7i rack or slot 0.  It is provided with a variety of LED status indicators that helps identify the operational state of the module.  These indicators include Field OK, OUTPUT OK and OVER TEMP LEDs.  Built-in protection circuits such as Overtemperature and Overvoltage protection is provided to this power supply module as well as an Air flow Protection.  A 70 CFM forced air cooling fan is available below the system chassis which supplies cooling air to the power supply module.  If cessation of air flow is detected, the OVER TEM LED indicator actuates.  The IC698PSA350A power supply is available in series A and Series B version.  Series A power supply is internally installed with 0.25” x 1.25” fuses while series B power supply has 5 x 20 m fuse.  Installed fuse is 8A/250V fuses.
