Manufacturer: GE Fanuc Emerson

Product Line: Versamax

Part Number: IC200MDL940F

Weight: 1.13 lbs (0.51 kg)

Voltage: 24 V DC / 120–240 V AC

Current: 2 Amperes

No. of Channels: Sixteen (16)

Points: 16

Output Contact Form: Normally Open (Form A)

Operating Temperature: 0–60°C

Switching Frequency: 20 cycles per minute

Input to Isolation: 250 V AC

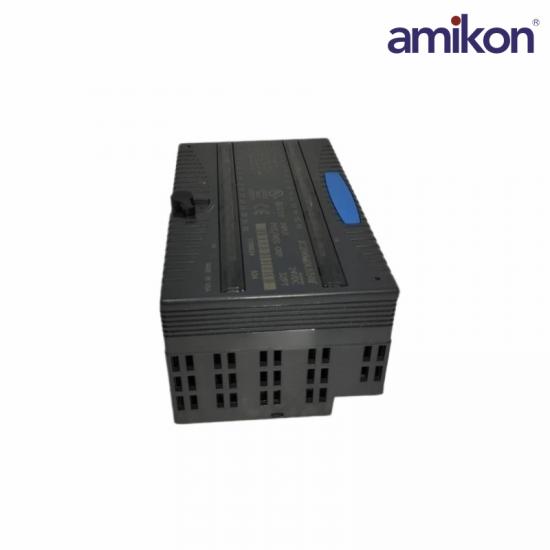

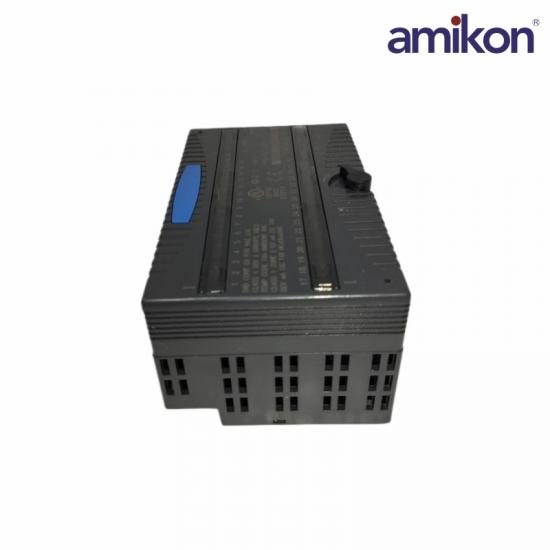

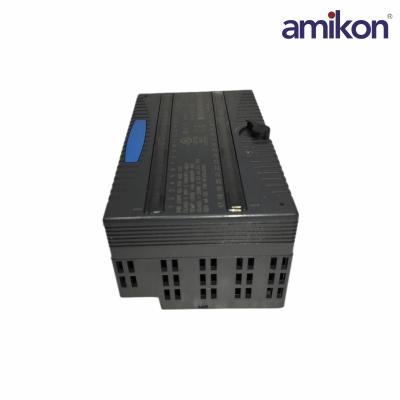

The IC200MDL940F is a Digital Input Module that is part of the VersaMax I/O platform of Emerson , formerly by GE Fanuc. This module comes with Sixteen (16) individually isolated Normally Open (N.O.) of Form A relay output contacts rated 0 to 125VDC, 5/24/125VDC nominal output voltage and 0 to 265VAC (47 to 63Hz), 120/240VAC nominal output voltage with output contact rating of 2.0 Amperes. With the built-in channel to channel isolation, each contact outputs can be wired to different voltage sources to energize the corresponding electrical devices wired to an output channel. The module’s embedded relay is a fixed coil, moving armature type with contacts made of silver alloy. This module can be used to energize output devices such as relay coils, solenoid actuated instruments, pilot lamps and other instruments. It does not come with snubber circuits or internal protection fuses however, external protection may be installed accordingly by the user. This IC200MDL940F module does not exhibit an output leakage current as the contact output are at an Open state when not activated. In addition, the response time of each output channel are both 10 ms specifically for Open to Close and Close to Open contact changeover. The maximum switching frequency of each output contact is 20 cycle per minute when used with inductive loads. Each output channel are provided with individual channel status indicator for depicting the operational state of each. The IC200MDL940F has maximum backplane current draw of 490mA and requires an external power supply rated 0 to 125VDC, 5/24/125VDC nominal and 0 to 265VAC (47 to 63Hz), with 120/240VAC nominal supply voltage.

Frequently asked questions：

Q1: What is the GE IC200MDL940F?

A: The GE IC200MDL940F is a Digital Input Module used in GE Fanuc VersaMax or Series 90-30 PLC systems for monitoring digital signals from field devices.

Q2: What is the input voltage of the GE IC200MDL940F?

A: The module supports 24 V DC or 120–240 V AC input voltage.

Q3: How many channels does the GE IC200MDL940F have?

A: It has 16 channels (16 digital input points).

Q4: What is the IC200MDL940F maximum current per channel?

A: The maximum current rating is 2 Amperes.
