Manufacturer: GE Fanuc Emerson

Product Line: Series 90-30

Part Number: IC693DNM200-BC

Product Description: DeviceNet Master Module

Compatibility: Series 90-30, PACSystems RX3i

Supported Network: DeviceNet

Communication Ports: One (1) DeviceNet terminal; One (1) Service port

Communication Speed: 125K, 250K, and 500K

Supported Data Rates: 125K, 250K, and 500K Baud

Module Location: Any slot of Series 90-30 except slots 0 and 1

Module Width: Single slot

Rated Voltage: 12 to 24 Volts DC, positive logic

ON-State Voltage Drop: 0.3 Volts DC

ON / OFF Response Times: 0.5 milliseconds (maximum)

Number of Outputs: 32

Number of Slaves: Up to 63 DeviceNet slaves

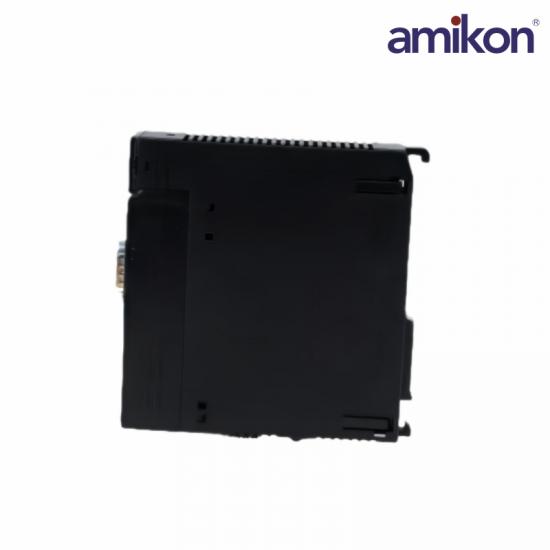

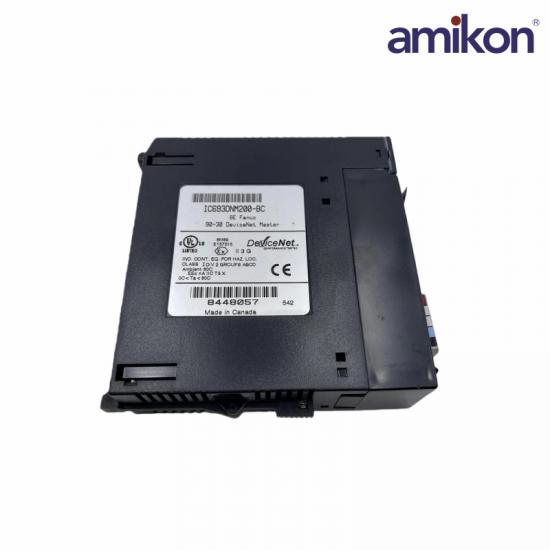

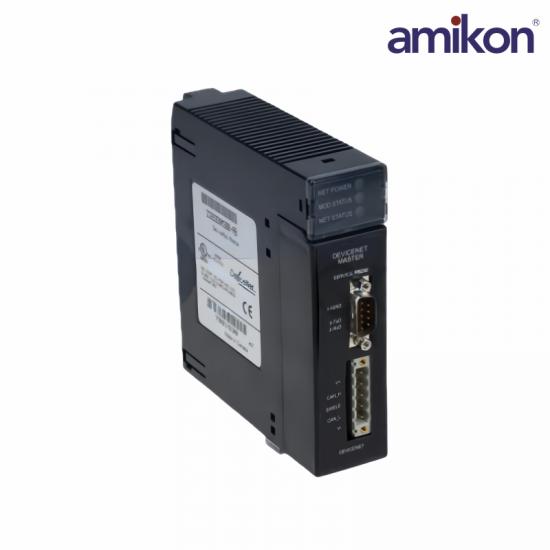

The IC693DNM200-BC is a DeviceNet Master Module. This module is a single slot communication module that is part of the Series 90-30 Programmable Controller (PLC) platform being manufactured by formerly by GE Fanuc, now under Emerson . This module is provided with a single DeviceNet terminal. It also has One (1) RS232 9-pin D shell female port that is used as module service port. The IC693DNM200-BC supports all data rates of DeviceNet protocol particularly, 125K, 250K and 500K transmission rates. Up to 255 Bytes of input data and 255 Bytes of output data can be transferred by the master per slave device and up to 3972 bytes of input data and 3972 Bytes of output data can be transferred to this master module. Additionally, a total of 126 I/O connections can be established using this module as it is capable of communicating up to 63 slave devices, where each slave assignable with up to Two (2) I/O station. The module’s supported and configurable data connection are Polled, Strobe, Cyclic or COS. Explicit messaging, Unconnected Message Manager (UCMM) and One (1) Proxy connection per slave unit is also supported by this DeviceNet Master Module

Frequently asked questions：

Q1: What is the GE IC693DNM200 used for?

A: It is a DeviceNet Master Module that enables a GE Series 90-30 PLC to communicate with and control multiple DeviceNet slave devices.

Q2: How many DeviceNet devices can it manage?

A: The module can manage up to 63 DeviceNet slave devices on the network

Q3: What voltage does the IC693DNM200 require?

A: It operates on 12–24 V DC  typical for communication modules.
