Manufacturer: GE Fanuc

Product Line: RX3i PacSystem

Series: PACSystem RX3i

Part Number: IC695ALG312

Weight: 1.00 lbs (0.45 kg)

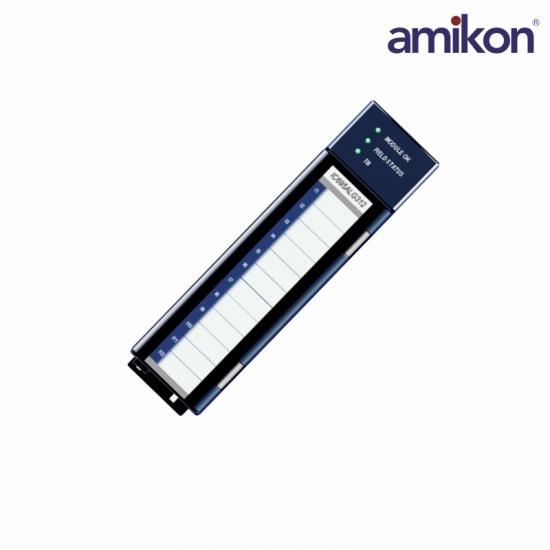

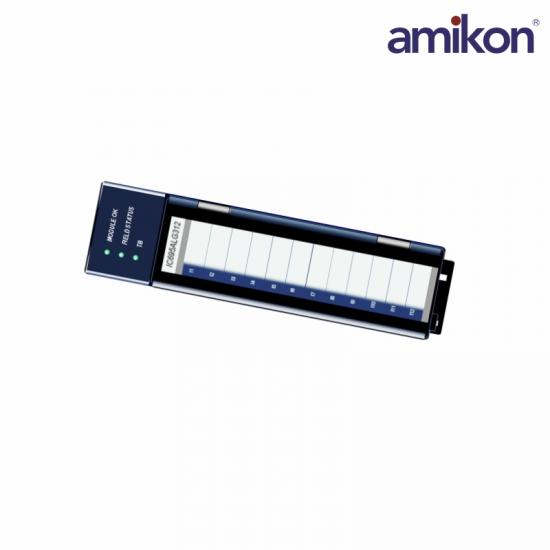

Product Description: Thermocouple Input Module

Module Type: Isolated Thermocouple Input

Number of Channels: Twelve (12), individually isolated

Number of Inputs: 12

Resolution: 11.5 – 16 bits

Internal Power: 3.3 V @ 400 mA and 5 V @ 300 mA

Integration Time (12 channels): Configurable from 15 ms to 120 ms

Operating Temperature: 0 to 60 °C (typical for RX3i modules)

Storage Temperature: -40 to 85 °C

The IC695ALG312 is a Thermocouple input module that is part of the PACSystem RX3i mid-range controller series of Emerson , formerly from GE Intelligent Platforms. This module is ideally used for Temperature application and direct integration of field transducers as this module supports direct wiring of Thermocouple Type J, K, T, E, R, S, B, N, or C sensors ang voltage signals such as +/-150mV or +/-50mV. The IC695ALG312 has Twelve (12) input channels, each provided with a built-in Analog to Digital Converter (ADC) with resolution ranging from 1.5-16 bits, depending on the set input filters. The converted data by the built-in ADC circuit is configurable as a 16-bit integer stored within a 32-bit register or a 32-bit real number. Each channel has integration time of 15 ms to 120 ms with Voltage accuracy of +/- 0.1% of voltage span at 25 Degree Celsius and +/- 0.25% of span over temperature range. In addition, this module has repeatability of 0.05% of voltage span at a constant temperature over 30 second period. The IC695ALG312 is installed to an RX3i universal backplane. Compatible RX3i CPU for use with this module must have minimum firmware version 5.5 or later. For programming and configuration, compatible software is Machine Edition 5.8 Developer PLC or later must be used. For termination and sensors and signal wires, this module must be installed with a terminal block assembly.

Frequently asked questions：

1.How input channel does the IC695ALG312 have?

The IC695ALG312 has Twelve (12) individually isolated input channels.

2.What are the Thermocouple sensors supported by the IC695ALG312?

The IC695ALG312 supports Thermocouple type J, K, T, E, R, S, B, N, or C.

3.What are the engineering units supported by this module?

The IC695ALG312 can display Degree Celsius and Degree Fahrenheit.

4.How many input channels does the IC695ALG312 have?

The IC695ALG312 has 12 isolated input channels.

5.What is the supported voltage signal of the IC695ALG312?

The IC695ALG312 supports +/-150mV or +/-50mV voltage signals.
