Manufacturer: GE Fanuc

Product Line: RX3i PacSystem

Series: PACSystem RX3i

Part Number: IC695ALG508

Weight: 0.56 lbs (0.26 kg)

Product Description: Resistance Temperature Detector (RTD) Input Module

Module Type: RTD Input Module

Number of Channels: Eight (8), isolated, differential

Number of Inputs: 8 Differential Inputs

Internal Power: 3.3 V @ 400 mA and 5.1 V @ 200 mA

RTD Wiring: 2, 3, or 4-wire RTD types

Range (Ohms): 250 / 500 / 1000 / 2000 / 3000 / 4000

Resistance Inputs: 0–260, 0–525, 0–1050, 0–2100, 0–3150, 0–4200 ohms

Power Dissipation: 2.5 W max

Measurement Units: Degrees C or F, or Ohms

Operating Temperature: 0 to 60 °C

Configurable Notch Filters: 2.3 Hz to 28 Hz

Storage Temperature: -40 to 85 °C

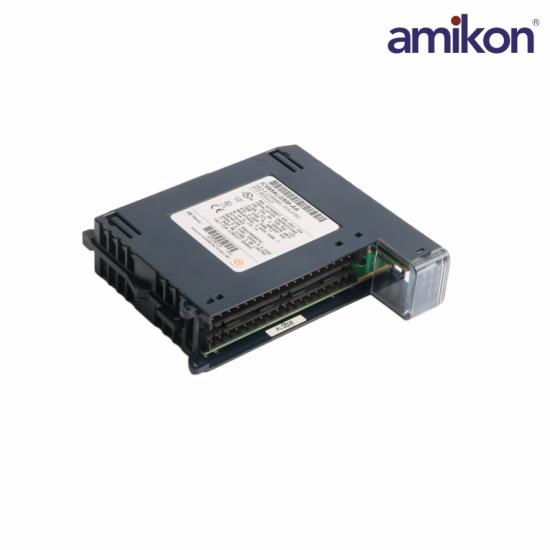

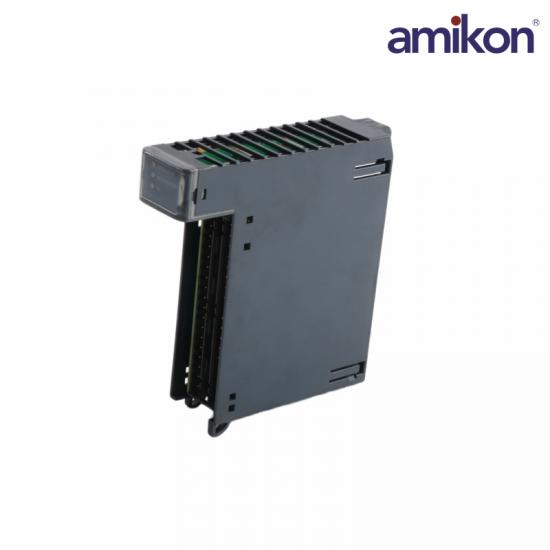

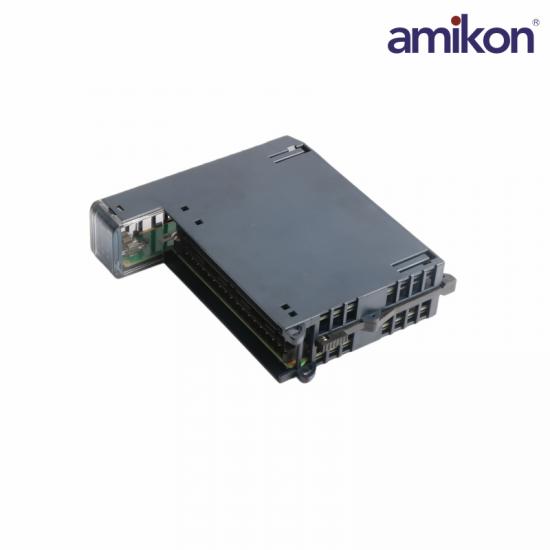

The IC695ALG508 input module is an isolated RTD input module that has been designed by GE Fanuc . This module has been exclusively designed to operate with the RX3i PACSystems mid-range controllers. The RTD input module's main objective is to enable the direct connection of 2-wire and 3-wire RTD temperature sensors without the need for using external signal-processing devices such as transducers and transmitters. All the processing of the RTD signals is performed by using this module. The GE Fanuc IC695ALG508 isolated RTD input module comes with 8 isolated RTD input channels. Each one of these channels can be individually configured for different RTD or resistance applications.

Frequently asked questions：

1.What is an IC695ALG508?

The IC695ALG508 is an 8-Channel, Isolated, Resistance Temperature Detector Input module from the GE Fanuc RX3i Series.

2.What does IC695ALG508 do?

This module provides 8, isolated differential RTD input channels.

3.Does this module support direct input of resistance values?

Yes. Acceptable resistance values are 0-260, 0-525, 0-1050, 0-2100, 0-3150, 0-4200 ohms.
