Description：

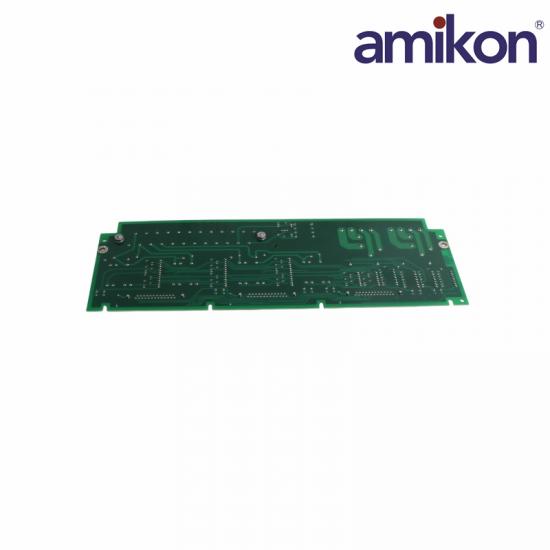

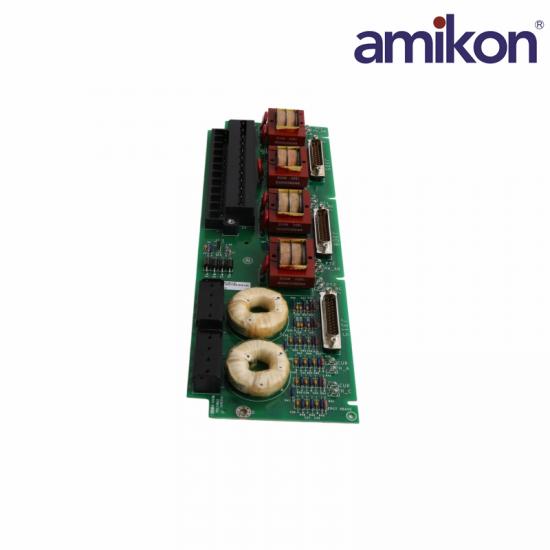

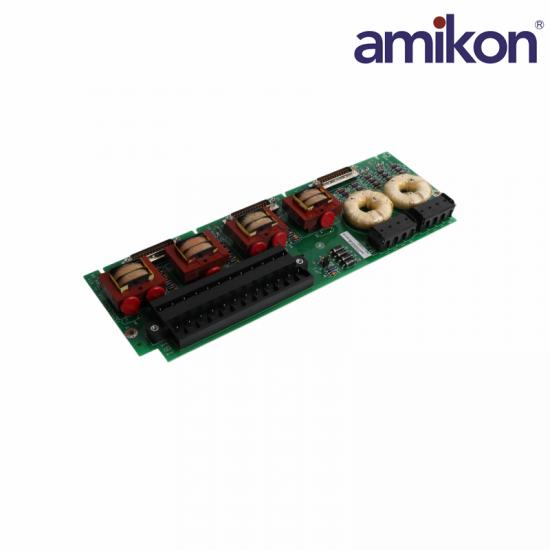

IS200EPCIG1A is a Simplex Servo I/O Terminal Board manufactured and designed by General Electic as part of the EX2100 Series used in the GE Excitlation Contro System. The IS2o0EPCT Ekciter PI/CT (PCD) terninal board contains isolation transtormers for critical generator voltage and curen measurements Two 3-phasegenerator potential transtormer(PT voltage inputs are input to EPCT as shown in the folowing diagram, PCT Terminal Board Two generators curent transformer (CDinputs, with current levels of 1A or SA are input Al the solation transformer output signals are cabled to the EMIO board in the contol ack In adition one analog input which can be either a voltage or current is brought into EPCT. When the highest reliability is required, three EPCT boards can be used.

Specification：

Frequently asked questions

Q1: What is the GE IS200EPCTG1A used for?

A: The IS200EPCTG1A is an Exciter PT/CT Terminal Board used in GE excitation control systems. It provides interface connections for potential transformers (PTs) and current transformers (CTs), enabling accurate voltage and current signal acquisition for generator excitation control.

Q2: What power supply does the IS200EPCTG1A require?

A: The module operates with a 28 V DC power supply, ensuring stable performance in industrial and power generation environments.

Q3: What is the operating temperature range of the IS200EPCTG1A?

A: The IS200EPCTG1A board is suitable for demanding environments with an operating temperature range of -30°C to +65°C.

Q4: What is the IS200EPCTG1A PT/CT input burden of this terminal board?

A: The PT/CT input burden is less than 1 VA, helping minimize the load placed on connected transformers and maintaining measurement accuracy.

Product Applications

Power Generation: As a key component of the excitation control system for gas turbine, steam turbine, and hydro turbine generator sets, ensuring the stability of grid voltage and reactive power.

Oil & Gas: Used in the excitation systems of high-load compressors and pumps, providing power conversion and control in harsh environments.

Chemical Industry: Provides stable and continuous power and control in the drive systems of reactors and separators.

Other Heavy Industries: Widely used in the excitation control systems of pulp and paper, mining, and large fans and pumps.
