Brand/Manufature:
GEProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooFor additional discounts, please contact our five-star sales manager Lisa Lin.
|
|
Description：

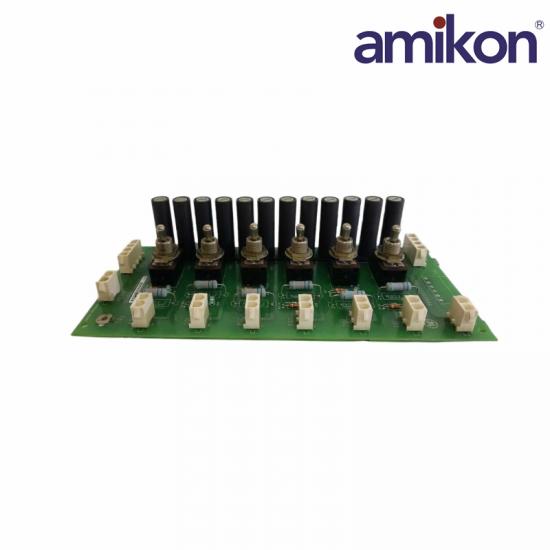

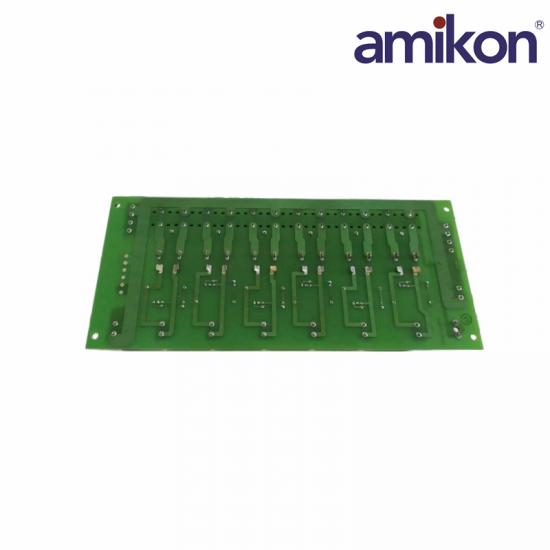

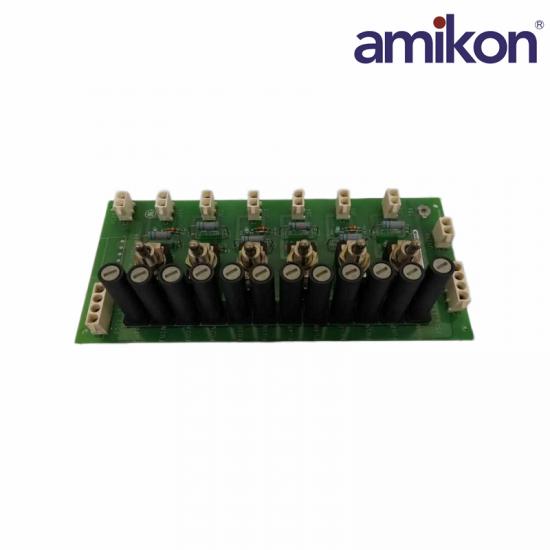

IS200JPDDG1A is a DC Power Distribution Board developed by GE. It is a part of the Speedtonic Mark Ve conto system. The JPDD (DC Power Ditribution and
Protection) board serves a crucial role in facilitating power distribution, isolation, and branch circuit protecion for various control or inputoutput (/O)functions that necessitate either 125 V DC or 24 V DC power Primarily.it supports applications invoving DC relay and solenoid control power as well as contact wetting.
Specification：
|
Part No. |
IS200JPDDG1A |
|
Manufacturer |
General Electric |
|
Series |
Mark Vle |
|
Product Type |
Power Distribution Board |
|
Mounting Method |
DIN-rail mounting |
|
Operating Temperature Range |
-30°C ~ +65°C |
|
Supported Input Voltage |
24V DC / 48V DC / 125V DC |
|
Output Fuse Quantity |
12 fuses |
|
Output Channels |
6 channels |
Frequently asked questions
Q1: What is the GE IS200JPDDG1A used for?
A: The IS200JPDDG1A is a DC Power Distribution Board used in GE control and excitation systems.
Q2: Why does the IS200JPDDG1A support multiple input voltages?
A: Supporting 24 VDC, 48 VDC, and 125 VDC allows the board to integrate into different control architectures and power systems without requiring additional voltage conversion equipment.
Q3: How many output channels are available on the IS200JPDDG1A?
A: The module provides 6 channel outputs, enabling power distribution to multiple connected devices and control circuits.
Q4: What is the operating temperature range of the IS200JPDDG1A?
A: The IS200JPDDG1A board operates reliably within a temperature range of -30°C to +65°C, making it suitable for harsh industrial environments.
Product Applications
Thermal and Combined Cycle Power Plants: Used in the control systems of gas turbines and steam turbines (such as GE 9FA/7FA units), responsible for providing stable DC power supply management to the main control cabinet and I/O modules.
Oil and Gas Chemical Plants: Used in the control of large compressor units and oil and gas pumping stations to cope with harsh, continuous industrial environments.
Heavy Steel and Metallurgical Plants: Responsible for the secondary distribution of DC power in the central control cabinets of large blast furnace control and rolling mill systems.
Payment & Delivery
Payment Term: T/T
Lead Time: Usually 2-3 days
Delivery Ways: DHL,UPS,TNT,CHIRLINE,FEDEX
