Manufacturer: General Electric (GE)

ModeI Number: IS200SHRAH2A

System Compatibility: Mark Vle /Mark VleS control systems

Module Type: HART Analog Input/Output Terminal Board

Input Channels: 10 analog inputs(4-20 mA, HART-enabled)

Analog 0utputs: 2 outputs(±10 Vor 4-20 mA)

Resolution: 16-bit A/D conversion

Signal Types: 4-20 mA current loop,±10 V DC

Isolation: Channel-to-channel and channel-to-ground

Operating Voltage: 24 VDC nominal

Operating Temperature: -40 。C to +85 °C

Storage Temperature: -40 °C to +85 °C

Mounting: DIN-rail installation, metal enclosure

Certifications: UL, CE, CSA,IEC 61508 SIL2

Weight: 0.9 kg

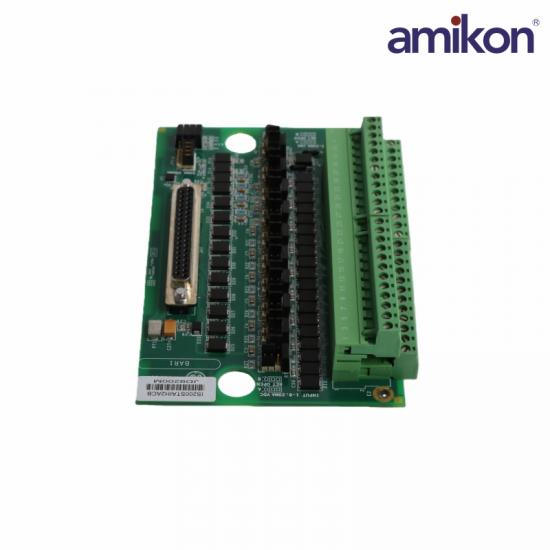

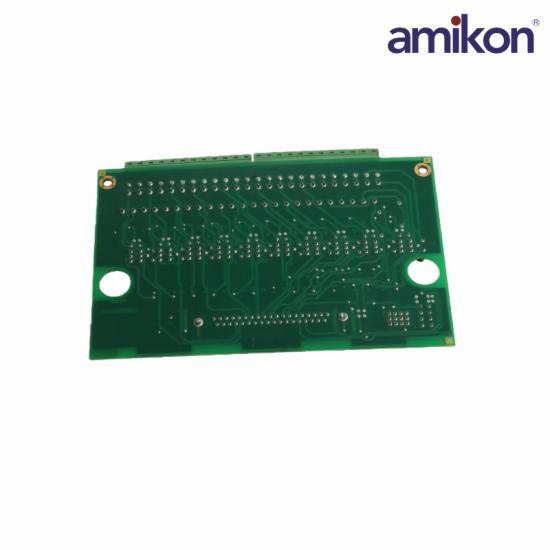

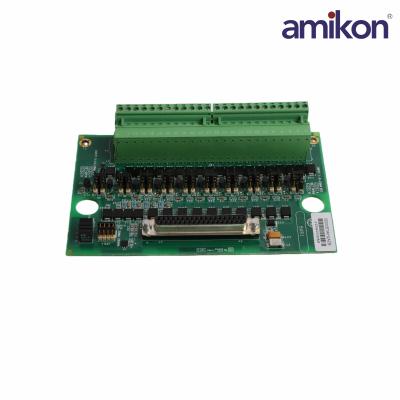

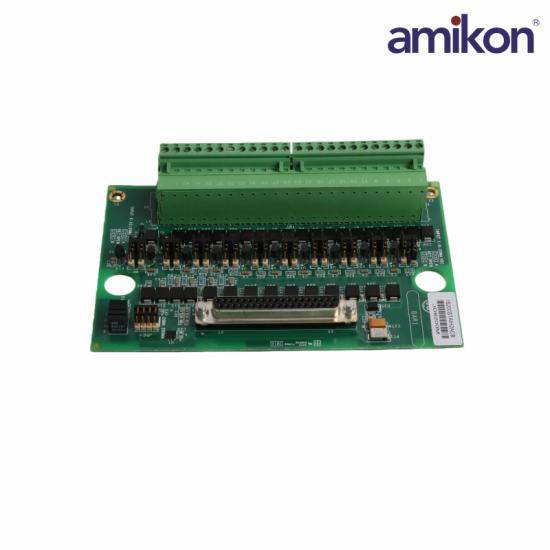

The IS200SHRAH2A HART-enabled Input/Output board is perhaps examined through the lens of its intended functionality within the greater Mark VIe Series. This IS200SHRAH2A PCB is an Input/Output board that accepts ten total analog inputs and two analog outputs, which allow for crucial interfacing between the IS200SHRAH2A PCB and the corresponding PHRA and YHRA I/O packs that also exist in the Mark VIe Series.

Frequently asked questions：

Q1: What type of signals does the IS200SHRAH2A support?

It supports 4-20 mA analog inputs and outputs, as well as ±10 V Dc signals.

Q2: Can it integrate with smart HART devices?

Yes, it is fully HART-enabled for communication with smart field instruments.

Q3: What is the IS200SHRAH2A temperature operating range?

The board operates reliably between -40 °C and +85 C in industrial environments.

Q: What is the operating voltage requirement for the IS200SHRAH2A?

A: The board operates with a 24 VDC nominal power supply.

Key Features and Connectivity

Module Compatibility: Specifically designed to work with PHRA and YHRA I/O packs in the Mark VIe series.

Customization: The board contains 20 hardware jumpers that allow manual configuration for field requirements, such as choosing between voltage and current inputs.

High Reliability: Built with conformal coating to protect against environmental contaminants and features robust isolation to prevent electrical interference and ground loops.

Terminal Blocks: Utilizes high-density Euro-style terminal blocks (pluggable or permanent) for secure wiring.
