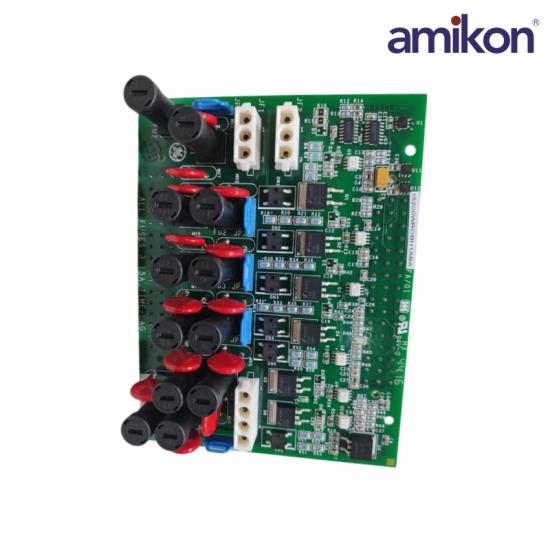

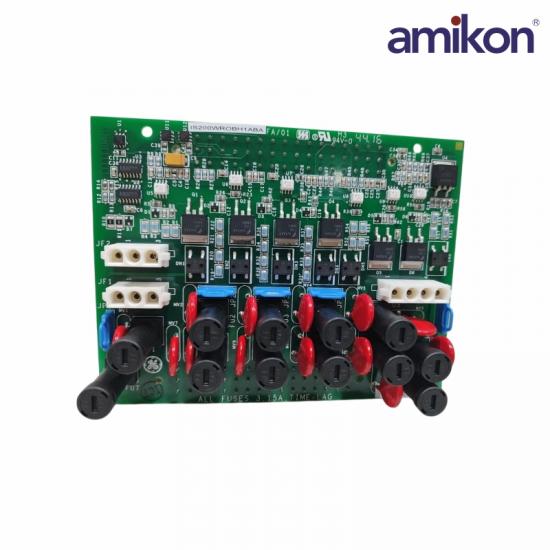

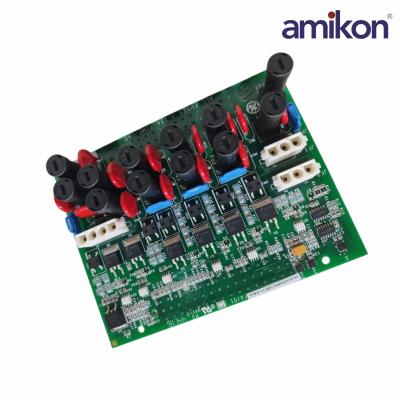

Part No.: IS200WROBH1A

Manufacturer: General Electric

Product Type: Power Distribution Board

Series: Mark VI

Fuses: Features 12 fuses with a default rating of 3.15 A (500VAC / 400VDC).

Voltage Feedback: Supports 24, 48, 125 VDC and 120, 240 VAC.

Operating Temperature: -40°C to +70°C.

IS200WROBH1A s a Power DIstribution Board under the Mark V series. GE created the board as part of ther Spettionic range The Mark conto plattorm offerscalable redundany levels, A single (Gimple) contoler with simplex O and a single network is the foundation of the system The dual system has two controllerssingular or faned TMR VC, and dual networks, whichincreasesreliability and lows for onine repairs. Thre controllers singular or fanned TMR /O, three networks, andstate voting amongst controllers make up the TMR system, which allows for maximum fault detection and availability.The core distribution system and branch circuit elements are two distinct ypes in the POM. They are responsibl for a cabinets or a set of cabinets primay powermanagement The branch cicuit elements take the core output and dstribute itto specific circuits in the cabinets for consumption. Branch cicuits have their ownfeedback metiods that are not included in the PPDA I/O pack's fedback. IS200WROBH1A is a Relay Fuse And Power sensing card from WROB, The card has twelve fuseson it. The fuse has a 3.15 A rating and is rated for 500VAC/40oVDC.

Frequently asked questions：

1.What is IS200WROBH1A?

IS200WROBH1A is a Power Distribution Board under the Mark VI series.

2.What is the function of IS200WROBH1A?

It functions as a WROB Relay Fuse And Power Sensing card.

3.How much is IS200WROBH1A's fuse rating?

The board's fuse rating is 3.15 A and 500VAC/400VDC.

Functional Role & Compatibility

The board is versatile and can be configured for different redundancy levels, including Simplex, Dual, and Triple-Modular Redundant (TMR) systems.

Board Integration: It can attach to several other boards in the series, specifically the TDBS, SRLY, and TDBT boards.

TDBS Connection: When connected to a TDBS board, it can turn the relay portion into an equivalent of the IS20TRLYH1B board, providing sensed and fused power to the first six relay outputs.

TMR Applications: In TMR configurations, it mounts on the TDBT board and acts as a combination of a terminal board and a contact input terminal board (TBCI).
