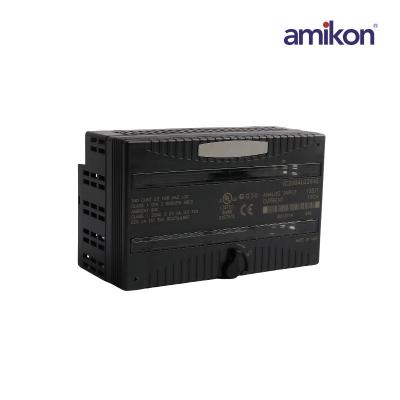

GE IC200ALG264

Dimensions:11cm*5.8cm*6.5cm

Country of Origin: United States

Product Package：Original Package

Weight: 0.52kg

Description:Analog Input Module

Shipping Term：TNT DHL FEDEX EMS UPS

 IC200ALG264

The IC200ALG264 is a 15-Channel, 15-Bit, Current Analog Input Module manufactured by GE Fanuc for its Versamax Series. It provides interface to 15 current inputs and receives power from the backplane power supply. Analog inputs for this particular module are single-ended, and all of them share a common return. The IC200ALG264 is 250 VAC continuous duty.

The IC200ALG264 does not require any external power source to operate; however, power for the user's transceivers must be supplied from an external source. This module also has additional features like jumper selections as a group containing the range operations of (4-20)mA or (0-20)mA; a 15-bit converter resolution; configurable software; and default selection that holds last state operation. The IC200ALG264 reports the loss of internal power error for field-side circuits. It also reports open wire error for every channel but only when in 4- 20mA mode.

This module is equipped with a green LED that turns on backplane power is present and the internally generated field power is functioning properly. This module’s carrier terminals have a jumper that is used to configure 4-20mA or 0-20mA input ranges. However, the module can only accept 4-20mA input signals if the jumper is not installed.

The IC200ALG264 has analog inputs that are software configurable to either default or to hold the last state upon a loss of power. For analog channel connections, a shielded twisted pair cable is highly recommended. It is advisable to ground the cable at the source device, but if for some reason the cable is not grounded at the source device, then the cable shield must be grounded at the I/O module. Grounding is done using an Auxiliary I/O Terminal.
