GE IC693ALG442

Dimensions:3.6x13x13.5cm

Series：Series 90-30

 VoltageOutput Range:  0 to +10V (unipolar) or -10 to +10V (bipolar)

Weight: 0.38KG

Voltage：24 Volts DC

 Power Consumption: 95 mA from +5 V bus or 129 mA from +24 V  user supply

IC693ALG442

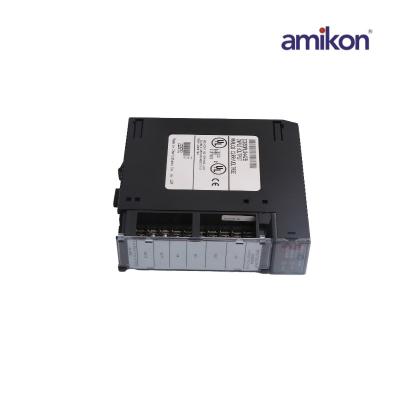

The GE Fanuc IC693ALG442 is an analog I/O module of GE Fanuc series 90-30 PLC systems. It has four input and two output channels. Power supply for this module is the typical +5VDC supply from the CPU with a maximum 95mA current and an external supply combined. The external power supply for this module has a typical value of 24 VDC but can vary from 20 to 30 VDC. Warning: Connecting this module to a baseplate while power is on is dangerous and may damage the components of the system. This module must be installed in a metal enclosure with external wiring.

There are six types of I/O modules for series 90-30 of GE Fanuc PLCs. These are either Discrete or Analog modules. Generally, Analog modules can be of Analog input type only, Analog output only, or have a combination of input and output channels. This type of module is combined input/output. Data within %AI and %AQ record analog values that are used by the PLC. The number of modules that can be installed on a system depends on %AI, %AQ, and %I references available. These references are different on each CPU type. The GE Fanuc IC693ALG442 analog I/O module provides the PLC with a range of status information, including health of the module, detection of an open wire or overload in output mode, very low or high status of input channels, and status of the module’s supplied power.
