Dimensions:6.5x21.8x29.3cm	Input Voltage Range: 90 to 264 VAC or 100 to 150 VDC
Weight:1.02kg	IInput Power: 90 watts at full load
Series：Series 90-70	Output power: 56 watts
Nominal Rated Voltage: 120/240 VAC or 125 VDC	DC Output: + 5VDC up to 11 amps

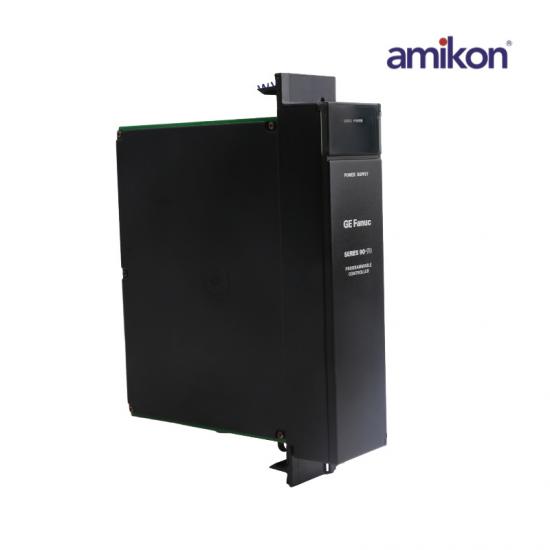

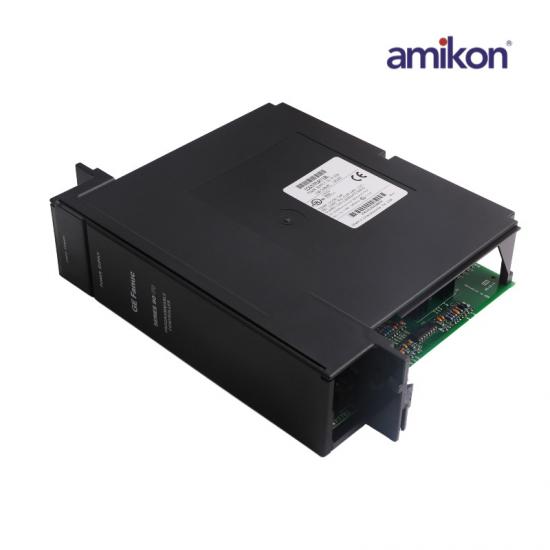

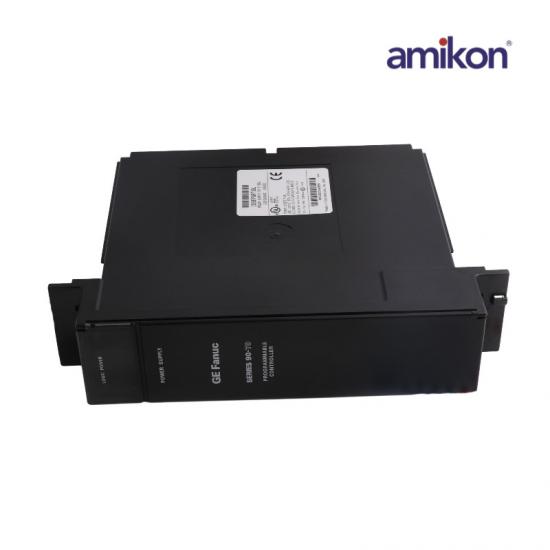

IC697PWR710 describe The IC697PWR710 power supply module is a 120 to 240 Volts AC or 125 Volts DC rated power supply module made by GE Fanuc. The IC697PWR710 power supply module is classified under Series 90-70 of the GE Fanuc modules and it comes with active power factor correction circuits for maintaining a cohesive power factor that eliminates the need for oversized circuit breakers and wiring. The IC697PWR710 comes with an overvoltage protection feature. The electronic overvoltage protection circuit clamps the output in case of the 5 Volts bus voltage rising and exceeding 6.2 Volts. This prevents an external overvoltage on the output from causing the power supply fuse to open. The IC697PWR710 power supply module is set so that if an internal fault in the power supply happens as a result of an overvoltage condition, the fuse does not open.

+86 18965423501 sales16@amikon.cn AMKPLC

Question: What is an IC697PWR710?

Answer: The IC697PWR710 is an 120/240 VAC or 125 VDC, 55W Power Supply module from the GE Fanuc 90-70 Series.

Question: Into where does this unit plug?
Answer: IC697PWR710 is a rack-mounted unit that plugs directly into a 48-pin backplane-mounted connector in the leftmost slot in the rack.

Question: Once there, what does it provide?
Answer: IC697PWR710 provides +5 volt power and logic level sequencing signals to the backplane.

Question: What are some of the features that IC697PWR710 provides?
Answer:
1Operation from 120/240 VAC or 125 VDC
25 volt DC output up to 11 amps
3Slide-in rack mount construction
4Electronic short circuit overcurrent protection provided on 5 volt bus
52 rack operation from a single power supply
6Power factor corrected on AC inputs
7Jumper for overvoltage protection devices

Question: Can this unit only provide power to a single rack application?
Answer: No. This unit can, yes, provide power to a single rack application, but it can also be used to provide power to a second rack (as long as the total load is within the supply rating).

Question: Is protection provided for overcurrent and overvoltage fault conditions?
Answer: Yes, it is.

Question: What should happen when you plug in this unit and hit the power butto
Answer: You should get a green LED light on, as well as the LED on the CPU should be lit up (letting you know it's providing power to the CPU).
