Brand/Manufature:
GEProduct Origin:
USALead Time:
In StockCondition:
Brand NewCertificate:
Coo/Test report/Warranty letter|
Dimensions:4x22x29.3cm |
Input Voltage Range (Vs):–3 to +56 volts DC |
|
Weight:0.56kg |
Input Current:4.7mA (typical) at rated voltage |
|
Series：Series 90-70 |
Current Required from 5VDC backplane bus:0.30 amps |
|
Inputs per Module:32 (four groups of eight inputs each) |
Rated Voltage:48 volts DC |
|

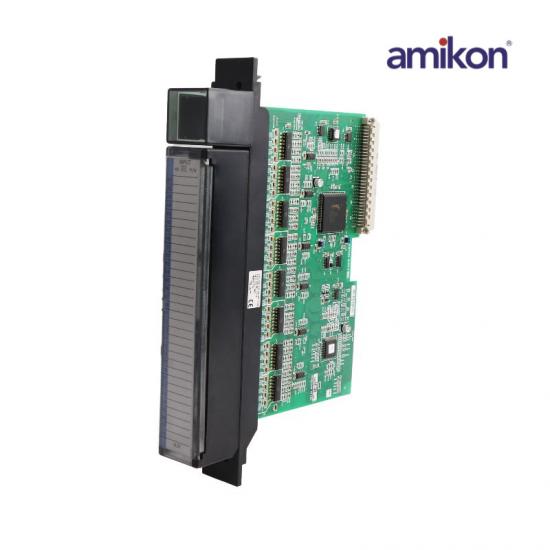

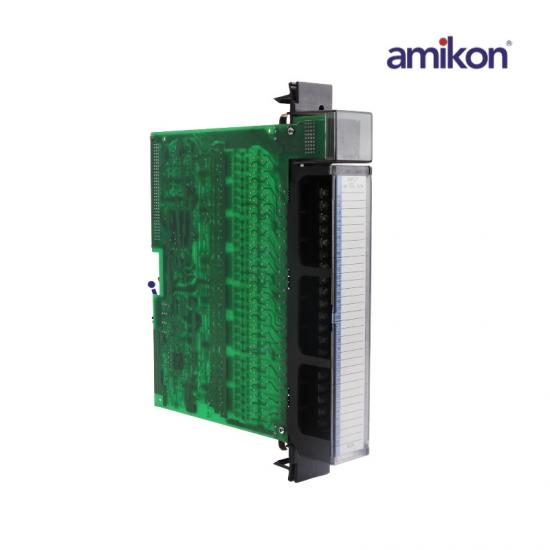

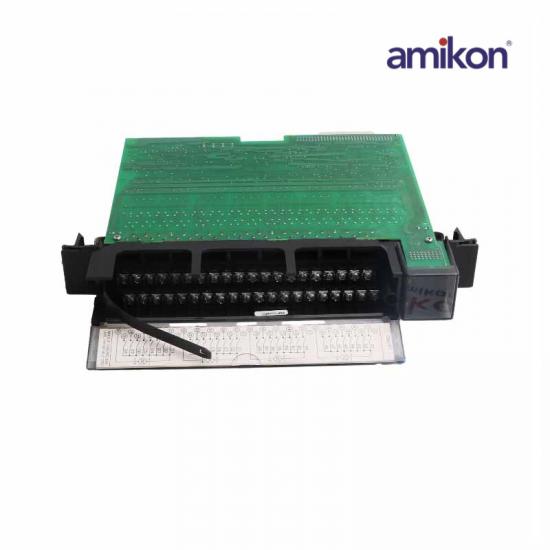

IC697MDL654 describe The IC697MDL654 module is a GE Fanuc positive/negative logic module that operates as input component for industrial machine systems that are based on programmable controllers. The module is part of the GE Fanuc IC697MDL Series 90-70 product line and it has 32 inputs. The IC697MDL654 module is compatible with various electronic devices and it is capable of working as both a positive logic component and a negative logic component. The unit is used with 2-wire and 3-wire switches with a voltage drop of 3 milliAmps at 5 Volts. The module is designed for rack mounting and it does not need much space for proper ventilation. However, the users of the module should follow the manufacturer's basic guidelines for wiring and installation in order to get the best out of their module. |
|
+86 18965423501
sales16@amikon.cn
AMKPLC
Question: What is an IC697MDL654?
Answer: The IC697MDL654 is a 48 Volt DC, Positive/Negative Logic, 32-Point Input module from the GE Fanuc Series 90-70.
Question: What features does it include?
Answer:
o 32 points- 4 isolated groups of 8 points each
o Positive/Negative Logic Compatibility
o Proximity switch compatible
o Input filter selectable* - 1 mS or 10 mS
o One input configurable as interrupt*
*These features are available for all IC697 PLCs. They may, however, not be available when this module is used with other types of PLCs.
Question: The LED indicators (located at the top of the module) do what?
Answer: They let you know the on/off status of each point on the logic (PLC) side of the circuit.
Question: What is special about the I/O references?
Answer: They are configurable without the use of jumpers or DIP switches on the module.
Question: Configuration of IC697MDL654 is done through what?
Answer: Configuration of IC697MDL654 is completed using the configuration function of MS-DOS, through Windows programming software on Windows 95, through Windows NT over Ethernet TCP/IP, or through the SNP port.
