Brand/Manufature:
GEProduct Origin:
USALead Time:
In StockCondition:
Brand NewCertificate:
Coo/Test report/Warranty letter|
Dimensions:4x22.5x29.2cm |
Processing speed:200 KHz |
|
Weight:0.62kg |
No. of output channels:Four (4) Positive Logic outputs |
|
Series：Series 90-70 |
Input Voltage:5 VDC; 10-30 VDC |
|
Input frequency:200 kHz in Type A, D and Type E in Up/Down Quad mode; 800 kHz at Type E in Quad B mode |
Output ratings:10 to 30 VDC @ 20 mA maximum |
|

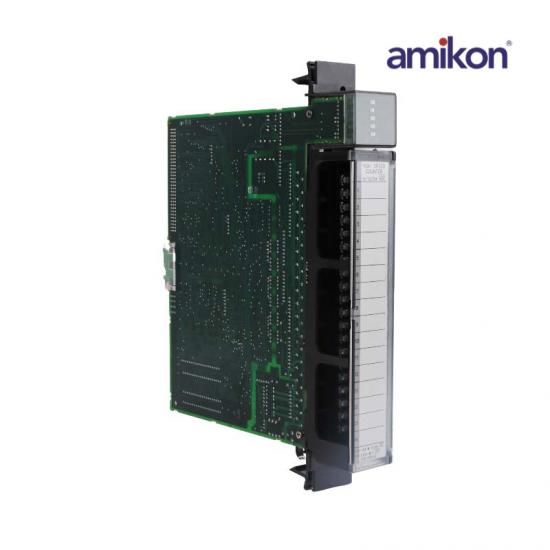

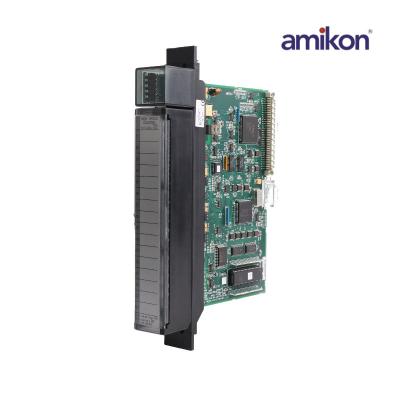

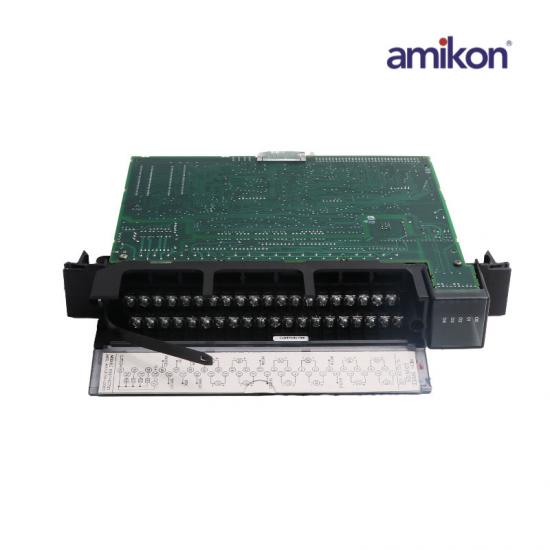

IC697HSC700 describe The IC697HSC700 is a Series 90-70, High-Speed counter module. This module is formerly produced by GE Fanuc, now acquired by Emerson. It is an optional module that features Twelve (12) single-ended or differential logic inputs operating at 5VDC or 10-30 VDC and Four (4) Positive Logic outputs providing 20 mA at 10-30 VDC output ratings. This high-speed counter module has a maximum count rate of 200 kHz in Type A, D, and Type E in Up/Down Quad mode and 800 kHz at Type E in Quad B mode. |
|
+86 18965423501
sales16@amikon.cn
AMKPLC
Question: What is an IC697HSC700?
Answer: The IC697HSC700 is a High Speed Counter from the GE Fanuc 90-70 Series.
Question: What does IC697HSC700 do?
nswer: IC697HSC700 directly processes rapid pulse signals up to 200 KHz (800 KHz for Type E in A Quad B mode).
Question: What are some of the Coming Soon... functions of this High Speed Counter?
nswer: IC697HSC700 can sense inputs, process input count data, and control its outputs without communicating with the PLC CPU.
Question: Because IC697HSC700 has a simple and user-friendly PLC interface, in what types of industrial applications does it make it extremely useful?
Answer:
Turbine flowmeter
Meter proving
Velocity measurement
Material handling
Motion control
Process control
Question: Configuration of IC697HSC700 is done through what?
Answer: Configuration of this High Speed Counter can be completed through the configuration function of the MS-DOS or Windows programming software running on Windows 95 or Windows NT over Ethernet TCP/IP or through the SNP port.
