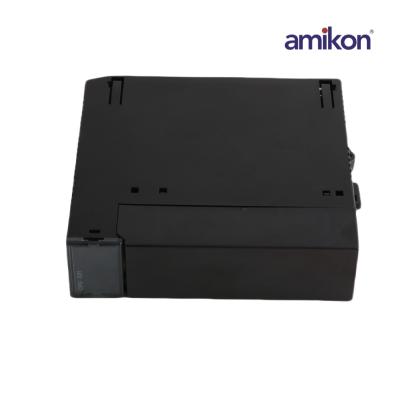

The HE693THM889 allows thermocouple temperature sensors to be connected to the PLC directly without external signal processing such as transducers, transmitters, etc. All analog and digital processing of the thermocouple signal is within the module. These modules have a resolution of 0.5°C, and temperature values may be reported to the PLC %AI I/O table in 0.5°C or 0.5°F increments.

Power Consumption 70mA @ 5VDC and 60mA @ 24V Relay

Number of Channels 8

Types Supported J, K, N, T, E, R, S,

Resolution 0.5°C

I/O Points Required 8%AI, 8%AQ, 16%I

Input Impedance >20Mohms

Maximum Sustained O/L +/-35V

Common Mode Range &+/- 12V

Common Mode Rejection >100dB

A/D Conversion Type Integrating

A/D Conversion Time 5 ms

Operating Temperature 0 to 60°C (32 to 140°F)

Relative Humidity 5% to 95% non-condensing
