Brand: GE

Series: PACSystem RX3i

Part Number: IC695NIU001

Product Description: Ethernet Network Interface Unit (ENIU)

Communication Ports: RS-232, RS-485

Product Line: RX3i

Supported Serial Protocols: Modbus RTU Slave, SNP, Serial I/O, Modbus RTU Master (via application "C" block)

Catalog: IC695

Integrated Memory: 10 MB

Product Type: Ethernet Network Interface Unit

Number of Slots: 1 (single slot)

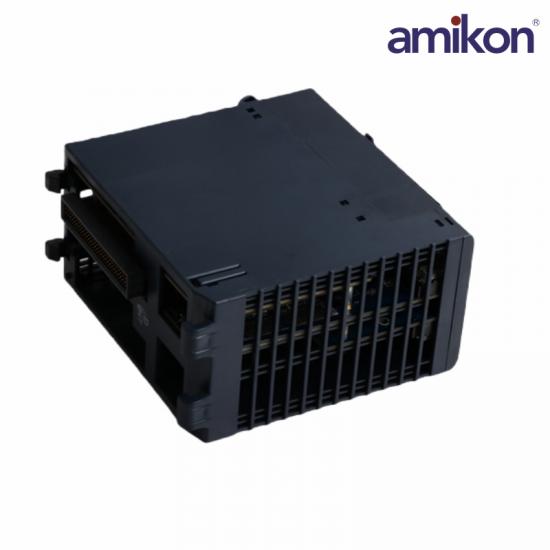

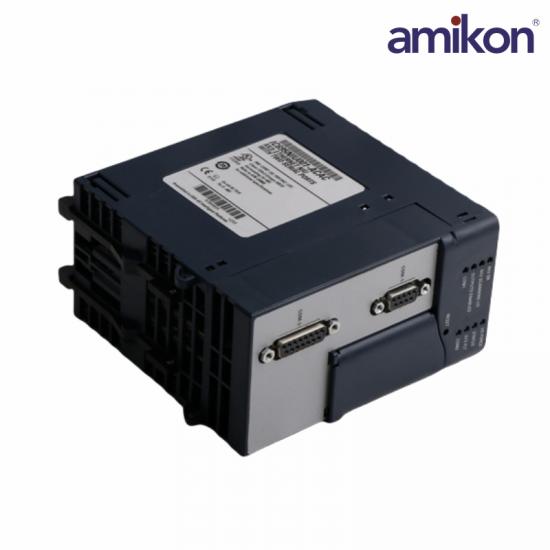

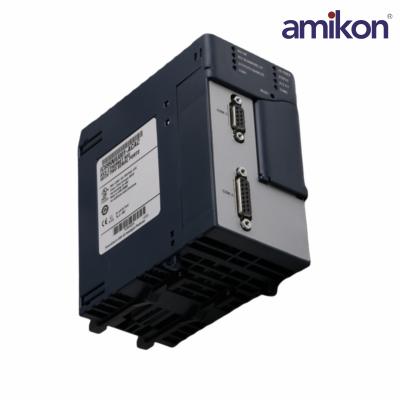

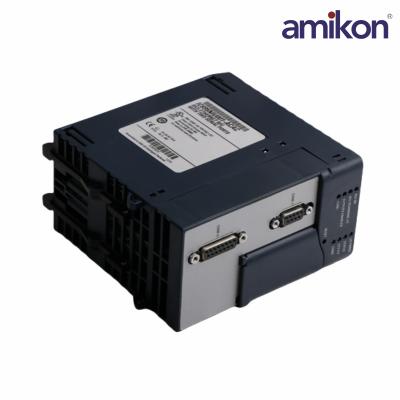

The IC695NIU001 is a PACSystems RX3i Ethernet Network Interface Unit (NIU). This module is manufactured by Emerson . It is a component module of an RX3i Ethernet NIU station assembly which consist of an RX3i universal backplane, an RX3i power supply module, minimum of a single RX3i Ethernet module and the IC695NIU001 module. This assembly which the IC695NIU001 is part of, enables RX3i systems, especially CPUs to communicate and perform data exchange between legacy Series 90-30 I/O modules. The IC695NIU001 is configured using the Machine Edition Logic Developer software, version 5.51 or later. It comes with COM1 and COM 2 communication interfaces, configurable for RS232 and RS485 communication, supporting serial protocols such as Modbus RTU Slave, SNP, Serial I/O, and Modbus RTU Master by application "C" block. The IC695NIU001 comes with 20Kbytes of optional local logic and 10 MB integrated Flash memory. It has a battery-backed clock which can be replaced with RX3i CPU Lithium Smart Battery with catalog number IC695ACC302 (recommended), Series 90-30 Lithium Battery Pack, IC693ACC302, or IC698ACC701 Smart Coin Cell Battery Pack. Additionally, the module’s pre-loaded firmware is upgradeable internally via the system. This module has a current draw of 1.25 Amps at +3.3 VDC: and 1.0 Amps at +5 VDC while the module’s operating temperature is 0degrees C to 60degrees C (32degrees F to 140degrees F). This module is compatible with PCI 2.2 standard. To simplify ordering, a NIU kit with catalog number IC695NTK001 or IC695NTK002 is made available to ensure that a complete system or assembly is properly configured.
