IC693MDL654 Field Wiring Worksheet

The following table is intended to facilitate the customer wiring of 32-point I/O modules with 24-pin connectors using IC693CBL315 cables. The table contains all necessary wiring information. The table contains the following information:

" Module Point Numbers: A1 - A8, B1 - B8, C1 - C8, D1 - D8, Voltage Points, and Common Points

" Connector Pin Numbers: A1 to A12 and B1 to B12

" Cable Pair Numbers: 1 Pair to 12 Pairs

" Wire Color Code: Base Color or Base Color plus Tracer Color

In addition, columns are provided for Circuit Reference Number and Customer Wire Number. When wiring a 5/12 VDC (TTL) Positive/Negative Logic 32-point Input Module,

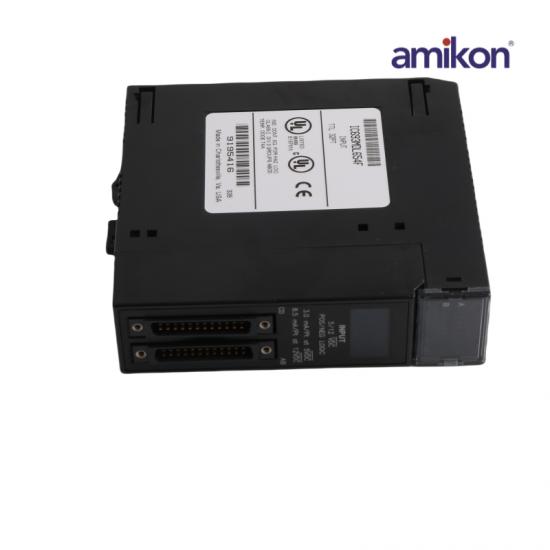

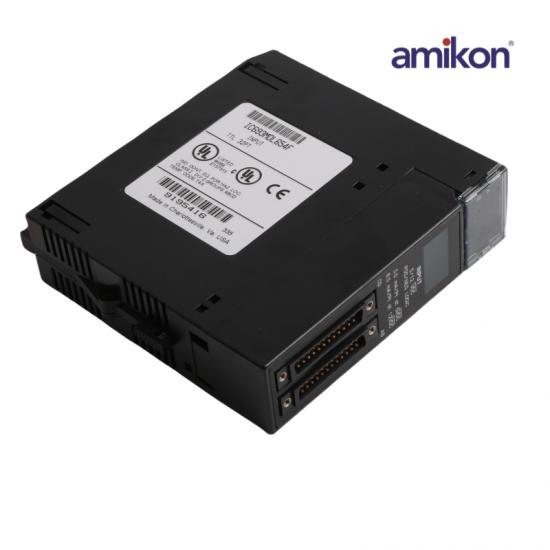

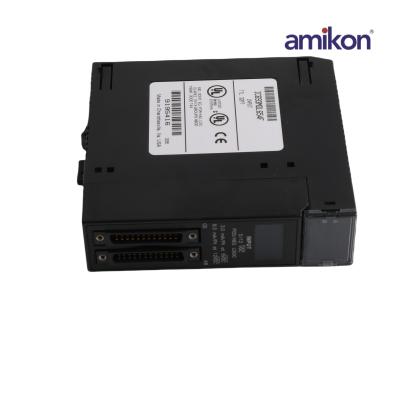

The IC693MDL654 module is manufactured by GE Fanuc. It is a 5/12 Volts DC TTL positive or negative logic module with up to 32 input points.

The IC693MDL654 module is a programmable logic controller component classified under the Series 90-30 of the GE Fanuc PLCs. The input module is designed to ensure it meets the demands for versatile industrial applications. Featuring the GE Fanuc overall control architecture, the IC693MDL654 module is ideal for different applications like high-speed packaging, material handling, and complex motion control applications. THE IC693MDL654 module offers unmatchable versatility with its modular design. By configuring the unit properly, the users save critical installation space and ensure cost reductions. The IC693MDL654 module supports Ethernet communication. Through the Ethernet communication, the IC693MDL654 module achieves a real-time link for real-time monitoring. During installation, the IC693MDL654 module allows the installers to begin with the EtherNet Enabled CPU or to choose a rack-mounted EtherNet module later.
