This CPU requires a 350-milliamp load from the power supply, which should have a rate of +5V DC. With a processor speed of 10 Megahertz, the IC693CPU331 utilizes an 80188 processor. The ambient operating temperature ranges from 0°C to 60°C or 32°F to 140°F.

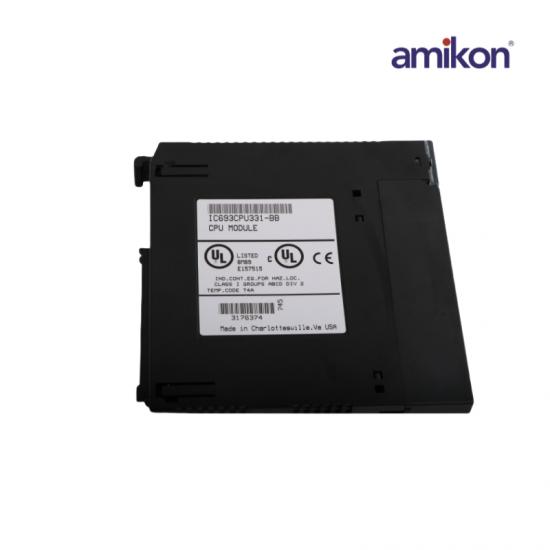

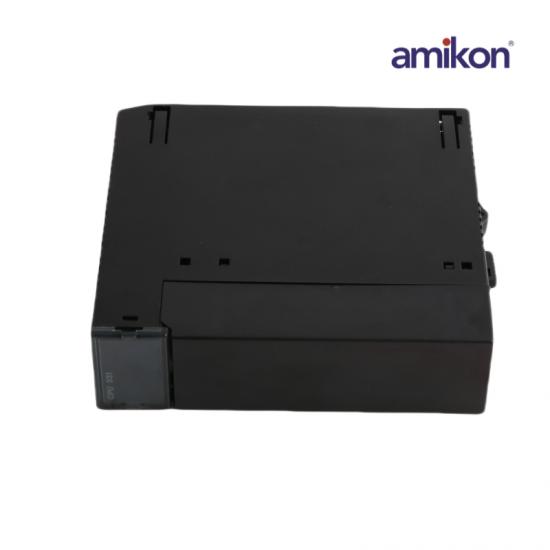

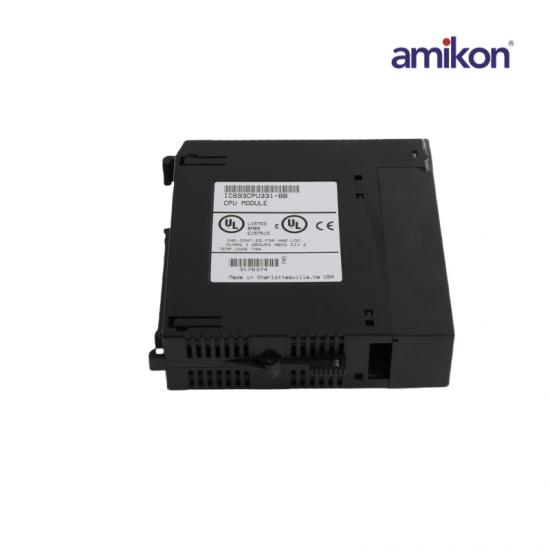

The IC693CPU331 is a modular CPU, which includes the CPU, a memory chip, an integrated associated circuit chip which is soldered to a circuit board, and the backplane board. The CPU module is inserted into the backplane, which is possible because the IC693CPU331 is a plug-in module.

The user must always install the CPU module into slot 1 of the baseplate. Remote baseplate and expansion are features that Modular CPU supports. This CPU model has a scan rate per 1 K of logic, or we can say the Boolean contacts is typically 0.4 milliseconds. There is a maximum of 16K bytes of program memory available for the user. There are also 128 bits reserved for references to the System Status.

The IC693CPU331 supports multiple modes of communication including LAN with multidrop support and Ethernet. This module supports other communication modules, such as FIP, GBC, GCM, and GCM+. IC693CPU331 also supports features including override and a battery powered clock. However, interrupts are currently not supported. RAM and EEPROM or EPROM (optional) are the supported memory storage types. It is also compatible with PCM/CCM.
