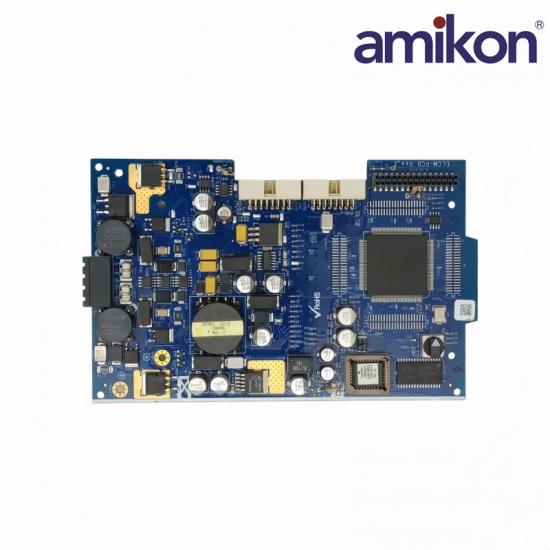

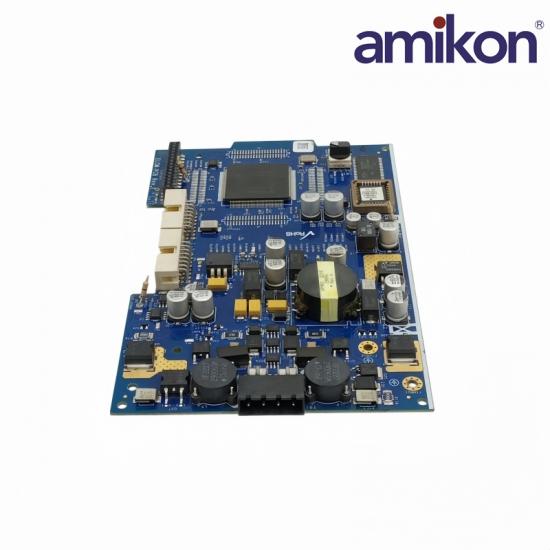

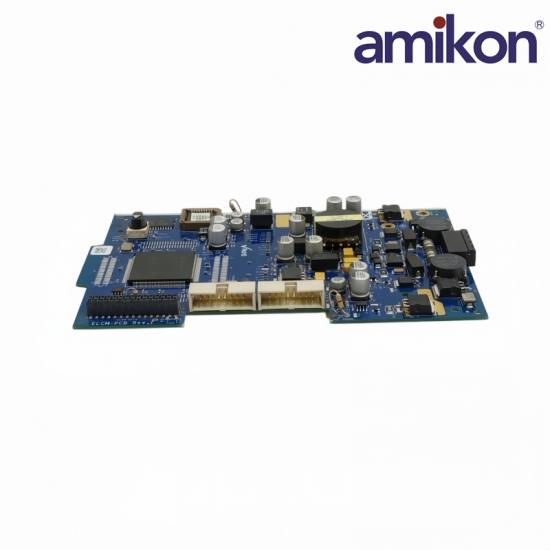

NOTIFIER LCM-320 Loop Control Module

LCM-320
LCM-320
LCM-320

NOTIFIER LCM-320 Loop Control Module

✉  INQUIRE NOW

NOTIFIER · NOTIFIER Onyx

LCM-320

Loop Control Module

MANUFACTURERNOTIFIER
MODELLCM-320
PART NUMBERLCM-320
PRODUCT TYPELoop Control Module
SYSTEM FAMILYNOTIFIER Onyx
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    LCM-320
  • Product Origin:

    Confirm by product label
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    NOTIFIER
  • Product Origin:

    Confirm by product label
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

NOTIFIER NOTIFIER Onyx

LCM-320

Price and Availability Inquiry

Plug-in signaling-line-circuit loop control module for compatible NOTIFIER fire alarm panels.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model LCM-320 and required quantity in your inquiry.

NOTIFIER LCM-320

Technical Specifications

Identification, performance, interface and installation data for the Loop Control Module.

01 Product Identity Core product information
Manufacturer Honeywell NOTIFIER
Model LCM-320
Module Type Loop Control Module
Panel Family NFS-3030 / NFS2-3030
02 Electrical & Loop Data Published manufacturer data
Nominal Voltage 24 V DC
Maximum Voltage 27.6 V DC
Module Current Draw 130 mA
Maximum Loop Current 400 mA
03 Wiring Limits Electrical and interface data
Maximum Loop Length 12,500 ft / 3,810 m
Conductor Size 12 to 18 AWG twisted pair
Maximum Loop Resistance 50 Ω
Maximum Loop Capacitance 0.5 µF
04 Capacity & Expansion Application and service data
FlashScan Capacity 159 detectors + 159 modules
CLIP Capacity 99 detectors + 99 modules
Modules per Panel Up to 5 LCM-320
Expansion One LEM-320 per LCM-320

NOTIFIER LCM-320 Product Support

Frequently Asked Questions

Product-specific configuration, application and ordering guidance for LCM-320

01

Which panels accept the LCM-320?

Honeywell documents the module for compatible NOTIFIER systems including NFS-3030 and NFS2-3030.

02

How many addressable devices can one loop support?

In FlashScan mode the loop supports up to 159 detectors and 159 modules; CLIP mode supports 99 of each.

03

What is the maximum SLC wiring length?

The published maximum is 12,500 ft or 3,810 m using 12 AWG twisted pair, subject to resistance and capacitance limits.

04

Can an expansion loop be added?

Yes. One LEM-320 loop expander can be connected to each LCM-320.

05

How many LCM-320 modules can a panel use?

The listed panels accept up to five LCM-320 modules, with up to five additional loops through LEM-320 expanders.

06

Which loop electrical limits must be checked?

Keep resistance within 50 Ω, capacitance within 0.5 µF and loop current within 400 mA.

07

What should be verified before installation?

Confirm panel firmware, available chassis position, SLC device protocol, wiring calculation and local approval requirements.
