ABB SDCS-PIN-4-COAT 3ADT314100R1001 DCS800 Power Interface Board

SDCS-PIN-4-COAT 3ADT314100R1001
SDCS-PIN-4-COAT 3ADT314100R1001
SDCS-PIN-4-COAT 3ADT314100R1001

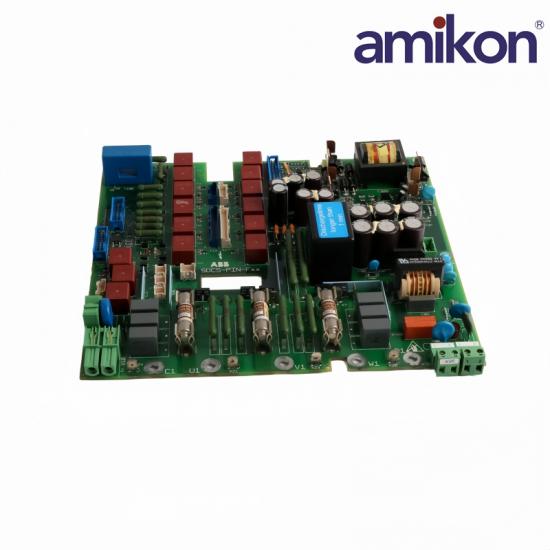

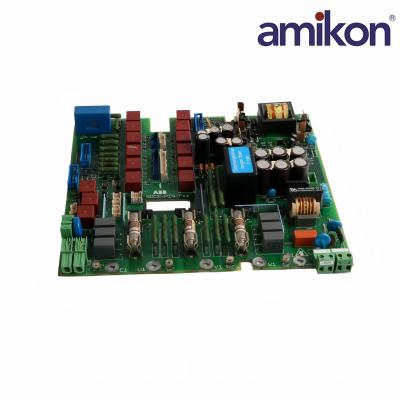

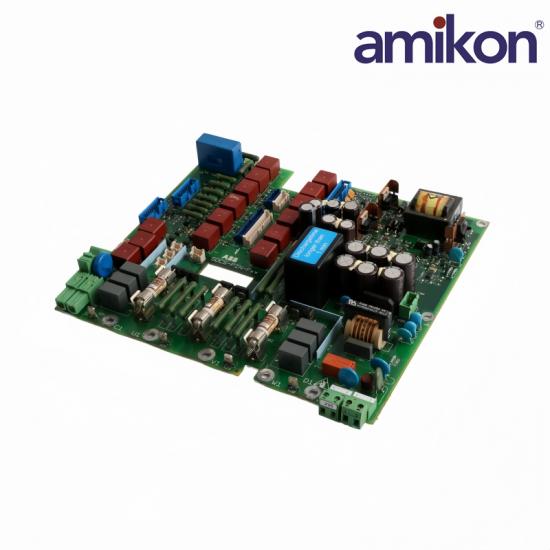

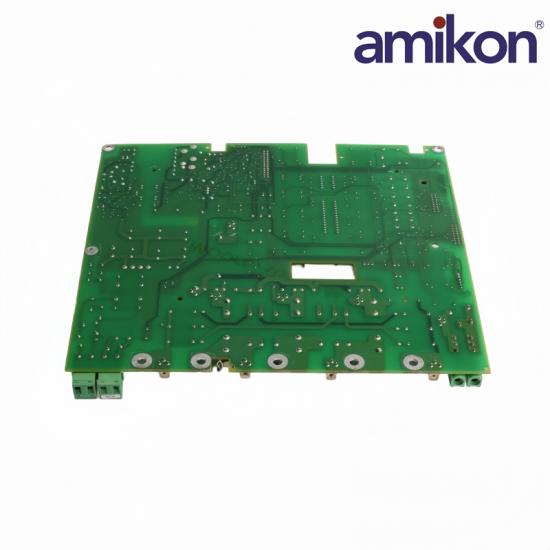

ABB SDCS-PIN-4-COAT 3ADT314100R1001 DCS800 Power Interface Board

✉  INQUIRE NOW

ABB · SDCS-PIN-4-COAT

3ADT314100R1001

Power Interface Board

MANUFACTURERABB
MODEL3ADT314100R1001
PART NUMBER3ADT314100R1001
PRODUCT TYPEPower Interface Board
SYSTEM FAMILYDCS800
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    SDCS-PIN-4-COAT 3ADT314100R1001

  • Product Origin:

    China (CN) / Thailand (TH)

  • Lead Time:

    IN STOCK

  • Weight:

    800

  • Brand/Manufature:

    ABB

  • Product Origin:

    China (CN) / Thailand (TH)

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

ABB SDCS-PIN-4-COAT

3ADT314100R1001

Price and Availability Inquiry

ABB SDCS-PIN-4-COAT power interface board for the DCS800 drive family, ordered as product ID 3ADT314100R1001. Check the drive hardware revision and supplied board label before replacement.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 3ADT314100R1001 and required quantity in your inquiry.

ABB 3ADT314100R1001

Technical Specifications

ABB manual-based technical data for 3ADT314100R1001.

01Product IdentityExact product identification
ManufacturerABB
Product ID3ADT314100R1001
Type DesignationSDCS-PIN-4-COAT
Product TypePower Interface Board
02DCS800 IntegrationDrive-family integration data
Host SystemDCS800 DC drives
Converter SizesD1–D4
System Current Range20–1000 A (D1–D4 modules)
Board FunctionsControl-board power; armature bridge and field-exciter control
03Electrical & FunctionABB manual interface data
Auxiliary Input X99115 / 230 V AC
S1 Jumper1–2 automatic (default); 2–3 fixed 230 V
Relay X96 (DO8)NO; 250 V AC / 24 V DC, max. 3 A
Field ExciterOn-board for D1–D4 only
04Hardware & ConfigurationABB manual and product-record data
Net Weight0.8 kg
On-board Field SupplyUp to 525 V AC (D1–D4 modules)
Board Fuses3 × KTK 25; 25 A / 600 V
Converter IdentificationTYPECODE parameter 97.01 (not board hardware)

ABB 3ADT314100R1001 Product Support

Frequently Asked Questions

Product-specific configuration, application, installation and ordering guidance for 3ADT314100R1001.

01

How should procurement identify the coated board?

Specify both SDCS-PIN-4-COAT and ABB product ID 3ADT314100R1001; confirm the supplied label and drive bill of materials.

02

Which DCS800 sizes list this exact ABB product ID?

ABB’s service-parts table lists 3ADT314100R1001 for D1–D4 modules. Check the installed drive bill of materials and hardware revision before fitting.

03

Which functions does this interface board support?

The PIN-4 family handles the low-voltage drive supply, armature bridge control, voltage sensing and current-transformer interface.

04

How is the X99 auxiliary supply selected?

The manual lists 115/230 V AC at X99. Jumper S1 positions 1–2 provide automatic selection (default), while 2–3 fix 230 V. Follow ABB service procedures.

05

Does the 20–1000 A range rate this board?

No. ABB lists 20–1000 A for the associated D1–D4 converter modules; it is not a standalone board output-current rating.

06

Where is the onboard field exciter used?

ABB documents onboard field-exciter control for D1–D4 converters only, not D4+. Check the drive configuration before replacement.

07

Which replacement should be evaluated for migration?

ABB lists 3ADT316300R1510 as the replacement product ID. Verify electrical, mechanical and firmware compatibility before substituting it.
