Bently Nevada 144181-51-05 3300 XL 11 mm Proximitor Sensor

144181-51-05
144181-51-05
144181-51-05

Bently Nevada 144181-51-05 3300 XL 11 mm Proximitor Sensor

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 11 MM

144181-51-05

3300 XL 11 mm Proximitor Sensor

MANUFACTURERBently Nevada
MODEL144181-51-05
PART NUMBER144181-51-05
PRODUCT TYPEEddy-Current Proximitor Sensor
SYSTEM FAMILY3300 XL 11 mm
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    144181-51-05
  • Product Origin:

    USA
  • Brand/Manufature:

    Bently Nevada
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Bently Nevada 3300 XL 11 mm

144181-51-05

Price and Availability Inquiry

The 144181-51-05 is Official electrical, performance, mounting and approval data for the 144181-51-05 3300 XL 11 mm Proximitor Sensor..

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 144181-51-05 and required quantity in your inquiry.

144181-51-05

Technical Specifications

Official 3300 XL 11 mm system data from Baker Hughes datasheet 146256 Rev. T, with the legacy 144181 article and approval option confirmed by the official approvals guide.

01Product IdentityLegacy article and current system reference
ManufacturerBently Nevada
Article Number144181-51-05
Product Designation3300 XL 11 mm Proximitor Sensor
Official References146256 Rev. T / 108M1756 Rev. AL
02Electrical DataPublished Proximitor sensor characteristics
Sensor InputOne 3300 XL 11 mm probe and extension cable
Power Supply-17.5 to -26 Vdc, 12 mA maximum
Barrier Supply-23 to -26 Vdc
Output Resistance50 ohm
03System ConfigurationDecoded mounting and approval options
System Length5.0 m
MountingDIN rail (option 51)
Approval Option05 - multiple approvals
Field Wiring0.2 to 1.5 mm2 (16 to 24 AWG), up to 305 m
04Measurement PerformanceOfficial 3300 XL 11 mm system data
Linear Range4.0 mm (160 mils)
Recommended Gap2.5 mm (100 mils)
Scale Factor3.94 V/mm (100 mV/mil), +/-10%
Measurement Band0 to 8 kHz

144181-51-05 Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for 144181-51-05.

01

Which transducer components can be paired with 144181-51-05?

Use a 3300 XL 11 mm probe and matching extension cable whose combined electrical length corresponds to the 5.0 m Proximitor calibration.

02

How is this sensor mounted in the cabinet?

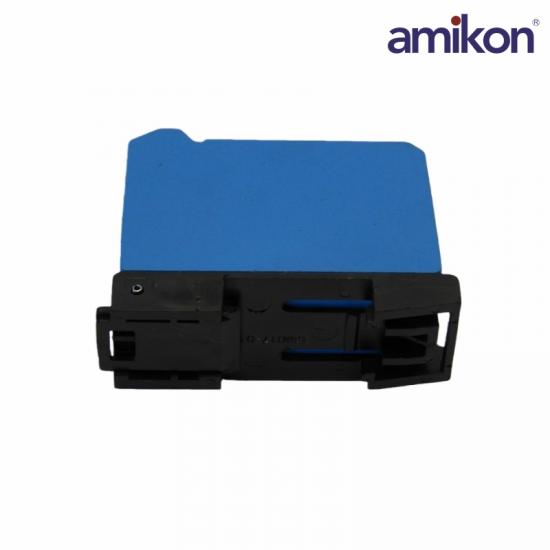

Ordering option 51 identifies a 5.0 m system with DIN-rail mounting hardware.

03

Which power supply range should be verified before energizing?

Confirm a negative supply from -17.5 to -26 Vdc without barriers and follow the approved installation drawing when barriers are used.

04

Which gap should be used during commissioning?

Set the 11 mm probe near 2.5 mm (100 mil) from the target and confirm the output remains within the 4.0 mm linear range.

05

Which scale factor should the monitoring channel use?

Configure the channel for 3.94 V/mm (100 mV/mil) when the complete system is calibrated to AISI 4140 steel.

06

Are hazardous-area approvals included in this version?

Suffix 05 identifies the multiple-approval configuration; verify the site certificate and installation drawing before service.

07

Which details should accompany a replacement inquiry?

Provide 144181-51-05, the installed probe and extension-cable numbers, target material, mounting style and label photographs.
