Bently Nevada 330881-16-10-100-03-02 PROXPAC XL Proximity Transducer Assembly

330881-16-10-100-03-02
330881-16-10-100-03-02
330881-16-10-100-03-02

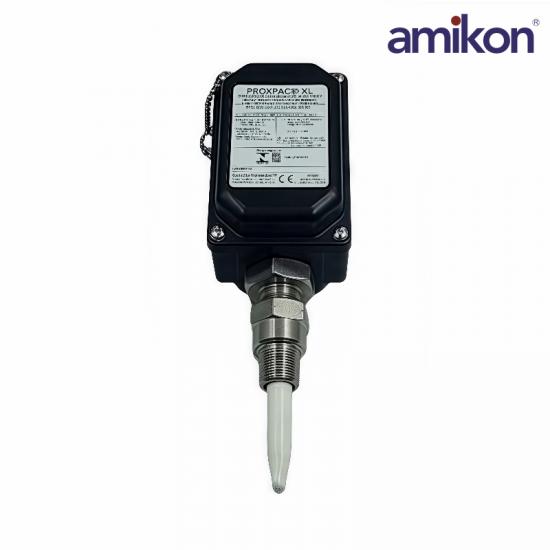

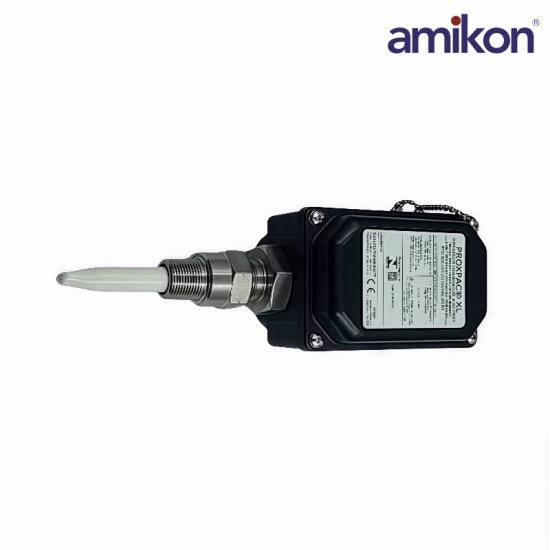

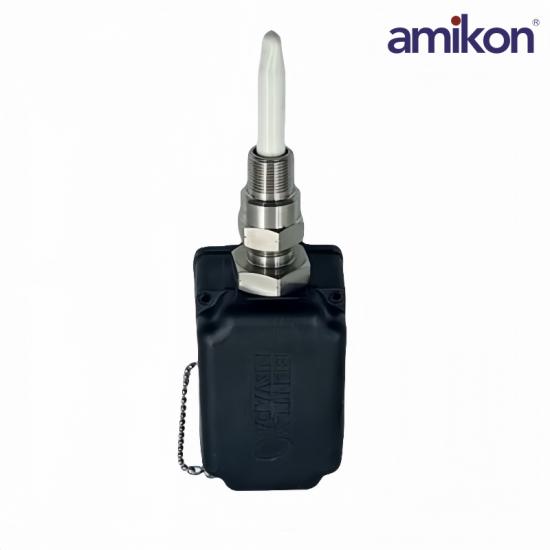

Bently Nevada 330881-16-10-100-03-02 PROXPAC XL Proximity Transducer Assembly

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 8 MM / PROXPAC XL

330881-16-10-100-03-02

PROXPAC XL Proximity Transducer Assembly

MANUFACTURERBently Nevada
MODEL330881-16-10-100-03-02
PART NUMBER330881-16-10-100-03-02
PRODUCT TYPEIntegrated Eddy-Current Proximity Transducer
SYSTEM FAMILY3300 XL 8 mm / PROXPAC XL
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330881-16-10-100-03-02

  • Product Origin:

    USA

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Bently Nevada 3300 XL 8 mm / PROXPAC XL

330881-16-10-100-03-02

Price and Availability Inquiry

The 330881-16-10-100-03-02 is Official configuration, measurement-performance, housing and installation data for the Bently Nevada 330881-16-10-100-03-02 PROXPAC XL assembly..

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 330881-16-10-100-03-02 and required quantity in your inquiry.

330881-16-10-100-03-02

Technical Specifications

Official configuration, enclosure and performance data decoded from Baker Hughes datasheet 178554 Rev. E for the metric PROXPAC XL assembly.

01Product IdentityOfficial product and document reference
ManufacturerBently Nevada
Article Number330881-16-10-100-03-02
Product DesignationPROXPAC XL Proximity Transducer Assembly
Datasheet Reference178554 Rev. E
02Ordering ConfigurationDecoded metric part-number options
Probe Option3300 XL 8 mm probe without approvals (16)
Standoff Adapter100 mm (option 10)
Probe Penetration100 mm (option 100)
Mounting Thread3/4-14 NPT (option 02)
03Housing & FittingsPublished mechanical configuration
Fittings KitOne M20 fitting and two plugs (option 03)
Housing RatingType 4X / IP66
Housing MaterialUV-resistant glass-reinforced PPS with conductive fibers
Probe Cable1 m, 75 ohm triaxial, FEP insulated
04Measurement PerformancePublished 1 m PROXPAC XL system data
Linear Range2.0 mm (80 mils)
Recommended Gap1.27 mm (50 mils)
Scale Factor7.87 V/mm (200 mV/mil), +/-5%
Frequency Response0 to 10 kHz (+0, -3 dB)

330881-16-10-100-03-02 Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for 330881-16-10-100-03-02.

01

How should this assembly be matched to the monitoring system?

Use it with a compatible 3300 XL 8 mm monitoring channel and preserve the correct transducer-system calibration for the installed AISI 4140 steel target.

02

Which installation dimensions are encoded in 330881-16-10-100-03-02?

The code specifies a 100 mm standoff adapter, 100 mm probe penetration and a 3/4-14 NPT mounting thread.

03

Which fittings are included with this configuration?

Option 03 supplies one M20 fitting and two plugs for the PROXPAC XL housing.

04

How should the probe gap be set for radial-vibration service?

Set the probe near the center of the linear range, approximately 1.27 mm (50 mil), and verify an output near -9 Vdc under the specified target conditions.

05

Which performance values should be checked during commissioning?

Verify approximately 7.87 V/mm sensitivity, a 2.0 mm linear range and the required 0 to 10 kHz frequency response for the complete system.

06

Can this exact option be used where hazardous-area approvals are mandatory?

Option 16 specifies the 3300 XL 8 mm probe without approvals; select and verify the approved ordering option when the site classification requires certification.

07

Which details should be supplied when ordering a replacement?

Provide the complete model code, installed target material, mounting dimensions, application, monitoring channel and clear label photographs.
