Description：

The Bently Nevada 3500/65 Series 16-Channel Temperature Monitors provide 16 channels of temperature monitoring and accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) temperature inputs. The monitor conditions these inputs and compares them against user-programmable alarm setpoints.

The monitor is programmed using the 3500 Rack Configuration Software. You can configure the 16-Channel Temperature Monitor to accept isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs.

In Triple Modular Redundant (TMR) configurations, you must install temperature monitors in groups of 3 adjacent monitors. In this configuration the monitor uses 2 types of voting to ensure accurate operation and to avoid single-point failures.

Specification：

Frequently asked questions

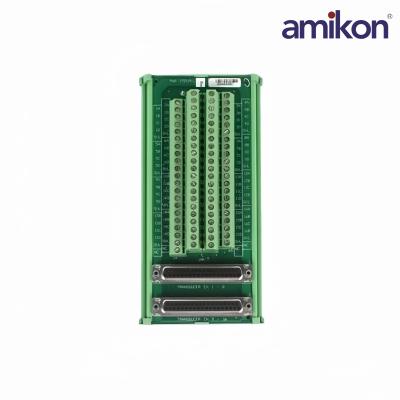

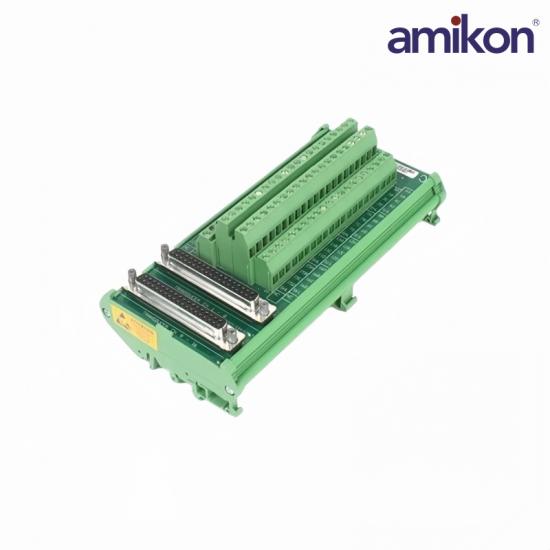

Q1: What is the Bently Nevada 172115-01?

A1: It is an external termination block used with Bently Nevada monitoring systems to provide organized and secure field wiring connections for multiple input channels.

Q2: How many channels does it support?

A2: The 172115-01 termination block supports 16 channels, enabling connection of multiple sensors or input signals.

Q3: What is the 172115-01 input impedance?

A3: The 172115-01 input impedance is greater than 1 MΩ per channel, ensuring minimal signal loading and accurate measurements.

Q4: What is the 172115-01 common mode voltage rating?

A4: The 172115-01 common mode voltage is rated at 250 V RMS, providing robust electrical isolation and protection.

Q5: What is the 172115-01 operating temperature range?

A5: It operates within −40°C to +85°C, suitable for harsh industrial environments.

Product Applications

Power Industry: Monitors bearing and stator winding temperatures in gas turbines, steam turbines, and generators to prevent equipment damage due to overheating.

Oil and Gas Industry: Used for condition monitoring of large compressors, pump sets, and centrifuges to ensure safe operation in harsh environments such as flammable and explosive conditions.

Chemical and Petrochemical Industries: Provides precise temperature data acquisition for large reactor drives, motors, and agitators in complex processes.

Heavy Industrial Manufacturing: Large transmission systems in steel mills and paper mills monitor bearing and housing temperatures to achieve asset protection and fault early warning.

Features:

Provides 16 Channels of Temperature Monitoring

Accepts Both RTD and TC Temperature Inputs

Configurable to Accept Isolated Tip Thermocouples, 3-Wire RTD, 4-Wire RTD, or a Combination of TC and RTD Inputs
