Description：

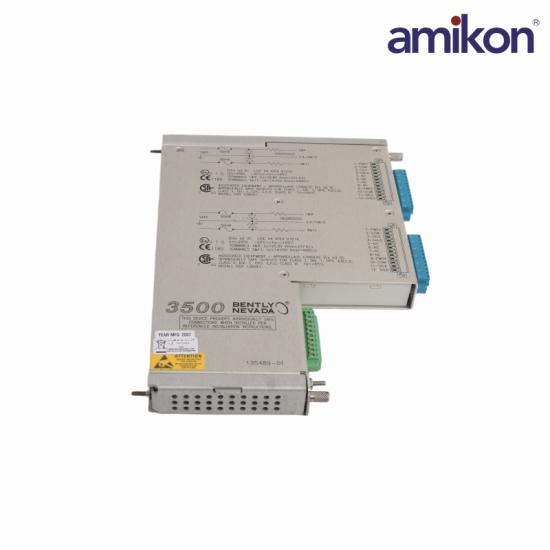

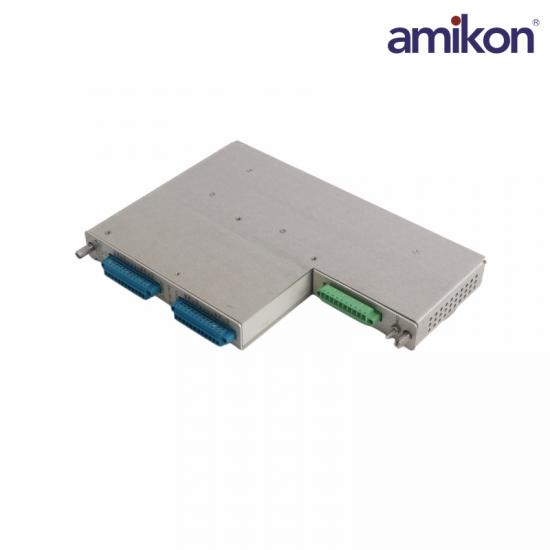

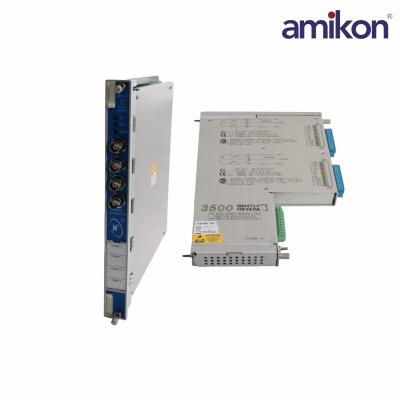

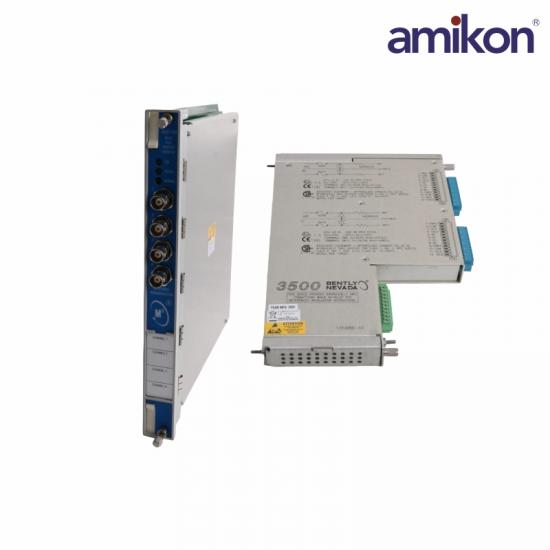

The four-channel Bently NevadaTM 3500/72M Recip RodPosition Monitor accepts input from proximity transducers,conditions the signal to provide dynamic and static positionmeasurements, and compares the conditioned signals withuser-programmable alarms.

Each channel, depending on how you configure it, typicallyconditions its input signal to generate various parameterscalled measured values.

Use the 3500 Rack Configuration Software to:

Configure alert setpoints for each active measuredvalue and danger setpoints for any two of the activemeasured values.

Protect reciprocating compressors by continuouslycomparing monitored parameters against configuredalarm setpoints to display alarms and trigger relays, ifneeded.

Monitor the condition of essential reciprocatingcompressor machinery.

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 3500/72M Position Monitor Module?

A1: It is a position monitoring module used in the 3500 system to measure and monitor shaft position, valve position, and other displacement-related parameters in rotating machinery.

Q2: What is the 3500/72M input impedance?

A2: The 3500/72M input impedance is 10 kΩ, ensuring proper signal acquisition from connected transducers.

Q3: What is the 3500/72M nominal power consumption?

A3: The 3500/72M module consumes approximately 7.7 watts during operation.

Q4: What is the 3500/72M output impedance?

A4: The 3500/72M output impedance is 510 Ω, supporting stable signal transmission to connected systems.

Q5: What is the 3500/72M transducer power supply?

A5: The 3500/72M module provides a −24 V DC power supply for connected transducers.

Product Applications

Oil & Gas: Protection for reciprocating compressors in refineries, natural gas gathering stations, and offshore platforms.

Petrochemical: Monitoring critical reciprocating power equipment in chemical production processes, assessing rider band wear through rod drop measurement.

Power Generation: Condition monitoring of reciprocating water pumps or air compressors in power plant auxiliary equipment to ensure stable operation of production systems.

Metallurgical Industry: Monitoring the piston and rod position status of hydraulic systems and large reciprocating compressors in steel mills and metal processing plants.
