Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooFor additional discounts, please contact our five-star sales manager Lisa Lin.
|
|
Description：

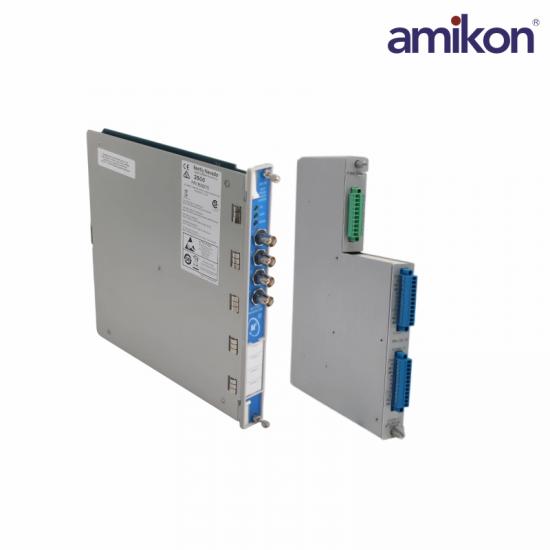

The Bently NevadatM 3500/70M Recip Impulse Velocity Monitoris a 4-channel device used as part of the reciprocatingcompressor solutions package to monitor compressorcrankcase and crosshead vibration. The monitor acceptsinput from seismic transducers, conditions the signal toderive vibration measurements, and compares theconditioned signals with user-programmable alarms.You can program each channel using the 3500 RackConfiguration Software to perform the following functions:
Impulse Acceleration
Acceleration 2
Recip Velocity
Low Frequency Recip Velocity
Specification：
|
Manufacturer |
Bently Nevada |
|
Part Number |

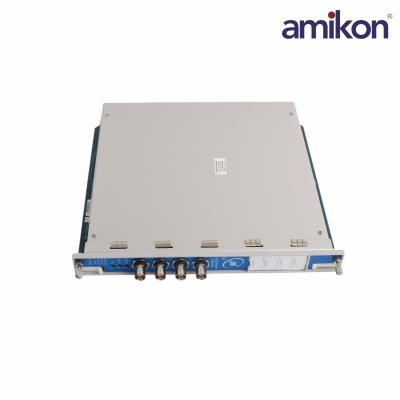

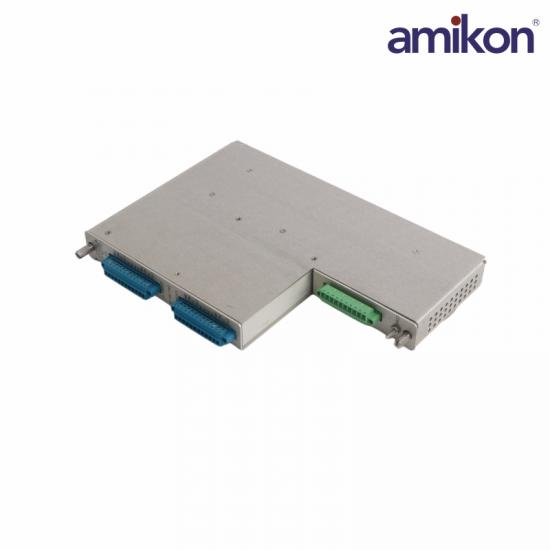

3500/70M 176449-09+135489-01 |
|
Product Type |
Recip Impulse Velocity Monitor |
|
Input Impedance – Acceleration Input |
10 kΩ |
|
Input Impedance – Velocity Input |
>1 MΩ |
|
Special Inhibit |
Contact closure, 5 Vdc @ 390 μA typical |
|
Nominal Power Consumption |
7.7 watts |
|
Impulse Acceleration Sensitivity |
0.51 – 11.72 mV/(m/s²)；5 – 115 mV/g |
|
Acceleration 2 Sensitivity |
0.51 – 11.72 mV/(m/s²)；5 – 115 mV/g |
|
Reciprocating Velocity Sensitivity |
3.54 – 22.64 mV/(mm/s)；90 – 575 mV/(in/s) |
|
Low Frequency Recip Velocity Compliance |
+12 Vdc maximum |
|
Maximum Load Resistance |
600 Ω |
|
Maximum Resolution |
0.3662 µA |
|
Update Rate |
< 100 millisecond |
|
Typical Output Impedance |
550 Ω |
|
Minimum Voltage |
-22 Vdc |
Frequently asked questions
Q1: What is the Bently Nevada 3500/70M Recip Impulse Velocity Monitor?
A1: It is a monitoring module used in the 3500 system to measure reciprocating machinery vibration using impulse velocity techniques, providing critical data for machinery protection and diagnostics.
Q2: What is the 3500/70M 176449-09 low-frequency reciprocating velocity compliance?
A2: The low-frequency reciprocating velocity compliance is up to +12 V DC maximum.
Q3: What is the 3500/70M 176449-09 maximum load resistance?
A3: The 3500/70M 176449-09 module supports a maximum load resistance of 600 Ω, suitable for standard 4–20 mA output loops.
Q4: What is the 3500/70M typical output impedance?
A4: The 3500/70M typical output impedance is 550 Ω, ensuring stable signal transmission.
Q5: What is the 3500/70M minimum operating voltage?
A5: The 3500/70M minimum voltage is −22 V DC, required for proper module operation.
Product Applications
Oil & Gas Industry: Reciprocating natural gas compressors, process gas compressors.
Petrochemical Industry: Hydrogen compressors, syngas compressors, feedstock gas compressors, etc.
Energy & Power: Auxiliary systems for large generator sets.
Industrial Manufacturing: Industrial gas manufacturing companies.
