Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooFor additional discounts, please contact our five-star sales manager Lisa Lin.
|
|
Description：

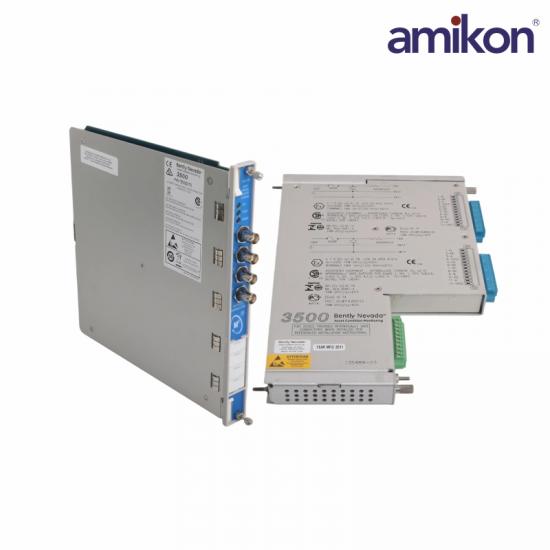

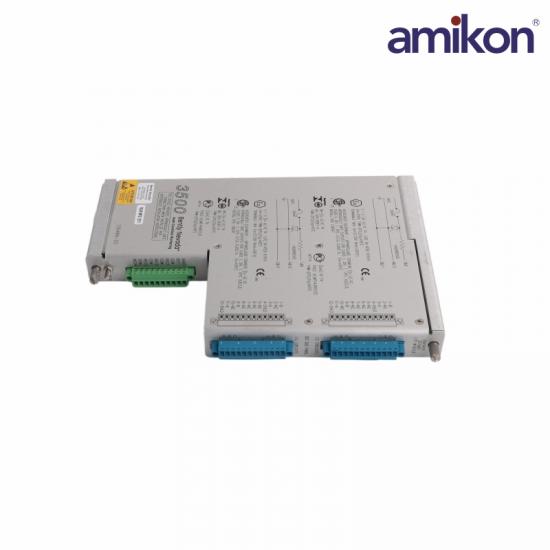

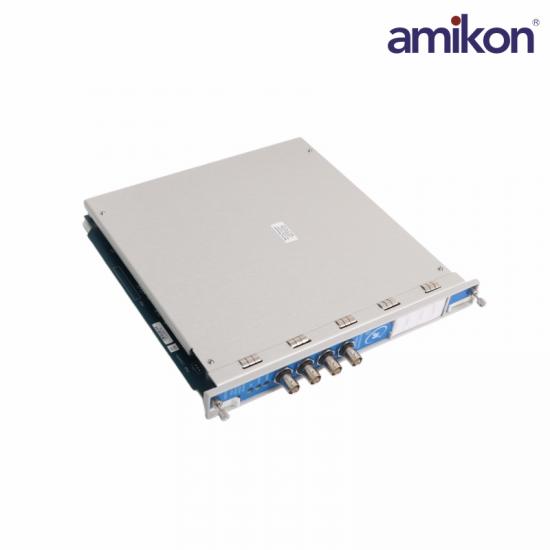

The Bently Nevada 3500/70M 176449-09 is a 4-channel Recip Impulse/Velocity Monitor Module designed for reciprocating compressor protection. It utilizes the 135489-03 Input/Output (I/O) module, which features internal safety barriers and internal terminations specifically for 4 x Velomitor inputs. It monitors crankcase and crosshead vibration.
The Bently NevadaM 3500/70M Recip Impulse Velocity Monitoris a 4-channel device used as part of the reciprocatingcompressor solutions package to monitor compressorcrankcase and crosshead vibration. The monitor acceptsinput from seismic transducers, conditions the signal toderive vibration measurements, and compares theconditioned signals with user-programmable alarms.
Specification：
|
Manufacturer |
Bently Nevada |
|
Part Number |
3500/70M 176449-09+135489-03 |
|
Product Type |
Recip lmpulse Velocity Monito |
|
Input Impedance – Acceleration Input |
10 kΩ |
|
Input Impedance – Velocity Input |
> 1 MΩ |
|
Special Inhibit |
Contact closure, 5 Vdc @ 390 μA typical |
|
Nominal Power Consumption |
7.7 W |
|
Typical Output Impedance |
550 Ω |
|
Voltage Compliance |
+12 Vdc maximum |
|
Maximum Load Resistance |
600 Ω |
|
Maximum Resolution |
0.3662 µA |
|
Update Rate |
< 100 ms |
Frequently asked questions
Q1: What is the Bently Nevada 3500/70M Recip Impulse Velocity Monitor?
A1: It is a monitoring module in the 3500 system designed to measure vibration in reciprocating machinery using impulse velocity analysis, helping ensure equipment protection and performance.
Q2: What is the 3500/70M 176449-09 nominal power consumption?
A2: The 3500/70M 176449-09 module consumes approximately 7.7 W during operation.
Q3: What is the 3500/70M typical output impedance?
A3: The 3500/70M typical output impedance is 550 Ω, ensuring stable signal transmission to connected systems.
Q4: What is the 3500/70M voltage compliance?
A4: The 3500/70M voltage compliance is up to +12 V DC maximum, supporting proper current loop operation.
Q5: What is the 3500/70M maximum load resistance?
A5: The 3500/70M maximum load resistance is 600 Ω, suitable for standard 4–20 mA output loops.
Product Applications
Oil & Gas Industry: Used in natural gas booster stations, injection compressors, and process compressors.
Petrochemical & Chemical Industry: Used in high-risk, critical processes such as ammonia synthesis compressors, hydrogen compressors, and ethylene compressors.
Refineries: Hydrogen cycle units and various reciprocating compressor units.
Energy & Utilities: Power plants using reciprocating gas engines.
Payment & Delivery
Payment Term: T/T
Lead Time: Usually 2-3 days
