Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooClaim Your Exclusive Savings – Get in Touch with Sales Manager Lisa Lin Now
: +86-18965423501
: sales7@amikon.cn
:AMKPLC
|
Model Number |
190501-04-99-04 |
|
Mounting Hardware ( 04) |
Stud M6x1 with 3/8-in 24 adapter |
|
Connection Mode ( 99) |
Unit with included 32-foot cable |
|
Certification Approval ( 04) |
CSA/NRTL/C (Class I, Division 1), ATEX/IECEx/CSA (Class I, Zone 0/1) |

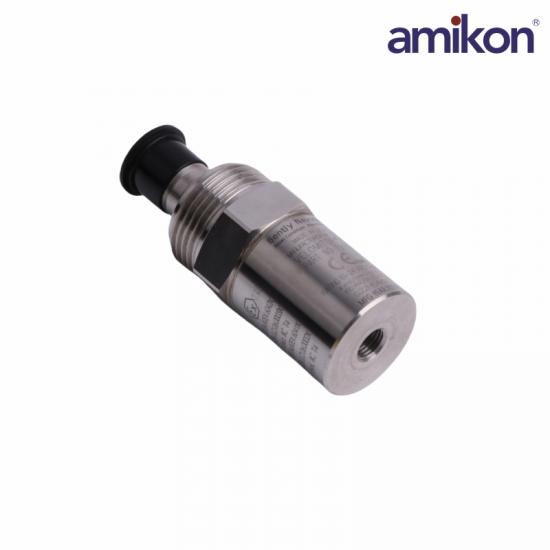

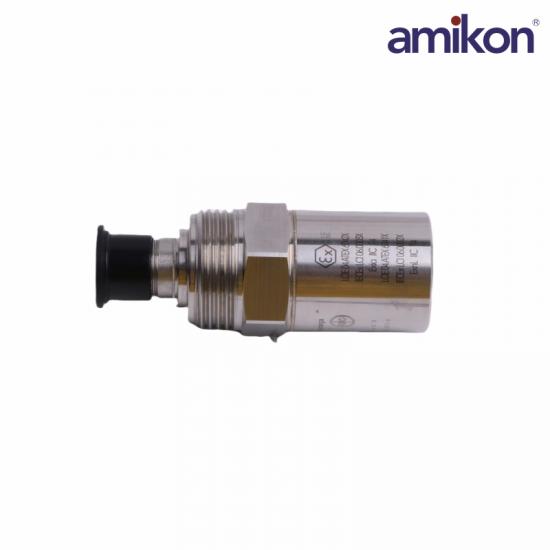

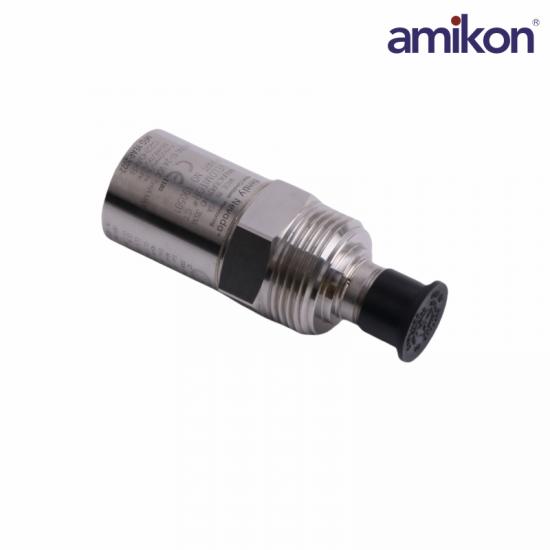

The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).
The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.
Most common machine malfunctions (unbalance, misalignment, etc.) occur on the rotor and originate as an increase (or at least a change) in rotor vibration. For any individual casing measurement to be effective for overall machine protection, the system must continually transmit a significant amount of rotor vibration to the machine casing, or mounting location of the transducer
Frequently Asked Questions
What is the Bently Nevada 190501?
It is a Velomitor CT (Cooling Tower) low-frequency velocity sensor used to measure casing vibration on low-speed machinery.
What is the frequency response range of this sensor?
It typically operates from 1.5 Hz to 1 kHz (+3 dB), optimized specifically for low frequencies.
What is the minimum machinery speed it can monitor?
It is designed for low-speed machinery operating down to 90 rpm (revolutions per minute).
How do I field-test the 190501 sensor?
Check the DC Bias Voltage using a digital multimeter across the signal and common lines. It should read around 10–12 VDC under normal operation.
Product Applications
Oil & Gas: Air cooler fans in large oil refineries and liquefied natural gas (LNG) plants; auxiliary cooling towers for large generating units.
Power Generation: Mechanical draft cooling tower fans in thermal power plants and nuclear power plants; large fan units in condenser air-cooled islands (ACC).
Petrochemical: Large air-cooled heat exchangers in large chemical plants such as those producing ethylene and methanol.
Metallurgy & Heavy Industry: Large industrial cooling towers in the water circulation systems of steel plants.
