Model Number |

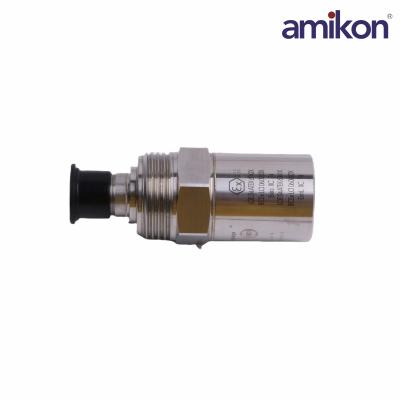

190501-22-99-04 |
|
Mounting Hardware ( 22) |
Adapter, 3/8-in 24 to 3/4-in 14 NPT |
|
Connection Mode ( 99) |
Unit with included 32-foot cable |
|
Certification Approval ( 04) |
CSA/NRTL/C (Class I, Division 1), ATEX/IECEx/CSA (Class I, Zone 0/1) |
|
Shock Limit |
5000 g pk, maximum |
|
Humidity Limit |
100% condensing, non-submerged |
|
Output Bias Voltage |
10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B |
|
Dynamic Output Impedance |
<400 Ω typical |
|
Broadband Noise |
0.229 mm/s (0.009 in/s) pk |

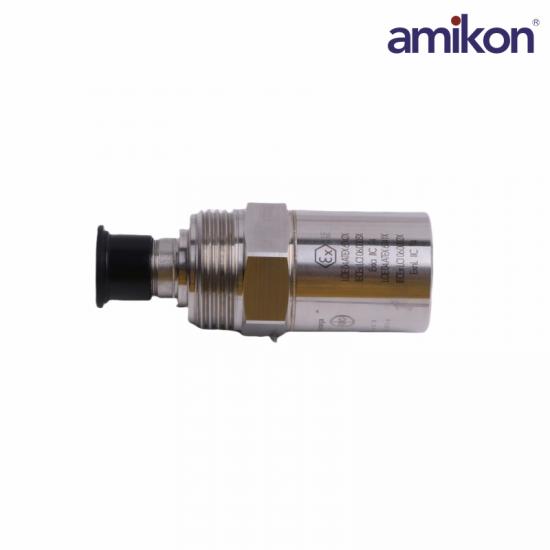

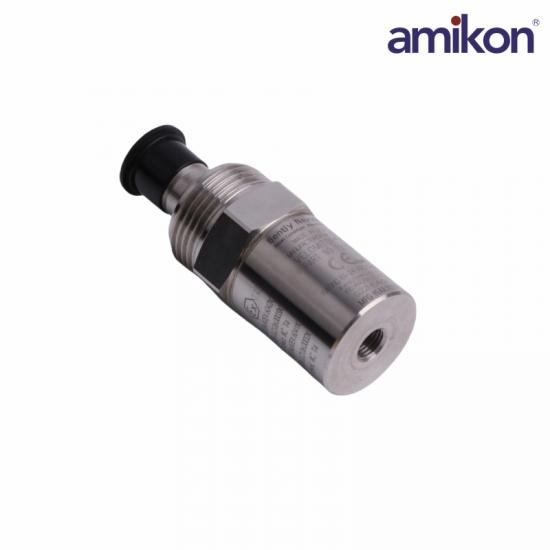

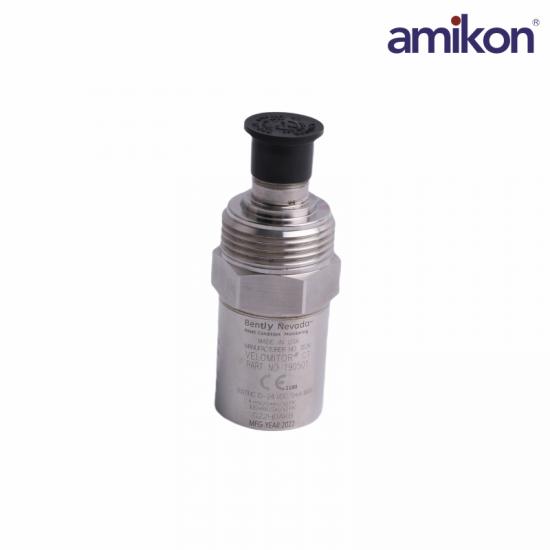

The Velomitor CT Velocity Transducer is a low-frequencyversion of our standard Velomitor Piezo-velocity Sensor. Itsdesign specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).
The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer. In addition, be careful to install the accelerometer transducer on the bearing housing or machine casing. Improper installation may decrease the transducer amplitude and frequency response and/or generate false signals that do not represent actual vibration. Refer to the appropriate instruction manuals and Application Notes.
Frequently Asked Questions
Q : What is the Bently Nevada 190501-22-99-04?
A: It is a heavy-duty, Velomitor CT Low Frequency Casing Vibration Velocity Sensor manufactured by Bently Nevada.
Q : What is the frequency response range of this sensor?
A: It has a frequency response of 3.0 Hz to 900 Hz (±3 dB), specially engineered to capture low-frequency anomalies.
Q : What is the standard scale factor (sensitivity) of the Velomitor CT?
A: The standard sensitivity is 3.94 mV/mm/s (100 mV/in/s) ±5% measured at 100 Hz.
Q : How many wires are required to connect the 190501-22-99-04?
A: It utilizes a 2-wire system (twisted pair) where the same two lines carry both the DC power supply and the AC vibration signal.
Product Applications
Chemical and oil refineries: Widely installed on the fan assembly housings of large cooling tower fans and air-cooled heat exchangers (air coolers).
Power plants (thermal/nuclear): Monitor the vibration of bearing housings or housings of key low-speed auxiliary equipment such as large circulating water pumps, induced draft fans, forced draft fans, and air preheaters.
Metallurgical and cement plants: Deployed on large low-speed transmission systems (such as ball mill reducers and large exhaust fan systems).
Pulp and paper mills: Monitor low-speed, high-torque machinery such as large drying cylinder drive gearboxes and large agitators.
