Model Number |
190501-08-00-CN |
|
Mounting Hardware ( 08) |
Plate Stud 3/8-in 24 to 1/2-in 20 |
|
Connection Option ( 00) |
MIL-C-5015 connection interface |
|
Approval ( CN) |
ATEX/IECEx and Chinese NEPSI hazardous area markings |
|
Operating Range |
3.0 Hz to 900 Hz |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5%. |
|
Broadband |
0.229 mm/s (0.009 in/s) pk. |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F). |

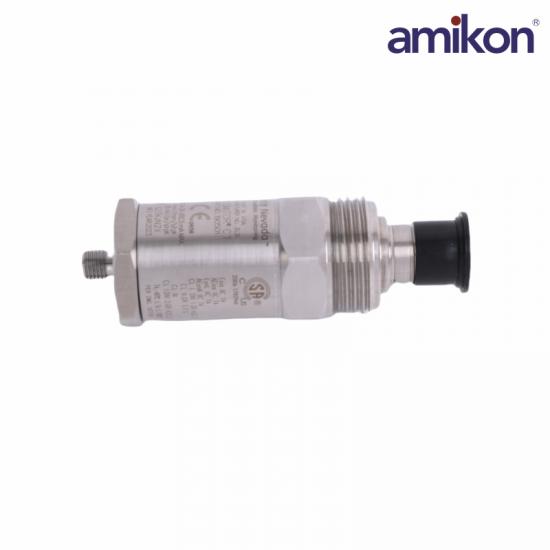

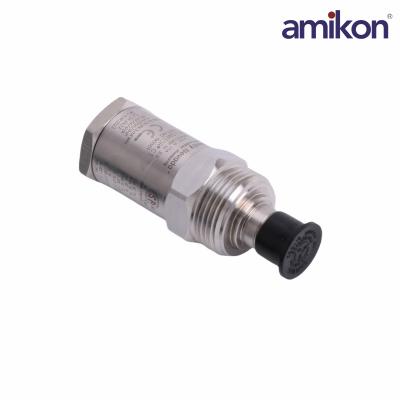

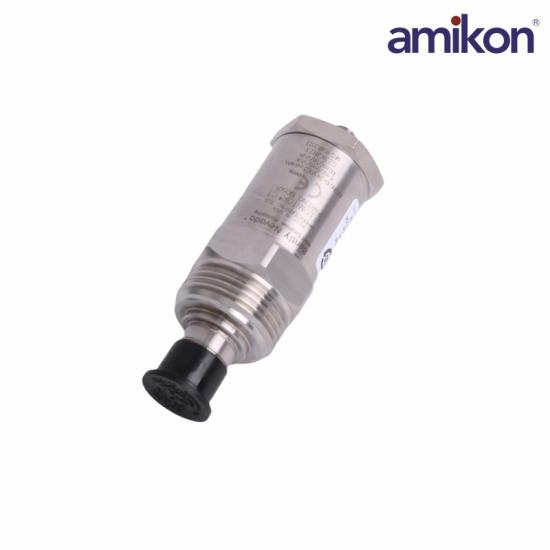

The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).
The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.
In addition, be careful to install the accelerometer transducer on the bearing housing or machine casing. Improper installation may decrease the transducer amplitude and frequency response and/or generate false signals that do not represent actual vibration. Refer to the appropriate instruction manuals and Application Notes.
Upon request, Bently Nevada provides engineering services that can identify the appropriate machine housing measurements and installation assistance if needed.
Frequently Asked Questions
Q1: What is the Bently Nevada 190501-08-00-CN Velocity Transducer used for?
A1: The Bently Nevada 190501-08-00-CN Velocity Transducer is designed to measure casing vibration velocity on rotating machinery. It provides reliable vibration data for machinery protection, condition monitoring, and predictive maintenance applications.
Q2: What mounting hardware is included with Mounting Hardware Option 08?
A2: Mounting Hardware Option 08 includes a plate stud with a 3/8-24 thread to 1/2-20 adapter, allowing secure installation on compatible industrial equipment.
Q3: What is the operating frequency range of the 190501-08-00-CN transducer?
A3: The 190501-08-00-CN transducer has an operating range of 3.0 Hz to 900 Hz, making it suitable for monitoring vibration across a broad range of rotating machinery.
Q4: What is the 190501-08-00-CN sensitivity of the transducer?
A4: The 190501-08-00-CN transducer provides a sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5%, delivering an output voltage proportional to the measured vibration velocity.
Q5: What is the 190501-08-00-CN operating temperature range?
A5: The 190501-08-00-CN operating temperature range is -40°C to +85°C (-40°F to +185°F), ensuring reliable performance in demanding industrial environments.
Product Applications
Power and Energy: Vibration monitoring of cooling tower fans and air-cooled heat exchanger (ACC) components.
Oil and Gas: Condition monitoring of rotating machinery and auxiliary cooling fans in oil refineries.
Chemical and Petrochemical: Protection for large-scale ventilation and heat dissipation equipment operating at speeds above 90 RPM (typical values 100~300 RPM).
Mining and Heavy Industry: Measurement of casing vibration velocity of various fans, gearboxes, and motors under harsh operating conditions.
