Model Number |
190501-22-00-CN |
|
Mounting Hardware (22) |
Adapter, 3/8-in 24 to 3/4-in 14 NPT |
|
Connection (00) |
MIL-C-5015 connection interface |
|
Certification (CN) |
ATEX/IECEx and NEPSI hazardous area approvals |
|
Sensitivity |
3.94 mV/mm/s |
|
Frequency Response |
3.0 Hz ~ 900 Hz |
|
Operating Temperature |
-55°C ~ +121°C |

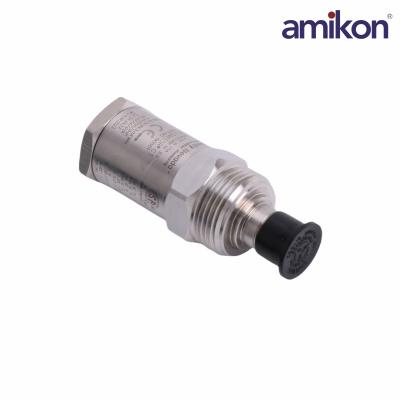

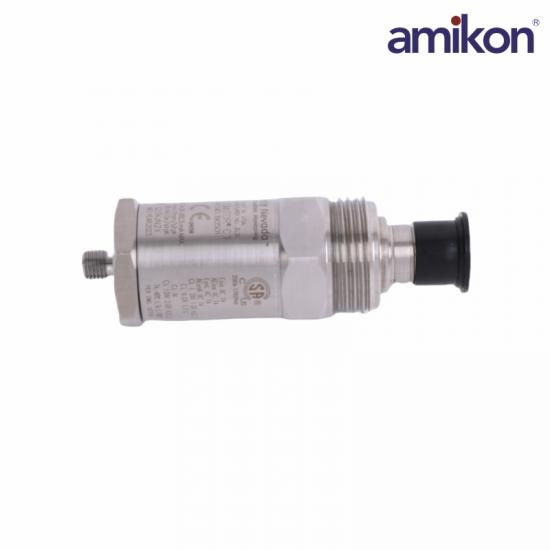

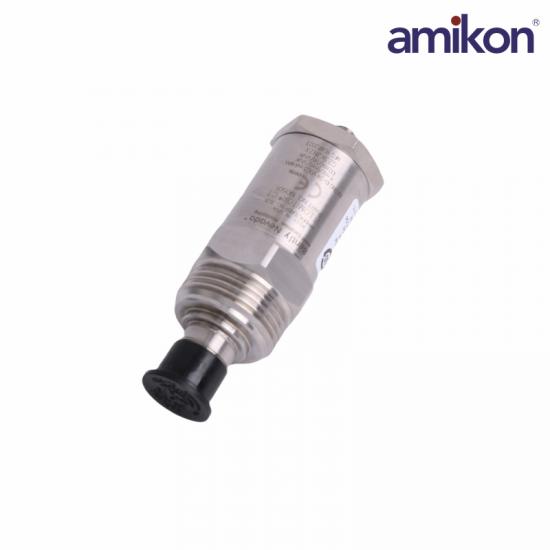

The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).
The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.
In addition, be careful to install the accelerometer transducer on the bearing housing or machine casing. Improper installation may decrease the transducer amplitude and frequency response and/or generate false signals that do not represent actual vibration. Refer to the appropriate instruction manuals and Application Notes.
Upon request, Bently Nevada provides engineering services that can identify the appropriate machine housing measurements and installation assistance if needed.
Frequently Asked Questions
Q1: What is the Bently Nevada 190501-22-00-CN Velocity Transducer used for?
A1: The Bently Nevada 190501-22-00-CN Velocity Transducer is designed to monitor casing vibration on rotating machinery. It provides accurate vibration velocity measurements for machinery protection, condition monitoring, and predictive maintenance applications.
Q2: What mounting hardware is included with Mounting Hardware Option 22?
A2: Mounting Hardware Option 22 includes an adapter with a 3/8-24 thread to 3/4-14 NPT connection, providing flexible installation on compatible industrial equipment.
Q3: What is the frequency response of the 190501-22-00-CN transducer?
A3: The 190501-22-00-CN transducer has a frequency response of 3.0 Hz to 900 Hz, allowing it to accurately detect vibration across a broad range of machinery operating conditions.
Q4: What is the 190501-22-00-CN operating temperature range?
A4: The 190501-22-00-CN operating temperature range is -55°C to +121°C (-67°F to +250°F), making the transducer suitable for both extremely cold and high-temperature industrial environments.
Product Applications
Oil & Gas: Air cooling systems and large-scale cooling water circulation systems in oil refineries and liquefied natural gas (LNG) plants.
Chemical & Petrochemical: Large mechanical equipment and cooling towers in various chemical plants with extremely high temperature control requirements.
Power Generation: Monitoring of circulating cooling tower fans in thermal power plants, nuclear power plants, and district heating systems.
Metallurgy & Heavy Industry: Common cooling equipment in the power workshops of large steel mills or manufacturing enterprises.
