Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooClaim Your Exclusive Savings – Get in Touch with Sales Manager Lisa Lin Now
: +86-18965423501
: sales7@amikon.cn
:AMKPLC
|
Part Number |
190501-16-99-00 |
|
Mounting Hardware 16 |
Adapter, 3/8-in 24 to 3/8-in 24 |
|
Connection 99 |
Unit equipped with 32-foot integrated cable |
|
Agency Approval 00 |
No Approvals |
|
Broadband Noise Floor (1.5 Hz ~ 1 kHz) |
0.229 mm/s (0.009 in/s) pk |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s), tolerance ±5% |
|
Transverse Response |
Less than 5% |
|
Output Bias Voltage |
10.1 Vdc ± 1.0 Vdc |

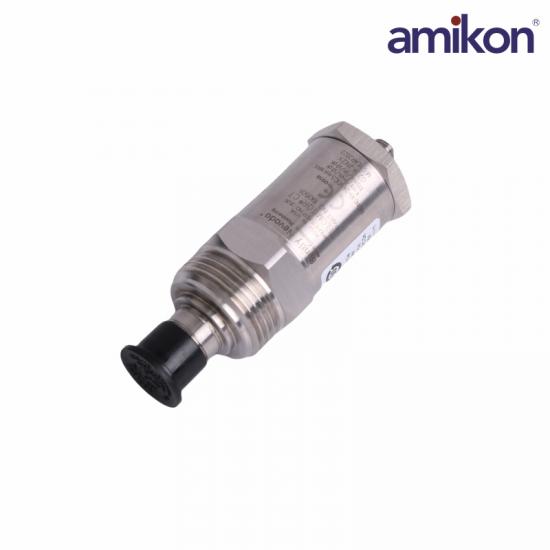

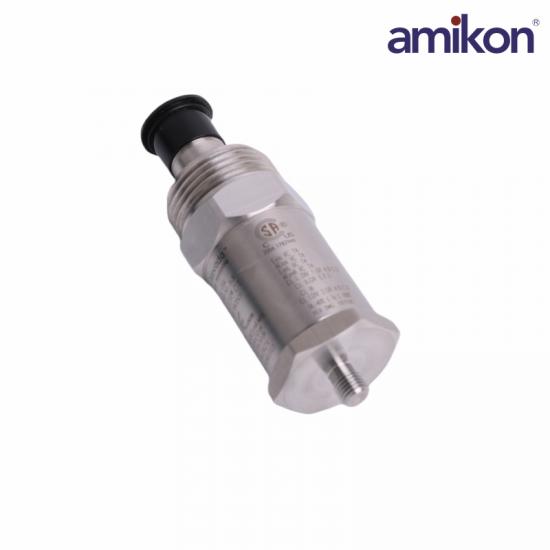

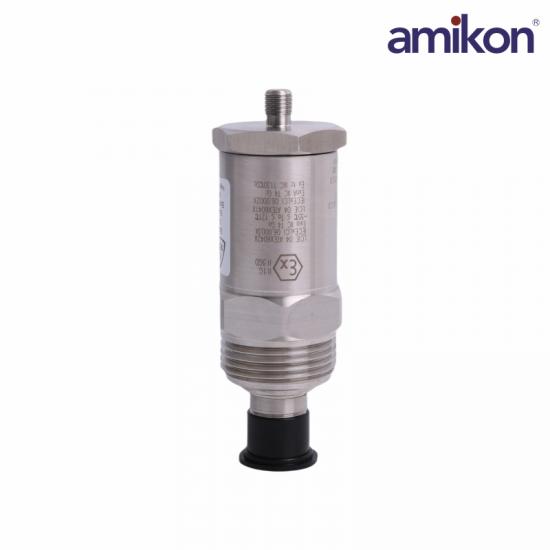

The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.
In addition, be careful to install the accelerometer transducer on the bearing housing or machine casing. Improper installation may decrease the transducer amplitude and frequency response and/or generate false signals that do not represent actual vibration. Refer to the appropriate instruction manuals and Application Notes.
Upon request, Bently Nevada provides engineering services that can identify the appropriate machine housing measurements and installation assistance if needed.
Frequently Asked Questions
Q1: What is the Bently Nevada 190501-16-99-00 Velomitor Velocity Transducer used for?
A1: It is designed to measure casing vibration velocity in rotating machinery for condition monitoring and machinery protection applications.
Q2: What is the typical dynamic output impedance of the 190501-16-99-00 transducer?
A2: The typical dynamic output impedance is less than 400 Ω.
Q3: What is the sensitivity of the 190501-16-99-00 Velomitor transducer?
A3: The 190501-16-99-00 sensitivity is 3.94 mV/mm/s (100 mV/in/s) with a tolerance of ±5%.
Q4: What is the 190501-16-99-00 output bias voltage?
A4: The 190501-16-99-00 output bias voltage is 10.1 Vdc ± 1.0 Vdc.
Q5: What mounting hardware is included with Option 16?
A5: Mounting Hardware Option 16 includes a 3/8-inch 24 to 3/8-inch 24 adapter.
Product Applications
Oil and Gas, Petrochemical Industry: Online vibration monitoring of large air coolers, gas coolers, and heat exchanger fans in refineries and chemical plants to prevent pipeline leaks caused by mechanical fatigue.
Power Energy Industry: Widely used in large mechanical cooling tower fans and condenser air-cooled island fan units in power plants.
Metallurgy and Heavy Industry: Monitoring cooling tower machinery in large industrial circulating water systems to ensure the stability of cooling systems in steel plants or mines under high loads.
