Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooClaim Your Exclusive Savings – Get in Touch with Sales Manager Lisa Lin Now
: +86-18965423501
: sales7@amikon.cn
:AMKPLC
|
Part Number |
190501-17-99-00 |
|
Mounting Hardware 17 |
Adapter, 3/8-in 24 to 3/8-in 16 |
|
Connection 99 |
Unit equipped with 32-foot cable |
|
Agency Approval 00 |
No certification approvals |
|
Minimum Mounted Resonant Frequency |
9 kHz |
|
Output Bias Voltage |
10.1 Vdc ± 1.0 Vdc |
|
Transverse Response |
Less than 5% |
|
Operating Temperature Range |
-40°C ~ +85°C (-40°F ~ +185°F) |
|
Storage Temperature Range |
-40°C ~ +100°C (-40°F ~ +212°F) |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5% |
|
Frequency Response Range |
3.0 Hz ~ 900 Hz |

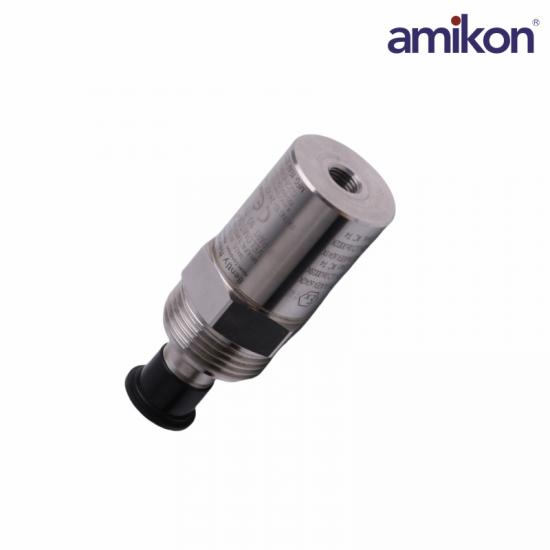

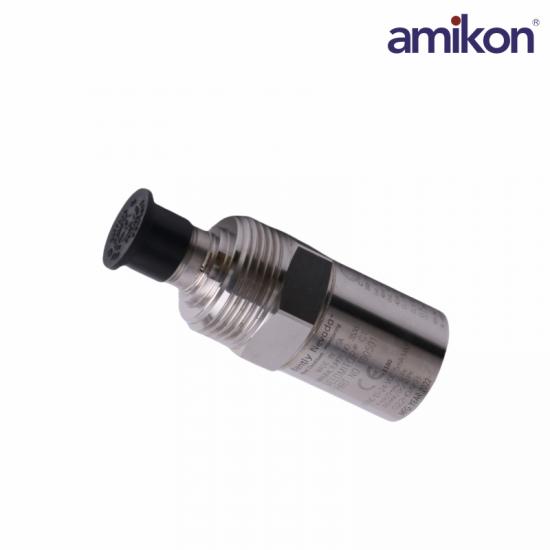

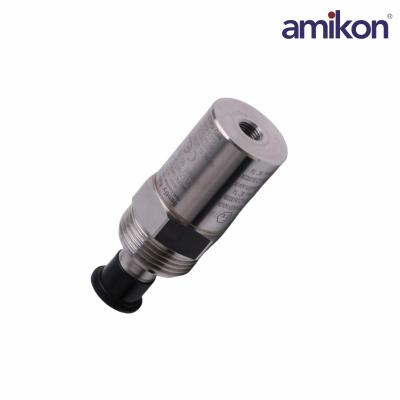

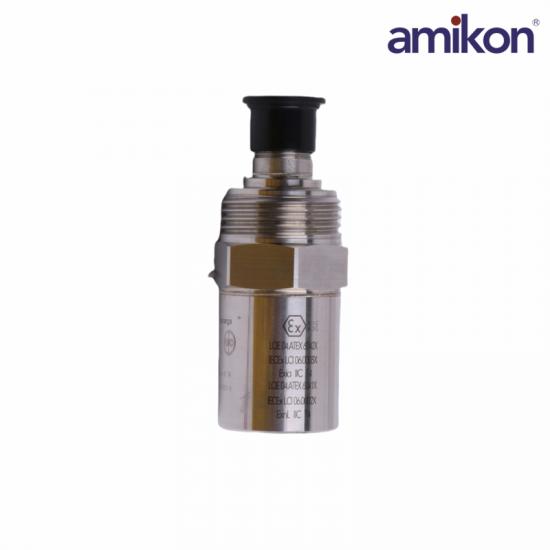

The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.
In addition, be careful to install the accelerometer transducer on the bearing housing or machine casing. Improper installation may decrease the transducer amplitude and frequency response and/or generate false signals that do not represent actual vibration. Refer to the appropriate instruction manuals and Application Notes.
Upon request, Bently Nevada provides engineering services that can identify the appropriate machine housing measurements and installation assistance if needed.
Frequently Asked Questions
Q1: What is the Bently Nevada 190501-17-99-00 Velocity Transducer used for?
A1: It is used to measure vibration velocity in rotating machinery for condition monitoring, predictive maintenance, and machinery protection applications.
Q2: What mounting hardware is included with Option 17?
A2: Mounting Hardware Option 17 includes an adapter with a 3/8-inch 24 thread to 3/8-inch 16 thread conversion.
Q3: What is the minimum mounted resonant frequency of the 190501-17-99-00 transducer?
A3: The 190501-17-99-00 minimum mounted resonant frequency is 9 kHz, ensuring accurate vibration measurements and minimizing resonance effects.
Q4: What is the output bias voltage of the 190501-17-99-00 transducer?
A4: The 190501-17-99-00 output bias voltage is 10.1 Vdc ± 1.0 Vdc.
Q5: What is the frequency response range of the 190501-17-99-00 transducer?
A5: The 190501-17-99-00 frequency response range is 3.0 Hz to 900 Hz, making it suitable for monitoring a broad range of machinery vibration frequencies.
Product Applications
Power Industry: Monitoring the vibration of steam turbines, water turbines, and generator sets.
Petrochemical and Refining: Continuous condition monitoring of air separation units, centrifugal compressors, and blowers in high-risk explosion-proof areas.
Industrial Cooling Equipment: Its low-frequency characteristics make it ideal for measuring large cooling tower fans and air-cooled heat exchangers with speeds down to 90 rpm.
Metallurgy and Heavy Industry: Monitoring critical equipment such as gearboxes and large water pumps in high-vibration environments.
Amikon provide 12 months warranty for all the goods from us.
We have DHL,UPS,TNT,you can use your own freight forwarder for transportation.
Shipped in 3 days after payment
Original packing with cartons.
100% make sure the best quality!
