Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooClaim Your Exclusive Savings – Get in Touch with Sales Manager Lisa Lin Now
: +86-18965423501
: sales7@amikon.cn
:AMKPLC
|
Part Number |
190501-22-99-CN |
|
Mounting Hardware ( 22) |
Adapter, 3/8-in 24 to 3/4-in 14 NPT |
|
Connection Form ( 99) |
Unit with included 32-foot cable |
|
Agency Approval ( CN) |
Country-specific agency approval code |

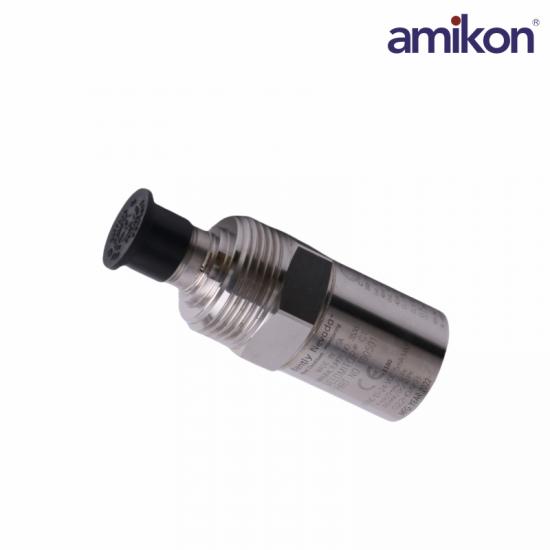

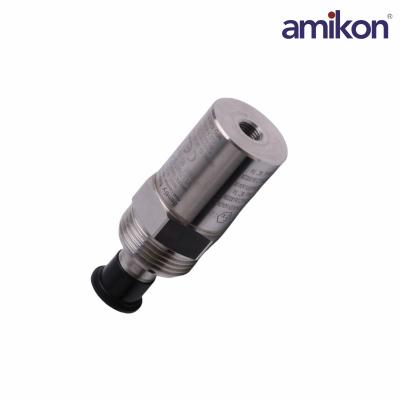

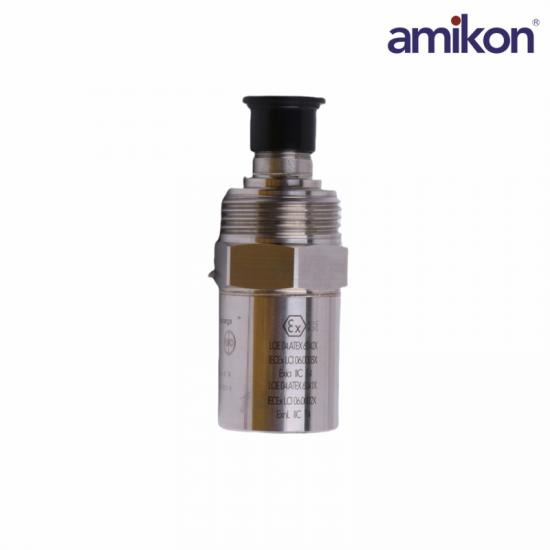

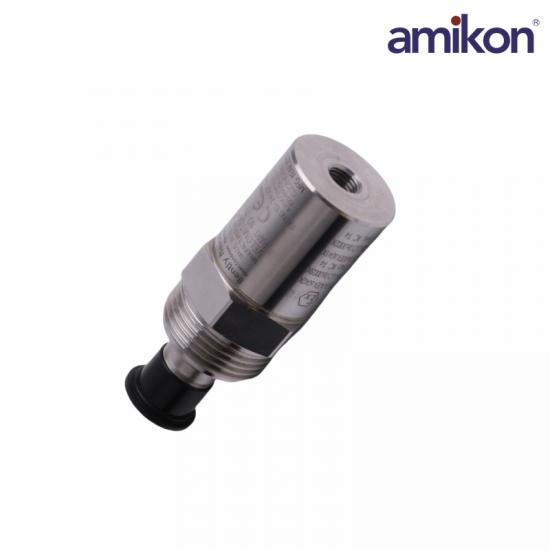

The Velomitor CT Velocity Transducer is a low-frequencyversion of our standard Velomitor Piezo-velocity Sensor. Itsdesign specifically measures casing vibration velocity oncooling tower and air-cooled heat-exchanger fanassemblies that operate at or above 90 rpm (100 to 300 rpmtypical).
The Velomitor CT Transducer can measure vibrationamplitudes at these frequencies as well as the vibrationfrequencies generated by the fan motor and speed reducer.
Frequently Asked Questions
Q : What is the nominal sensitivity of this sensor?
3.94 mV/mm/s (equivalent to 100 mV/in/s) ±5% at a reference frequency of 100 Hz.
Q : What is the qualified frequency response range of the 190501?
3.0 Hz to 900 Hz (±1.0 dB variation) or 1.5 Hz to 1.0 kHz (±3.0 dB variation).
Q : What is the maximum vibration amplitude limit for the sensor?
It can measure velocity amplitudes up to 63.5 mm/s peak (2.5 in/s peak).
Q : What is the rated operating temperature range?
-40°C to +85°C (-40°F to +185°F).
Product Applications
Petrochemical and Refining: Used to monitor the casing vibration of large air-cooled heat exchanger fans, pumps, and cooling tower fans.
Thermal and Nuclear Power Generation: Primarily installed on low-speed equipment such as fans, gearboxes, and circulating water pumps in large mechanical cooling towers at power plants.
Metallurgy and Heavy Industry: Monitors rotating equipment in harsh operating environments with extremely high requirements for waterproofing and corrosion resistance, such as blast furnace cooling system fans and large ventilation fans.
Water and Environmental Engineering: Applied to low-speed mixers, aeration fans, and high-flow water pumps in large sewage treatment plants and pumping stations.
1)All our products are original new with one year warranty.
2)We have DHL,UPS,TNT,FEDEX,ARAMEX,CHIRLINE,you can come to our company to pick up the goods directly.
3)As soon as we receive the payment, I will ship the products immediately.
4)After shipment, you can usually receive the goods within 3-4 days.
5)Original packing with cartons.
6)100% make sure the best quality!
7)We can ship the goods to worldwide.
1. Are your product brand-new and original?
Yes,100% brand-new and original products.
2.How long is the quality guarantee for your products?
All our products with 1 year warranty.
3.When will you delivery the goods?
With stock, we will arrange delivery in about 3 to 5 days; without stock, it will take relatively long time, but it won't be too long, it mainly depends on order quantity.
4.What are your terms of payment?
T/T , 100% advance bank wire transfer
