Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooClaim Your Exclusive Savings – Get in Touch with Sales Manager Lisa Lin Now
: +86-18965423501
: sales7@amikon.cn
:AMKPLC
|
Part Number |
190501-24-99-CN |
|
Mounting Hardware ( 24) |
Adapter: 3/8-24 thread to 1.25 inch 11.5 NPT thread |
|
Connection Form ( 99) |
Sensor equipped with 32-foot integrated cable |
|
Agency Approval ( CN) |
Equipped with China domestic official certification |
|
Amplitude Linearity |
±2% within 63.5 mm/s peak (2.5 in/s peak) |
|
Minimum Mounted Resonant Frequency |
9 kHz |
|
Operating Temperature Range |
-40°C ~ +85°C (-40°F ~ +185°F) |
|
Storage Temperature Range |
-40°C ~ +100°C (-40°F ~ +212°F) |
|
Sensitivity |
3.94 mV/(mm/s) (100 mV/(in/s)), tolerance ±5% |

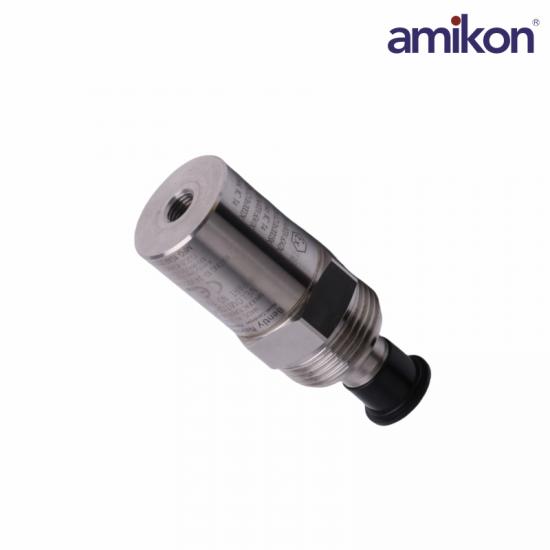

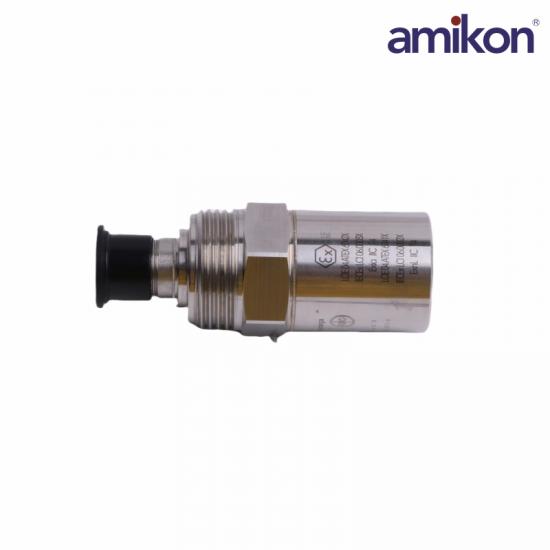

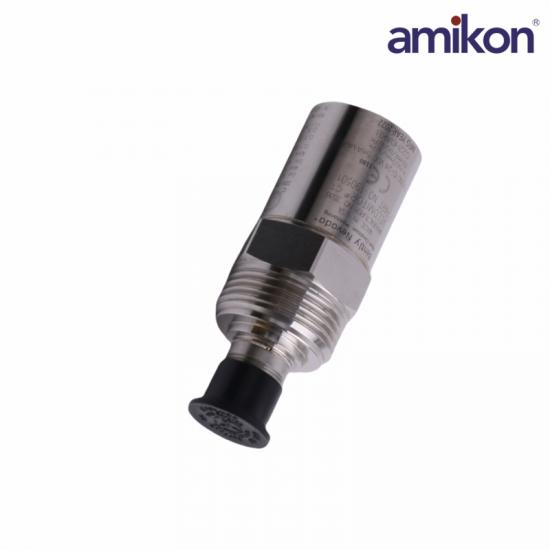

The Velomitor CT Velocity Transducer is a low-frequencyversion of our standard Velomitor Piezo-velocity Sensor. Itsdesign specifically measures casing vibration velocity oncooling tower and air-cooled heat-exchanger fanassemblies that operate at or above 90 rpm (100 to 300 rpmtypical).
The Velomitor CT Transducer can measure vibrationamplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.
Frequently Asked Questions
Q : What is the primary application of the 190501 transducer?
It measures casing vibration velocity on cooling towers (CT) and air-cooled heat exchangers.
Q : What is the standard sensitivity of the 190501?
Its nominal sensitivity is 3.94 mV/mm/s (100 mV/in/s) with a tolerance of ±5%.
Q : What is its rated frequency response range?
It rates at 3.0 Hz to 900 Hz (±1.0 dB) and 1.5 Hz to 1.0 kHz (±3.0 dB).
Q : What is the maximum vibration measurement range?
The maximum measurable peak amplitude limit is 127 mm/s (5 in/s) pk.
Product Applications
Petrochemical and Refinery Plants: Large air-cooled heat exchangers, circulating water cooling tower fans.
Coal and Nuclear Power Plants: Cooling tower fans, large induced draft fans, forced draft fans.
Metallurgical and Large Manufacturing Plants: Centralized water supply cooling tower systems, large low-speed mixers, exhaust fan units.
1)All our products are original new with one year warranty.
2)We have DHL,UPS,TNT,FEDEX,ARAMEX,CHIRLINE,you can come to our company to pick up the goods directly.
3)As soon as we receive the payment, I will ship the products immediately.
4)After shipment, you can usually receive the goods within 3-4 days.
5)Original packing with cartons.
6)100% make sure the best quality!
7)We can ship the goods to worldwide.
1. Are your product brand-new and original?
Yes,100% brand-new and original products.
2.How long is the quality guarantee for your products?
All our products with 1 year warranty.
3.When will you delivery the goods?
With stock, we will arrange delivery in about 3 to 5 days; without stock, it will take relatively long time, but it won't be too long, it mainly depends on order quantity.
4.What are your terms of payment?
T/T , 100% advance bank wire transfer
Amikon sells new and surplus products and develops channels to purchase such products.
This site is not approved or endorsed by any of the listed manufacturers or trademarks.
Amikon is not an authorized distributor, dealer or representative of the products displayed on this site.
All product names, trademarks, brands and logos used on this site are the property of their respective owners.
The description, illustration or sale of products under these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
