Manufacturer : Bently Nevada

Product No :200150-11-05

Product type : Series Accelerometers

Excitation Voltage: 4.7 to 5.5 Vdc

Quiescent Current: <800 µA

Output Bias Voltage: +2.5 ± 0.23 Vdc

Amplitude Linearity (1 to 10g pk): ±2%

Transverse Sensitivity: ≤7%

Temperature Range: -55 ºC to +121 ºC (-67 ºF to +250 ºF)

Cure Time: 24 hours

The 200150 Accelerometer also operates with the Trendmaster 2000 system. The accelerometer interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module), as well as the 1900/25 and 1900/27 monitors.

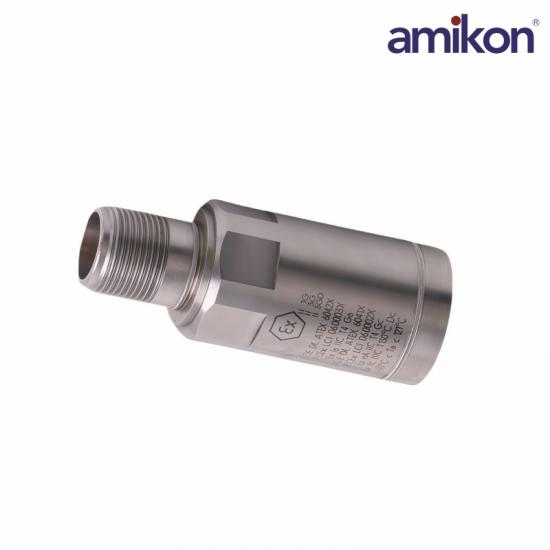

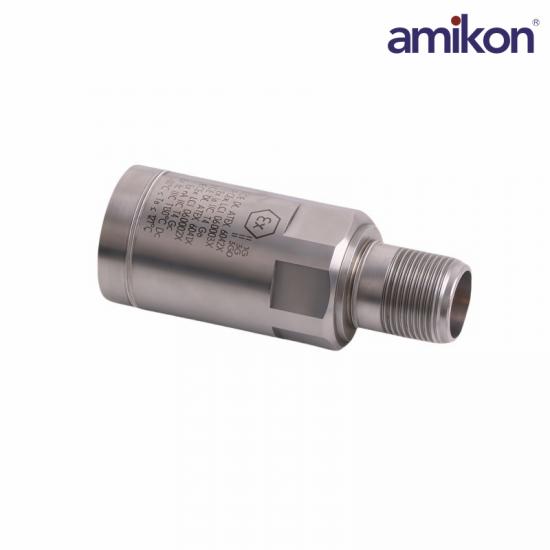

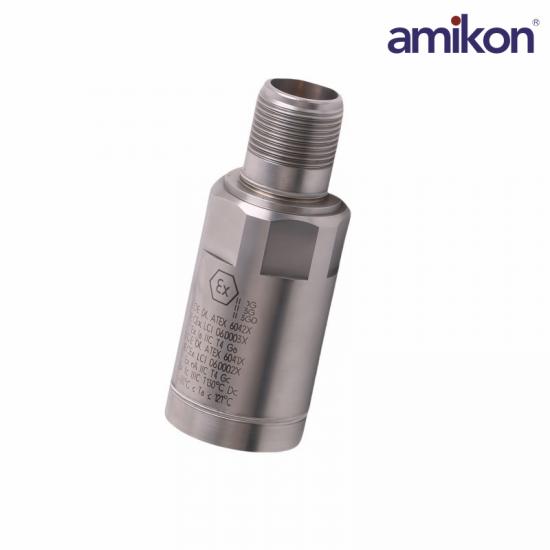

The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows easy installation and removal of the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.

The 20015x Accelerometers contain a piezoelectric sensing device that generates a charge when subjected to vibration. The accelerometers electronically convert this charge into a differential voltage signal proportional to the acceleration parallel to the sensitive axis of the transducer.

Frequently Asked Questions

Q1: What is the 200150-11-05?

A1: The 200150-11-05 is a Bently Nevada series accelerometer, designed for accurate vibration measurement in industrial machinery and condition monitoring systems.

Q2: What is the 200150-11-05 measurement range?

A2: It provides a measurement range of ±245 m/s² (±25 g), suitable for a wide range of vibration levels.

Q3: What is the 200150-11-05 frequency range?

A3: The 200150-11-05 sensor operates within 10 to 1000 Hz (600 to 60,000 cpm), covering typical machinery vibration frequencies.

Q4: What mounting options are available?

A4: It uses a 3/8-24 mounting stud with compatibility to 1-1/4 NPT, and includes a 1-3/4 inch hex stud for secure installation.

Q5: Where is this accelerometer typically used?

A5: It is widely used in motors, pumps, compressors, and turbines, providing reliable vibration monitoring and predictive maintenance.

Product Applications

Electric power industry: Monitoring of large rotating machinery such as steam turbines, generators, fans, and pumps.

Petroleum and natural gas industry: Vibration measurement and fault diagnosis of compressors, pumps, and gearboxes.

Chemical industry: Vibration monitoring of key equipment such as reaction vessels, agitators, and centrifuges.

Metallurgical industry: Operation monitoring of equipment such as fans, motors, and rolling mills.
