Manufacturer : Bently Nevada

Product No :200150-12-05

Product type : Accelerometers

Excitation Voltage: 4.7 to 5.5 Vdc

Quiescent Current: <800 µA

Output Bias Voltage: +2.5 ± 0.23 Vdc

Amplitude Linearity (1 to 10g pk): ±2%

Transverse Sensitivity: ≤7%

Temperature Range: -55 ºC to +121 ºC (-67 ºF to +250 ºF)

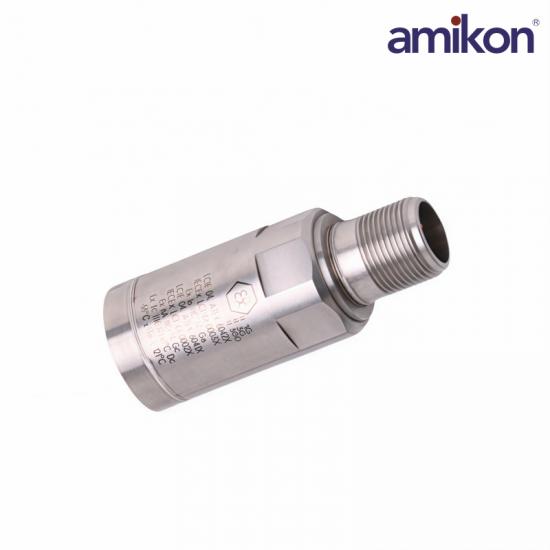

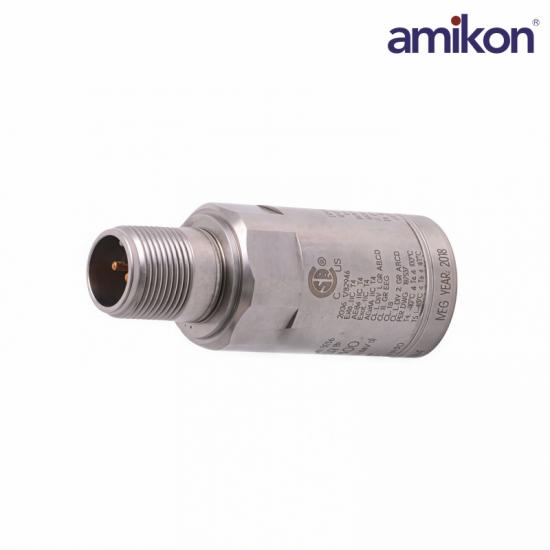

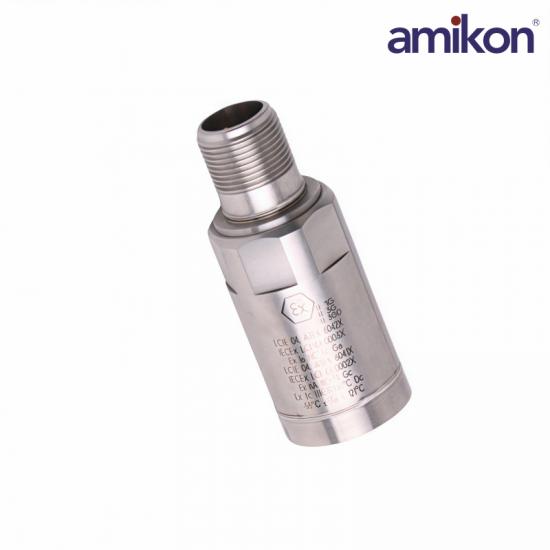

The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows easy installation and removal of the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.

The 20015x Accelerometers contain a piezoelectric sensing device that generates a charge when subjected to vibration. The accelerometers electronically convert this charge into a differential voltage signal proportional to the acceleration parallel to the sensitive axis of the transducer.

Frequently Asked Questions

Q1: What is the Bently Nevada 200150-12-05 Accelerometer used for?

A: It is designed for vibration measurement and condition monitoring of industrial machinery, helping detect imbalance, misalignment, and bearing faults.

Q2: What is the 200150-12-05 required excitation voltage?

A: The sensor operates with an excitation voltage of 4.7 to 5.5 VDC, ensuring stable and accurate signal output.

Q3: What is the 200150-12-05 quiescent current?

A: The quiescent current is less than 800 µA, which allows for low power consumption and efficient operation.

Q4: What is the 200150-12-05 output bias voltage?

A: The accelerometer provides an output bias voltage of +2.5 V ± 0.23 VDC, ensuring consistent signal baseline.

Q5: What is the 200150-12-05 amplitude linearity?

A: It offers ±2% linearity within the 1 to 10 g peak range, delivering reliable and precise vibration measurements.

Product Applications

Oil and gas: Monitoring of large units for refineries and natural gas processing plants.

Electricity industry: Monitoring the vibration status of steam turbines and generators in power plants to prevent mechanical failures.

Chemical plants: Monitoring of various critical production pumps and compressors.

Steel and general manufacturing: Used for preventive maintenance of heavy rotating equipment to ensure the continuous operation of factory production lines.
