BENTLY NEVADA · TRENDMASTER PRO

200155-06-CN

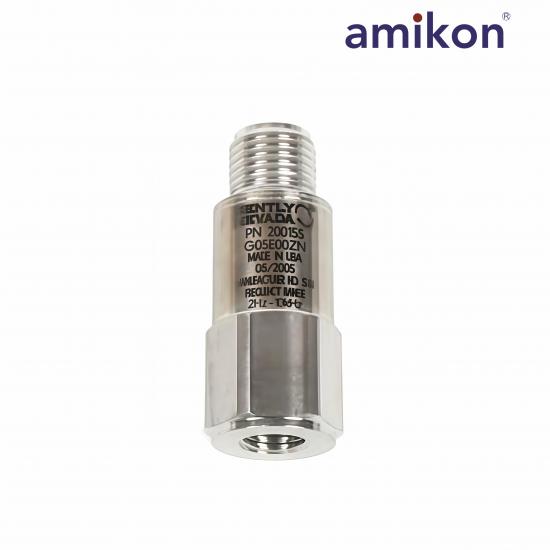

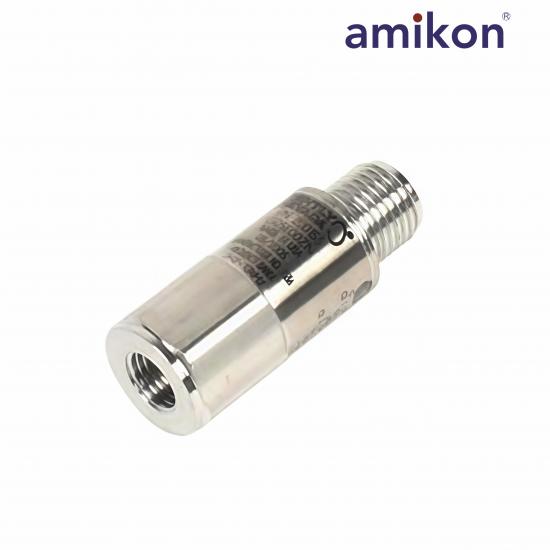

Low-Frequency Trendmaster Pro Accelerometer

The Bently Nevada 200155-06-CN is a low-frequency, case-mounted seismic accelerometer for Trendmaster Pro systems. It is intended for fin-fan and slow-rotating machinery applications where frequencies below 10 Hz are important.

Model200155-06-CN

Product TypeLow-Frequency Accelerometer

DeliveryDHL · FedEx · UPS

Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.

Your AMIKON Contact

MMapleSales Manager

WhatsApp+86 18030132585

Emailsales16@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 200155-06-CN and required quantity.

200155-06-CN

Technical Specifications

Manufacturer-documented identity, electrical, physical and ordering data.

01 Product Identity

MANUFACTURER	Bently Nevada
MODEL	200155-06-CN
SERIES	Trendmaster Pro
PRODUCT TYPE	Low-Frequency Accelerometer

02 Configuration & Performance

SENSITIVITY	100 mV/g at 80 Hz
MEASUREMENT RANGE	±20 g (±196 m/s²)
FREQUENCY RANGE	2.0 to 10,000 Hz
MOUNTED RESONANCE	>20 kHz

03 Electrical Data

EXCITATION VOLTAGE	4.7 to 5.5 V DC
TOP CONNECTOR	5-pin, 1/2-20
QUIESCENT CURRENT	<800 µA
OUTPUT BIAS	+2.5 ±0.23 V DC

04 Physical & Environmental

SIZE	17.5 mm hex × 45.7 mm high
TYPICAL WEIGHT	58 g
OPERATING TEMPERATURE	−40°C to +105°C
HOUSING	316L stainless steel

System matching: Use the 200155 only with compatible low-frequency acceleration-to-velocity channels on a ProTIM, DSM or System 1 system. The manufacturer limits cable length for the 200155 to 15.24 m (50 ft).

Application

Low-speed machinery monitoring

The 200155 measures machinery-casing vibration and is recommended when frequencies below 10 Hz are important. Manufacturer-listed applications include fin fans and slow-rotating shafts; install the sensor on a suitable bearing housing or machine casing.

200155-06-CN

Frequently Asked Questions

What is 200155-06-CN?

It is a Bently Nevada low-frequency Trendmaster Pro accelerometer for case-mounted machinery vibration measurement.

What does mounting option 06 specify?

Option 06 identifies a 3/8-24 to 1/4 NPT mounting stud with a 3/4-inch hex.

What are its measurement and frequency ranges?

The manufacturer specifies ±20 g measurement range and a 2.0-to-10,000-Hz frequency range, referenced to 80 Hz.

Where is the 200155 normally applied?

Bently Nevada lists fin fans and slow-rotating shafts, and recommends the 200155 for frequencies of interest below 10 Hz.

What electrical connection does it use?

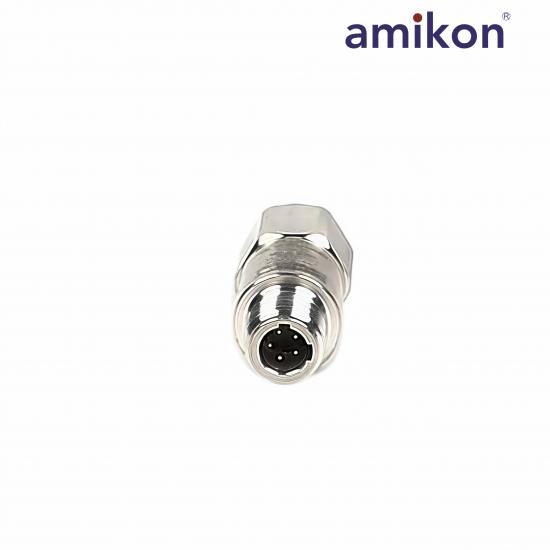

The accelerometer uses a top-mounted 5-pin, 1/2-20 connector and operates from a 4.7-to-5.5-V DC excitation.

What should be checked before replacement?

Confirm the complete ordering code, mounting stud, approval documentation, compatible channel type and total cable length before replacing an installed sensor.
