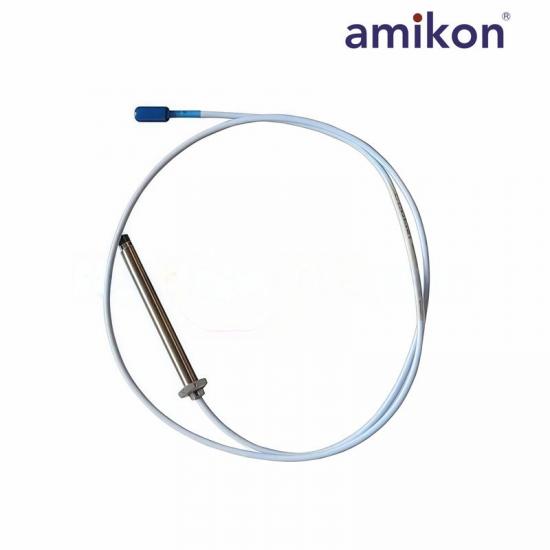

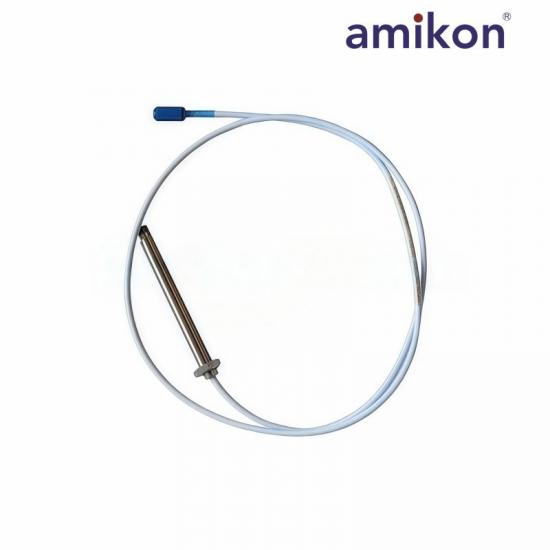

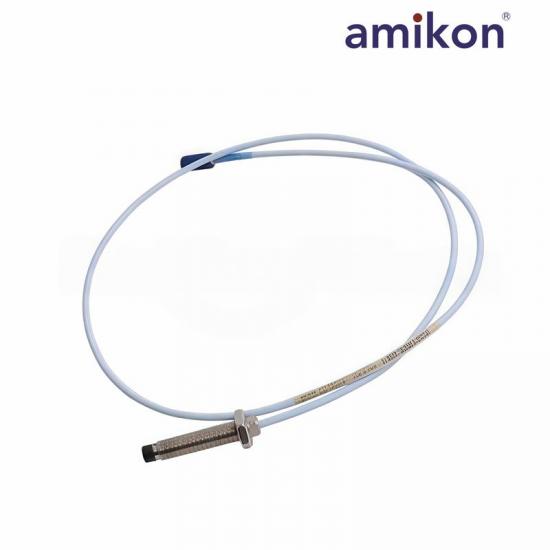

Bently Nevada 330104-00-09-50-02-00 3300 XL 8 mm Proximity Probe

330104-00-09-50-02-00
330104-00-09-50-02-00
330104-00-09-50-02-00

Bently Nevada 330104-00-09-50-02-00 3300 XL 8 mm Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY SYSTEM

330104-00-09-50-02-00

3300 XL 8 mm Proximity Probe

MANUFACTURERBently Nevada
MODEL330104-00-09-50-02-00
PART NUMBER330104-00-09-50-02-00
PRODUCT TYPE3300 XL 8 mm Proximity Probe
SYSTEM FAMILY3300 XL 8 mm Proximity System
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330104-00-09-50-02-00

  • Product Origin:

    USA

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

3300 XL 8 MM · M10 × 1 ARMORED PROBE

330104-00-09-50-02-00

3300 XL 8 mm Proximity Probe

Bently Nevada 330104-00-09-50-02-00 is an armored 3300 XL 8 mm proximity probe with an M10 × 1 thread, 0 mm unthreaded length, 90 mm overall case length and 5.0 m total length. The complete suffix identifies its standard-cable ClickLoc connection and approval option.

Model330104-00-09-50-02-00
Product TypeProximity Probe
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.

Your AMIKON Contact

MMapleSales Manager
WhatsApp+86 18030132585
Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330104-00-09-50-02-00 and required quantity.

330104-00-09-50-02-00

Technical Specifications

Manufacturer-verified 3300 XL 8 mm performance, ordering configuration and mechanical data for the exact 330104-00-09-50-02-00 probe.

01
Product IdentityExact model and system family
ManufacturerBently Nevada
Full model330104-00-09-50-02-00
Base part number330104
Product family3300 XL 8 mm
Product typeProximity probe
02
System Performance3300 XL 8 mm transducer data
MeasurementStatic position and dynamic vibration
Linear range2 mm (80 mil)
Nominal scale factor7.87 V/mm (200 mV/mil)
Frequency response0 to 10 kHz, +0 / −3 dB
Recommended radial gap−9 Vdc; approx. 1.27 mm
03
Target & ConstructionMechanical data
Case threadM10 × 1
Unthreaded length0 mm
Overall case length90 mm
Total probe length5.0 m (16.4 ft)
Probe materialsPPS tip · AISI 303 or 304 stainless steel case
04
Cable & ConnectorProbe lead and installation data
Standard probe cable75 Ω triaxial · FEP insulated
ArmorFlexible AISI 302 or 304 stainless steel · FEP jacket
Connector optionMiniature coaxial ClickLoc · standard cable · no protector
Temperature range−52 to +177 °C (−62 to +350 °F)
Agency approvalOption 00 · not required

330104-00-09-50-02-00 Product Support

Frequently Asked Questions

Compatibility, performance, installation and ordering guidance for the exact 330104-00-09-50-02-00 probe.

01

What configuration is supplied by 330104-00-09-50-02-00?

It is an armored 3300 XL 8 mm probe with an M10 × 1 thread, 0 mm unthreaded length, 90 mm case length, 5.0 m total length, option 02 standard cable without a connector protector and option 00 with no agency approval requested.

02

Which Proximitor Sensor length is compatible with this probe?

Use a 5.0 m 3300 XL Proximitor Sensor. The standard 5.0 m probe is designed for that system length and does not require an extension cable.

03

What response is expected from the complete matched system?

The official data specifies a 2.0 mm (80 mil) linear range, an incremental scale factor of 7.87 V/mm (200 mV/mil) ±5% from 0 °C to +45 °C and a frequency response of 0 to 10 kHz at +0/-3 dB.

04

Is this option suitable where FluidLoc cable is required?

No. Option 02 specifies standard cable and no connector protector. For an application requiring FluidLoc cable or a connector protector, select the corresponding connector-and-cable option rather than treating this model as equivalent.

05

What should be verified for the 90 mm case during configuration?

Confirm the available mounting depth, probe reach and M10 × 1 thread before ordering. The 90 mm case must place the probe tip at the required gap without exceeding the permitted thread engagement.

06

Which installation limits should the technician observe?

Limit M10 thread engagement to 15 mm, avoid excessive cable stress, keep connector torque at or below 0.565 N·m and establish the correct probe gap for the target material and measurement type.

07

Does option 00 provide hazardous-area certification?

No. Option 00 means that no agency approval option was requested. A separately approved ordering option and matching product marking are required where certification applies.
