Model |
200155-21-CN |
|
Mounting Stud Option (21) |
3/8-24 outer diameter to M6x1 inner diameter 1-3/8 inch hex plate stud |
|
Approvals (CN) |
China-specific regulatory approvals |
|
Sensitivity (@ 80 Hz) |
10.2 mV/(m/s²) or 100 mV/g |
|
Frequency Range |
1.5 Hz to 10,000 Hz |
|
Measurement Range |
±196 m/s² (±20 g peak) |
|
Excitation Voltage |
4.7 to 5.5 V DC |
|
Output Bias Voltage |
+2.5 ± 0.23 V DC |
|
Operating Temperature |
-40 °C to +105 °C |
|
Settling Time |
≤2,000 ms (requires low‑frequency A‑to‑V channels) |

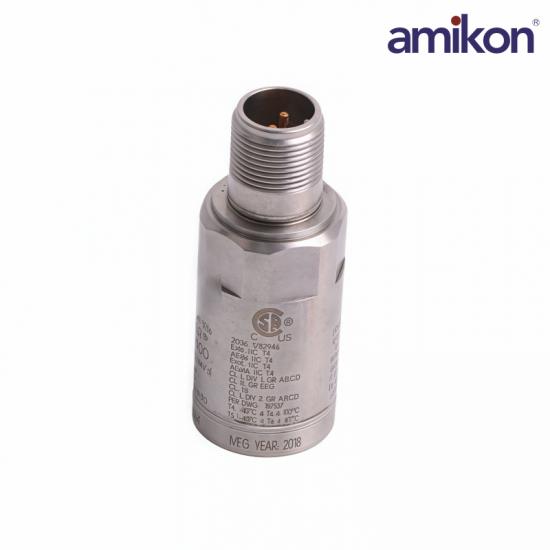

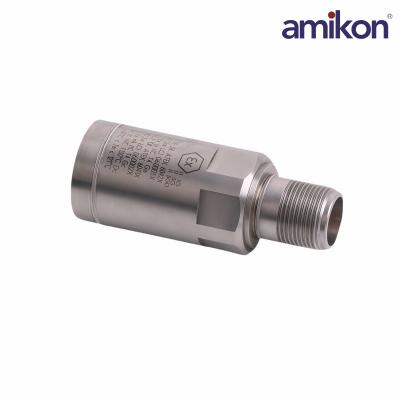

The 20015x Accelerometers feature a hermetically sealed, stainless steel case, providing an extremely rugged design that is well-suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows for easy installation and removal of the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.
The 20015x Accelerometers contain a piezoelectric sensing device that generates a charge when subjected to vibration. These accelerometers electronically convert this charge into a differential voltage signal that is proportional to the acceleration parallel to the sensitive axis of the transducer.
Frequently Asked Questions
Q1: What is the Bently Nevada 200155-21-CN Accelerometer?
A1: It is an industrial vibration accelerometer designed for machinery condition monitoring, used to measure vibration signals in rotating equipment for protection and diagnostics.
Q2: What does the 200155-21-CN mounting stud option “21” indicate?
A2: The “21” option specifies a 3/8-24 outer diameter to M6×1 inner diameter mounting stud with a 1-3/8 inch hex plate stud for secure installation.
Q3: What is the 200155-21-CN output bias voltage?
A3: The 200155-21-CN output bias voltage is +2.5 V DC with a tolerance of ±0.23 V DC.
Q4: What is the 200155-21-CN operating temperature range?
A4: The 200155-21-CN operating temperature range is -40°C to +105°C (-40°F to +221°F).
Q5: What is the 200155-21-CN frequency range of this accelerometer?
A5: The 200155-21-CN frequency range is 1.5 Hz to 10,000 Hz.
Product Applications
Oil & Gas: Control systems used in upstream extraction, midstream transportation, and downstream refining processes.
Chemicals & Petrochemicals: Suitable for complex process control in reactors, fractionation towers, etc.
Hydro & Power: Used for automation control in power plants, turbine control, and power distribution management.
Process Industries: Industries requiring precise sequential control, such as food and beverage, pharmaceutical manufacturing, and metallurgy.
Service: 24/7,Professional team always here to support you.
Warranty:12 month
Delivery time: Shipped in 3 days after payment.
Payment Term: T/T
